CONTROL SYSTEM LOCATION INDEX[ZJ, ZY, Z6]

id0140b1804100

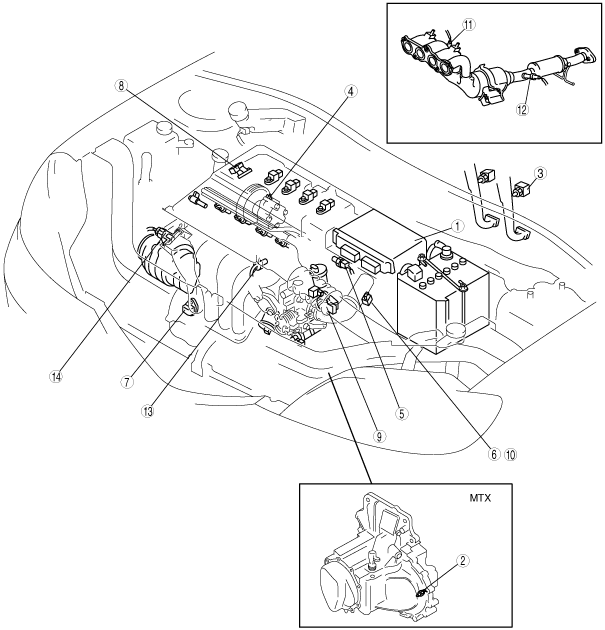

Without Throttle Valve Actuator

am3zzw00000227

1
PCM
(See PCM REMOVAL/INSTALLATION[ZJ, ZY, Z6])
(See PCM INSPECTION[ZJ, ZY, Z6])
(See PCM CONFIGURATION[ZJ, ZY, Z6])
2
Neutral switch (MTX)
(See NEUTRAL SWITCH INSPECTION (MTX)[ZJ, ZY, Z6])
3
CPP switch (MTX)
(See CLUTCH PEDAL POSITION (CPP) SWITCH INSPECTION (MTX)[ZJ, ZY, Z6])
4
PSP switch
(See POWER STEERING PRESSURE (PSP) SWITCH INSPECTION[ZJ, ZY, Z6])
5
ECT sensor
(See ENGINE COOLANT TEMPERATURE (ECT) SENSOR REMOVAL/INSTALLATION[ZJ, ZY, Z6])
(See ENGINE COOLANT TEMPERATURE (ECT) SENSOR INSPECTION[ZJ, ZY, Z6])
6
IAT sensor
(See MASS AIR FLOW (MAF)/INTAKE AIR TEMPERATURE (IAT) SENSOR REMOVAL/INSTALLATION[ZJ, ZY, Z6])
(See INTAKE AIR TEMPERATURE (IAT) SENSOR INSPECTION[ZJ, ZY, Z6])
7
CKP sensor
(See CRANKSHAFT POSITION (CKP) SENSOR REMOVAL/INSTALLATION[ZJ, ZY, Z6])
(See CRANKSHAFT POSITION (CKP) SENSOR INSPECTION[ZJ, ZY, Z6])
8
CMP sensor
(See CAMSHAFT POSITION (CMP) SENSOR REMOVAL/INSTALLATION[ZJ, ZY, Z6])
(See CAMSHAFT POSITION (CMP) SENSOR INSPECTION[ZJ, ZY, Z6])
9
TP sensor
(See THROTTLE POSITION (TP) SENSOR REMOVAL/INSTALLATION[ZJ, ZY, Z6])
(See THROTTLE POSITION (TP) SENSOR INSPECTION[ZJ, ZY, Z6])
10
MAF sensor
(See MASS AIR FLOW (MAF)/INTAKE AIR TEMPERATURE (IAT) SENSOR REMOVAL/INSTALLATION[ZJ, ZY, Z6])
(See MASS AIR FLOW (MAF) SENSOR INSPECTION[ZJ, ZY, Z6])
11
Front HO2S
(See FRONT HEATED OXYGEN SENSOR (HO2S) REMOVAL/INSTALLATION[ZJ, ZY, Z6])
(See FRONT HEATED OXYGEN SENSOR (HO2S) INSPECTION[ZJ, ZY, Z6])
12
Rear HO2S
(See REAR HEATED OXYGEN SENSOR (HO2S) REMOVAL/INSTALLATION[ZJ, ZY, Z6])
(See REAR HEATED OXYGEN SENSOR (HO2S) INSPECTION[ZJ, ZY, Z6])
13
KS
(See KNOCK SENSOR (KS) REMOVAL/INSTALLATION[ZJ, ZY, Z6])
(See KNOCK SENSOR (KS) INSPECTION[ZJ, ZY, Z6])
14
BARO sensor (If equipped)
(See BAROMETRIC PRESSURE (BARO) SENSOR INSPECTION[ZJ, ZY, Z6])


With Throttle Valve Actuator

am3zzw00003413

1
PCM
(See PCM REMOVAL/INSTALLATION[ZJ, ZY, Z6])
(See PCM INSPECTION[ZJ, ZY, Z6])
(See PCM CONFIGURATION[ZJ, ZY, Z6])
2
Variable tumble shutter valve switch
(See VARIABLE TUMBLE SHUTTER VALVE SWITCH REMOVAL/INSTALLATION[ZJ, ZY, Z6].)
(See VARIABLE TUMBLE SHUTTER VALVE SWITCH INSPECTION[ZJ, ZY, Z6].)
3
Neutral switch (MTX)
(See NEUTRAL SWITCH INSPECTION (MTX)[ZJ, ZY, Z6])
4
CPP switch (MTX)
(See CLUTCH PEDAL POSITION (CPP) SWITCH INSPECTION (MTX)[ZJ, ZY, Z6])
5
ECT sensor
(See ENGINE COOLANT TEMPERATURE (ECT) SENSOR REMOVAL/INSTALLATION[ZJ, ZY, Z6])
(See ENGINE COOLANT TEMPERATURE (ECT) SENSOR INSPECTION[ZJ, ZY, Z6])
6
IAT sensor
(See MASS AIR FLOW (MAF)/INTAKE AIR TEMPERATURE (IAT) SENSOR REMOVAL/INSTALLATION[ZJ, ZY, Z6])
(See INTAKE AIR TEMPERATURE (IAT) SENSOR INSPECTION[ZJ, ZY, Z6])
7
MAF sensor
(See MASS AIR FLOW (MAF)/INTAKE AIR TEMPERATURE (IAT) SENSOR REMOVAL/INSTALLATION[ZJ, ZY, Z6])
(See INTAKE AIR TEMPERATURE (IAT) SENSOR INSPECTION[ZJ, ZY, Z6])
8
CKP sensor
(See CRANKSHAFT POSITION (CKP) SENSOR REMOVAL/INSTALLATION[ZJ, ZY, Z6])
(See CRANKSHAFT POSITION (CKP) SENSOR INSPECTION[ZJ, ZY, Z6])
9
CMP sensor
(See CAMSHAFT POSITION (CMP) SENSOR REMOVAL/INSTALLATION[ZJ, ZY, Z6])
(See CAMSHAFT POSITION (CMP) SENSOR INSPECTION[ZJ, ZY, Z6])
10
TP sensor
(See THROTTLE POSITION (TP) SENSOR REMOVAL/INSTALLATION[ZJ, ZY, Z6])
(See THROTTLE POSITION (TP) SENSOR INSPECTION[ZJ, ZY, Z6])
11
APP sensor
(See ACCELERATOR PEDAL POSITION (APP) SENSOR INSPECTION[ZJ, ZY, Z6].)
12
Front HO2S
(See FRONT HEATED OXYGEN SENSOR (HO2S) REMOVAL/INSTALLATION[ZJ, ZY, Z6])
(See FRONT HEATED OXYGEN SENSOR (HO2S) INSPECTION[ZJ, ZY, Z6])
13
Rear HO2S
(See REAR HEATED OXYGEN SENSOR (HO2S) REMOVAL/INSTALLATION[ZJ, ZY, Z6])
(See REAR HEATED OXYGEN SENSOR (HO2S) INSPECTION[ZJ, ZY, Z6])
14
MAP sensor
(See MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR INSPECTION[ZJ, ZY, Z6].)
15
KS
(See KNOCK SENSOR (KS) REMOVAL/INSTALLATION[ZJ, ZY, Z6])
(See KNOCK SENSOR (KS) INSPECTION[ZJ, ZY, Z6])
16
Current sensor
(See CURRENT SENSOR REMOVAL/INSTALLATION[ZJ, ZY, Z6]
.) (See CURRENT SENSOR INSPECTION[ZJ, ZY, Z6].)
