FRONT DRAIN HOSE REMOVAL/INSTALLATION

id091500443800

4SD

Driver-side

L.H.D.

1.  Set the wheel blocks for both the front and rear wheels (without electric parking brake).

2.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [MZR 1.6].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 1.5].)

3.  Shift the selector lever from the P position to the D position (ATX).

4.  Remove the following parts:

1.  Sunroof seaming welt (See SUNROOF UNIT REMOVAL/INSTALLATION.)

2.  A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)

3.  Sunvisor (See SUNVISOR REMOVAL/INSTALLATION.)

4.  Front map light (with sunglasses holder) (See FRONT MAP LIGHT REMOVAL/INSTALLATION.)

5.  Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION.)

6.  Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

7.  Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

8.  B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)

9.  Adjust anchor cover (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

10.  Upper anchor installation bolt on the seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

11.  B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION.)

12.  C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION.)

13.  Upper panel (See UPPER PANEL REMOVAL.) (See UPPER PANEL INSTALLATION.)

14.  Rear console (See REAR CONSOLE REMOVAL/INSTALLATION.)

15.  Shift lever knob (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [F35M-R].) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [C66M-R].) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [D66M-R].) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [F66M-R].)

16.  Selector lever knob (ATX) (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION.)

17.  Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)

18.  Front console box (without electric parking brake) (See FRONT CONSOLE BOX REMOVAL/INSTALLATION.)

19.  CD player (with CD player) (See CD PLAYER REMOVAL.) (See CD PLAYER INSTALLATION.)

20.  DVD/CD player (with DVD/CD player) (See DVD/CD PLAYER REMOVAL.) (See DVD/CD PLAYER INSTALLATION.)

21.  Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

22.  Decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

23.  Side wall (See SIDE WALL REMOVAL/INSTALLATION.)

24.  Front console (See FRONT CONSOLE REMOVAL/INSTALLATION.)

25.  Headliner (See HEADLINER REMOVAL/INSTALLATION.)

5.  Remove the bolts.

am3zzw00020036

6.  Set the dashboard lower insulator aside.

7.  Remove the nuts.

8.  Remove the dash gusset.

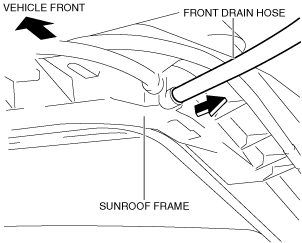

9.  Disconnect the front drain hose from the sunroof frame.

am3zzw00020037

10.  Spread hook A in the directions of arrows (1), pull the front drain hose in the direction of arrow (2), and remove it from hook A.

am3zzw00020038

11.  Remove the front drain hose in the direction of arrow (3) from hooks B.

12.  Spread hook C in the directions of arrows (4), pull the front drain hose in the direction of arrow (5), and remove it from hook C.

13.  Remove the front drain hose in the direction of arrow (1) from the grommet.

am3zzw00020039

14.  Remove the grommet in the directions of arrows (2), (3) shown in the figure.

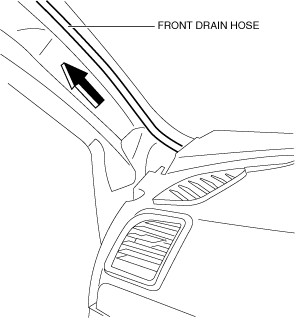

15.  Pull the front drain hose out from the A-pillar side.

am3zzw00020040

16.  Install in the reverse order of removal.

R.H.D.

1.  Set the wheel blocks for both the front and rear wheels (without electric parking brake).

2.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [MZR 1.6].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 1.5].)

3.  Shift the selector lever from the P position to the D position (ATX).

4.  Remove the following parts:

1.  Sunroof seaming welt (See SUNROOF UNIT REMOVAL/INSTALLATION.)

2.  A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)

3.  Sunvisor (See SUNVISOR REMOVAL/INSTALLATION.)

4.  Front map light (with sunglasses holder) (See FRONT MAP LIGHT REMOVAL/INSTALLATION.)

5.  Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION.)

6.  Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

7.  Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

8.  B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)

9.  Adjust anchor cover (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

10.  Upper anchor installation bolt on the seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

11.  B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION.)

12.  C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION.)

13.  Upper panel (See UPPER PANEL REMOVAL.) (See UPPER PANEL INSTALLATION.)

14.  Rear console (See REAR CONSOLE REMOVAL/INSTALLATION.)

15.  Shift lever knob (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [F35M-R].) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [C66M-R].) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [D66M-R].) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [F66M-R].)

16.  Selector lever knob (ATX) (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION.)

17.  Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)

18.  Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION.)

19.  CD player (with CD player) (See CD PLAYER REMOVAL.) (See CD PLAYER INSTALLATION.)

20.  DVD/CD player (with DVD/CD player) (See DVD/CD PLAYER REMOVAL.) (See DVD/CD PLAYER INSTALLATION.)

21.  Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

22.  Decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

23.  Side wall (See SIDE WALL REMOVAL/INSTALLATION.)

24.  Front console (without electric parking brake) (See FRONT CONSOLE REMOVAL/INSTALLATION.)

25.  Headliner (See HEADLINER REMOVAL/INSTALLATION.)

26.  Tuner and amp unit (TAU) (with TAU) (See TUNER AND AMP UNIT (TAU) REMOVAL/INSTALLATION.)

27.  TAU bracket (with TAU) (See TUNER AND AMP UNIT (TAU) REMOVAL/INSTALLATION.)

28.  Bluetooth^® unit component (with Bluetooth^® system) (See Bluetooth® UNIT REMOVAL/INSTALLATION.)

5.  Remove the bolts.

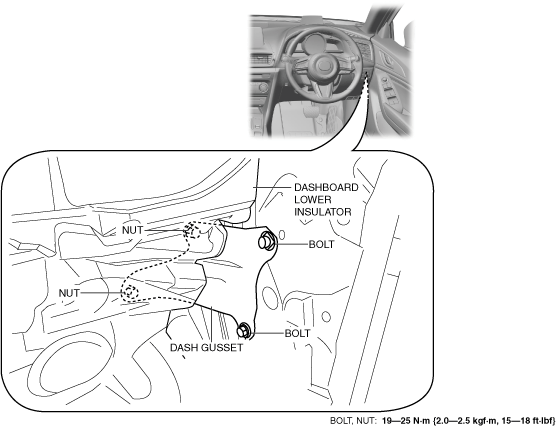

am3zzw00020041

6.  Set the dashboard lower insulator aside.

7.  Remove the nuts.

8.  Remove the dash gusset.

9.  Disconnect the front drain hose from the sunroof frame.

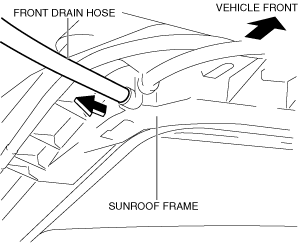

am3zzw00020042

10.  Spread hook A in the directions of arrows (1), pull the front drain hose in the direction of arrow (2), and remove it from hook A.

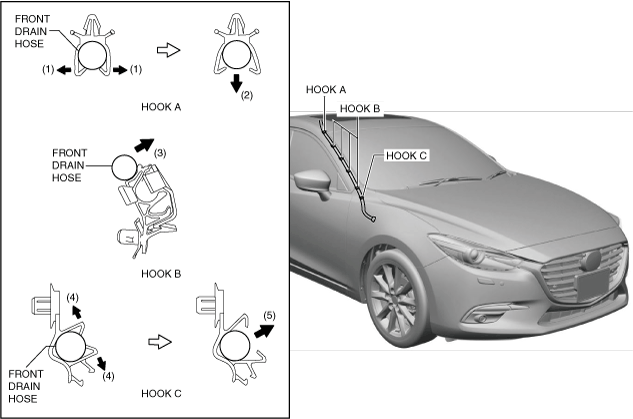

am3zzw00020043

11.  Remove the front drain hose in the direction of arrow (3) from hooks B.

12.  Spread hook C in the directions of arrows (4), pull the front drain hose in the direction of arrow (5), and remove it from hook C.

13.  Remove the front drain hose in the direction of arrow (1) from the grommet.

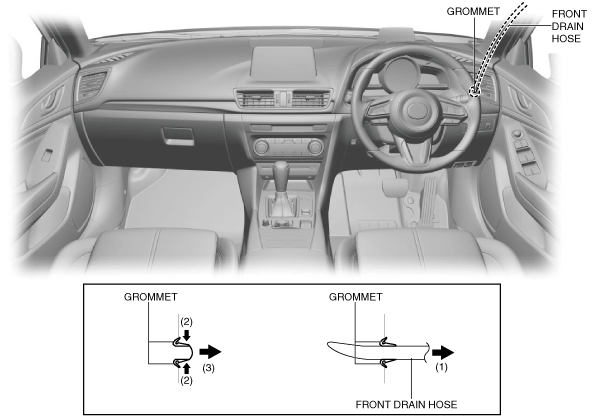

am3zzw00020044

14.  Remove the grommet in the directions of arrows (2), (3) shown in the figure.

15.  Pull the front drain hose out from the A-pillar side.

am3zzw00020045

16.  Install in the reverse order of removal.

Passenger-side

1.  Set the wheel blocks for both the front and rear wheels (without electric parking brake).

2.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [MZR 1.6].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 1.5].)

3.  Shift the selector lever from the P position to the D position (ATX).

4.  Remove the following parts:

(1)  Sunroof seaming welt (See SUNROOF UNIT REMOVAL/INSTALLATION.)

(2)  A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)

(3)  Sunvisor (See SUNVISOR REMOVAL/INSTALLATION.)

(4)  Front map light (dual light type) (See FRONT MAP LIGHT REMOVAL/INSTALLATION.)

(5)  Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION.)

(6)  Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(7)  Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

(8)  B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)

(9)  Adjust anchor cover (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

(10)  Upper anchor installation bolt on the seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

(11)  B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION.)

(12)  C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION.)

(13)  Upper panel (See UPPER PANEL REMOVAL.) (See UPPER PANEL INSTALLATION.)

(14)  Rear console (See REAR CONSOLE REMOVAL/INSTALLATION.)

(15)  Shift lever knob (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [F35M-R].) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [C66M-R].) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [D66M-R].) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [F66M-R].)

(16)  Selector lever knob (ATX) (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION.)

(17)  Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)

(18)  Front console box (without electric parking brake) (See FRONT CONSOLE BOX REMOVAL/INSTALLATION.)

(19)  CD player (with CD player) (See CD PLAYER REMOVAL.) (See CD PLAYER INSTALLATION.)

(20)  DVD/CD player (with DVD/CD player) (See DVD/CD PLAYER REMOVAL.) (See DVD/CD PLAYER INSTALLATION.)

(21)  Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

(22)  Decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(23)  Side wall (See SIDE WALL REMOVAL/INSTALLATION.)

(24)  Front console (See FRONT CONSOLE REMOVAL/INSTALLATION.)

(25)  Headliner (See HEADLINER REMOVAL/INSTALLATION.)

(26)  Tuner and amp unit (TAU) (with TAU) (L.H.D.) (See TUNER AND AMP UNIT (TAU) REMOVAL/INSTALLATION.)

(27)  TAU bracket (with TAU) (L.H.D.) (See TUNER AND AMP UNIT (TAU) REMOVAL/INSTALLATION.)

(28)  Bluetooth^® unit component (with Bluetooth^® system) (L.H.D.) (See Bluetooth® UNIT REMOVAL/INSTALLATION.)

5.  Disconnect the front drain hose from the sunroof frame.

am3zzw00017343

6.  Spread hook A in the directions of arrows (1), pull the front drain hose in the direction of arrow (2), and remove it from hook A.

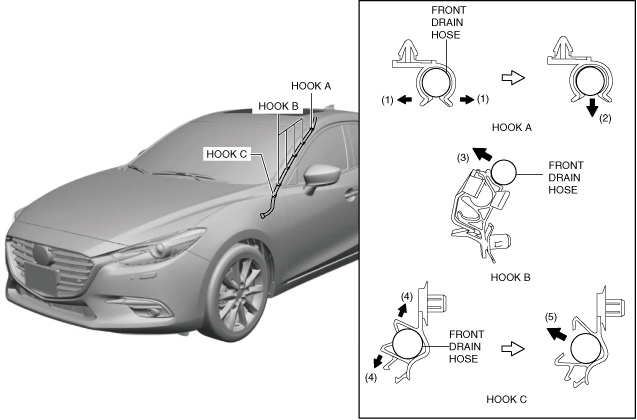

am3zzw00020046

7.  Remove the front drain hose in the direction of arrow (3) from hooks B.

8.  Spread hook C in the directions of arrows (4), pull the front drain hose in the direction of arrow (5), and remove it from hook C.

9.  Remove the front drain hose in the direction of arrow (1) from the grommet.

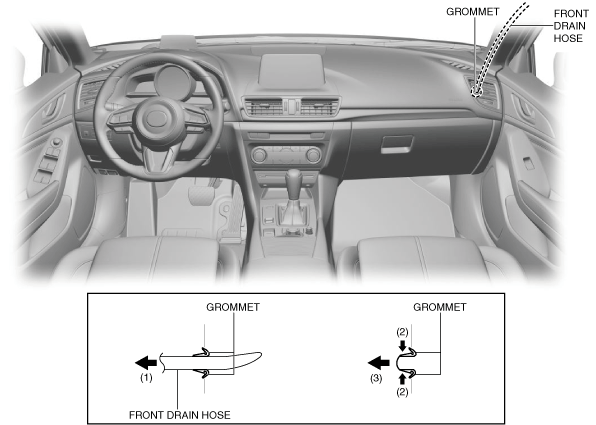

am3zzw00020047

10.  Remove the grommet in the directions of arrows (2), (3) shown in the figure.

11.  Pull the front drain hose out from the A-pillar side.

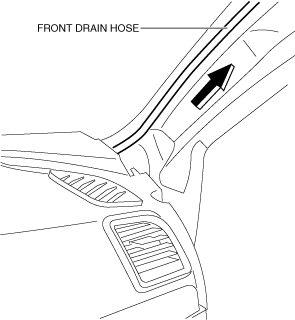

am3zzw00020048

12.  Install in the reverse order of removal.

5HB

Driver-side

1.  Set the wheel blocks for both the front and rear wheels (without electric parking brake).

2.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [MZR 1.6].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 1.5].)

3.  Shift the selector lever from the P position to the D position (ATX).

4.  Remove the following parts:

(1)  Sunroof seaming welt (See SUNROOF UNIT REMOVAL/INSTALLATION.)

(2)  A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)

(3)  Sunvisor (See SUNVISOR REMOVAL/INSTALLATION.)

(4)  Front map light (dual light type) (See FRONT MAP LIGHT REMOVAL/INSTALLATION.)

(5)  Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION.)

(6)  Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(7)  Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

(8)  B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)

(9)  Adjust anchor cover (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

(10)  Upper anchor installation bolt on the seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

(11)  B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION.)

(12)  Rear package tray (See REAR PACKAGE TRAY REMOVAL/INSTALLATION.)

(13)  Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION.)

(14)  Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION.)

(15)  Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)

(16)  Trunk side upper trim (See TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION.)

(17)  Trunk side trim (LH only) (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)

(18)  C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION.)

(19)  Upper panel (See UPPER PANEL REMOVAL.) (See UPPER PANEL INSTALLATION.)

(20)  Rear console (See REAR CONSOLE REMOVAL/INSTALLATION.)

(21)  Shift lever knob (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [F35M-R].) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [C66M-R].) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [D66M-R].) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [F66M-R].)

(22)  Selector lever knob (ATX) (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION.)

(23)  Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)

(24)  Front console box (without electric parking brake) (See FRONT CONSOLE BOX REMOVAL/INSTALLATION.)

(25)  CD player (with CD player) (See CD PLAYER REMOVAL.) (See CD PLAYER INSTALLATION.)

(26)  DVD/CD player (with DVD/CD player) (See DVD/CD PLAYER REMOVAL.) (See DVD/CD PLAYER INSTALLATION.)

(27)  Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

(28)  Decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(29)  Side wall (See SIDE WALL REMOVAL/INSTALLATION.)

(30)  Front console (See FRONT CONSOLE REMOVAL/INSTALLATION.)

(31)  Headliner (See HEADLINER REMOVAL/INSTALLATION.)

(32)  Tuner and amp unit (TAU) (with TAU) (R.H.D.) (See TUNER AND AMP UNIT (TAU) REMOVAL/INSTALLATION.)

(33)  TAU bracket (with TAU) (R.H.D.) (See TUNER AND AMP UNIT (TAU) REMOVAL/INSTALLATION.)

(34)  Bluetooth^® unit component (with Bluetooth^® system) (R.H.D.) (See Bluetooth® UNIT REMOVAL/INSTALLATION.)

5.  Remove the bolts.

am3zzw00020036

6.  Set the dashboard lower insulator aside.

7.  Remove the nuts.

8.  Remove the dash gusset.

9.  Disconnect the front drain hose from the sunroof frame.

am3zzw00020049

10.  Spread hook A in the directions of arrows (1), pull the front drain hose in the direction of arrow (2), and remove it from hook A.

am3zzw00020050

11.  Remove the front drain hose in the direction of arrow (3) from hooks B.

12.  Spread hook C in the directions of arrows (4), pull the front drain hose in the direction of arrow (5), and remove it from hook C.

13.  Remove the front drain hose in the direction of arrow (1) from grommet.

am3zzw00020039

14.  Remove the grommet in the directions of arrows (2), (3) shown in the figure.

15.  Pull the front drain hose out from the A-pillar side.

am3zzw00020040

16.  Install in the reverse order of removal.

Passenger-side

1.  Set the wheel blocks for both the front and rear wheels (without electric parking brake).

2.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [MZR 1.6].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 1.5].)

3.  Shift the selector lever from the P position to the D position (ATX).

4.  Remove the following parts:

(1)  Sunroof seaming welt (See SUNROOF UNIT REMOVAL/INSTALLATION.)

(2)  A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)

(3)  Sunvisor (See SUNVISOR REMOVAL/INSTALLATION.)

(4)  Front map light (dual light type) (See FRONT MAP LIGHT REMOVAL/INSTALLATION.)

(5)  Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION.)

(6)  Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(7)  Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

(8)  B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)

(9)  Adjust anchor cover (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

(10)  Upper anchor installation bolt on the seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

(11)  B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION.)

(12)  Rear package tray (See REAR PACKAGE TRAY REMOVAL/INSTALLATION.)

(13)  Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION.)

(14)  Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION.)

(15)  Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)

(16)  Trunk side upper trim (See TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION.)

(17)  Trunk side trim (LH only) (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)

(18)  C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION.)

(19)  Upper panel (See UPPER PANEL REMOVAL.) (See UPPER PANEL INSTALLATION.)

(20)  Rear console (See REAR CONSOLE REMOVAL/INSTALLATION.)

(21)  Shift lever knob (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [F35M-R].) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [C66M-R].) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [D66M-R].) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [F66M-R].)

(22)  Selector lever knob (ATX) (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION.)

(23)  Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)

(24)  Front console box (without electric parking brake) (See FRONT CONSOLE BOX REMOVAL/INSTALLATION.)

(25)  CD player (with CD player) (See CD PLAYER REMOVAL.) (See CD PLAYER INSTALLATION.)

(26)  DVD/CD player (with DVD/CD player) (See DVD/CD PLAYER REMOVAL.) (See DVD/CD PLAYER INSTALLATION.)

(27)  Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

(28)  Decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(29)  Side wall (See SIDE WALL REMOVAL/INSTALLATION.)

(30)  Front console (See FRONT CONSOLE REMOVAL/INSTALLATION.)

(31)  Headliner (See HEADLINER REMOVAL/INSTALLATION.)

(32)  Tuner and amp unit (TAU) (with TAU) (L.H.D.) (See TUNER AND AMP UNIT (TAU) REMOVAL/INSTALLATION.)

(33)  TAU bracket (with TAU) (L.H.D.) (See TUNER AND AMP UNIT (TAU) REMOVAL/INSTALLATION.)

(34)  Bluetooth^® unit component (with Bluetooth^® system) (L.H.D.) (See Bluetooth® UNIT REMOVAL/INSTALLATION.)

5.  Disconnect the front drain hose from the sunroof frame.

am3zzw00017343

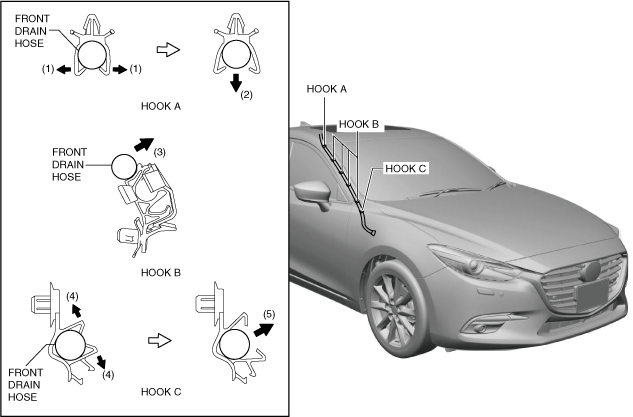

6.  Spread hook A in the directions of arrows (1), pull the front drain hose in the direction of arrow (2), and remove it from hook A.

am3zzw00020051

7.  Remove the front drain hose in the direction of arrow (3) from hooks B.

8.  Spread hook C in the directions of arrows (4), pull the front drain hose in the direction of arrow (5), and remove it from hook C.

9.  Remove the front drain hose in the direction of arrow (1) from the grommet.

am3zzw00020047

10.  Remove the grommet in the directions of arrows (2), (3) shown in the figure.

11.  Pull the front drain hose out from the A-pillar side.

am3zzw00020048

12.  Install in the reverse order of removal.
