DASHBOARD REMOVAL

id091700850000

Warning

•  Handling the air bag module improperly can accidentally operate (deploy) the air bag module, which may seriously injure you. Read the service warnings and cautions before handling the air bag module. (See AIR BAG SYSTEM SERVICE WARNINGS.) (See AIR BAG SYSTEM SERVICE CAUTIONS.)

Note

•  If the ignition is switched off from ON (engine off or on) with the driver's door open, the steering lock operation can be temporarily released.

1.  Switch the ignition off.

2.  Disconnect the negative battery cable and wait for 1 min or more. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [MZR 1.6].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 1.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)

3.  Set the wheel blocks for both the front and rear wheels (without electric parking brake).

4.  Shift the selector lever from the P position to the D position (ATX).

5.  Remove the following parts:

(1)  Windshield wiper arm and blade (See WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION.)

(2)  Cowl grille (See COWL GRILLE REMOVAL/INSTALLATION.)

(3)  Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(4)  Front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(5)  A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)

(6)  Driver-side air bag module (See DRIVER-SIDE AIR BAG MODULE REMOVAL.)

(7)  Steering wheel (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION.)

(8)  Upper column cover (See COLUMN COVER REMOVAL/INSTALLATION.)

(9)  Meter hood (See METER HOOD REMOVAL/INSTALLATION.)

(10)  Lower column cover (See COLUMN COVER REMOVAL/INSTALLATION.)

(11)  Instrument cluster (See INSTRUMENT CLUSTER REMOVAL/INSTALLATION.)

(12)  Upper panel (See UPPER PANEL REMOVAL.)

(13)  Rear console (See REAR CONSOLE REMOVAL/INSTALLATION.)

(14)  Shift lever knob (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [F35M-R].) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [C66M-R].) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [D66M-R].) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [F66M-R].)

(15)  Selector lever knob (ATX) (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION.)

(16)  Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)

(17)  Front console box (without electric parking brake) (See FRONT CONSOLE BOX REMOVAL/INSTALLATION.)

(18)  CD player (with CD player) (See CD PLAYER REMOVAL.)

(19)  DVD/CD player (with DVD/CD player) (See DVD/CD PLAYER REMOVAL.)

(20)  Side wall (See SIDE WALL REMOVAL/INSTALLATION.)

(21)  Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

(22)  Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION.)

(23)  Decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(24)  Passenger-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION.)

(25)  Front console (See FRONT CONSOLE REMOVAL/INSTALLATION.)

(26)  Climate control unit (See CLIMATE CONTROL UNIT REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].) (See CLIMATE CONTROL UNIT REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER].)

(27)  Center display (with center display) (See CENTER DISPLAY REMOVAL/INSTALLATION.)

(28)  Audio unit (without center display) (See AUDIO UNIT REMOVAL/INSTALLATION.)

(29)  Bonnet release lever (See BONNET RELEASE LEVER AND RELEASE CABLE REMOVAL/INSTALLATION.)

(30)  Fuel-filler lid opener lever (See FUEL-FILLER LID OPENER AND LEVER REMOVAL/INSTALLATION.)

(31)  Driver-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION.)

(32)  Joint cover (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION.)

(33)  Steering shaft (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION.)

(34)  Shift lever component (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [F35M-R].) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [C66M-R].) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [D66M-R].) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [F66M-R].)

(35)  Selector lever component (ATX) (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION.)

(36)  Electric parking brake control module (with electric parking brake) (See ELECTRIC PARKING BRAKE CONTROL MODULE REMOVAL/INSTALLATION.)

(37)  Electric parking brake control module bracket (with electric parking brake) (See SAS CONTROL MODULE REMOVAL/INSTALLATION.)

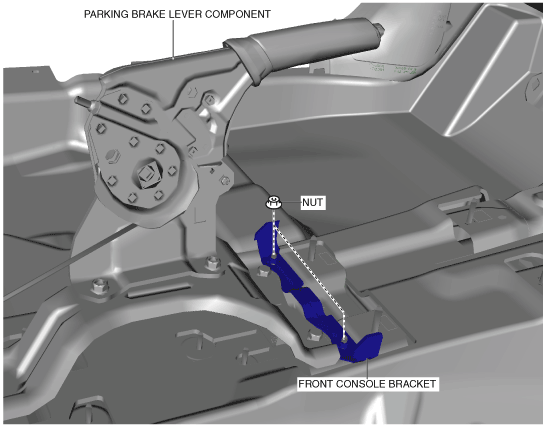

6.  Remove the nuts.

am3zzw00016866

7.  Remove the front console bracket.

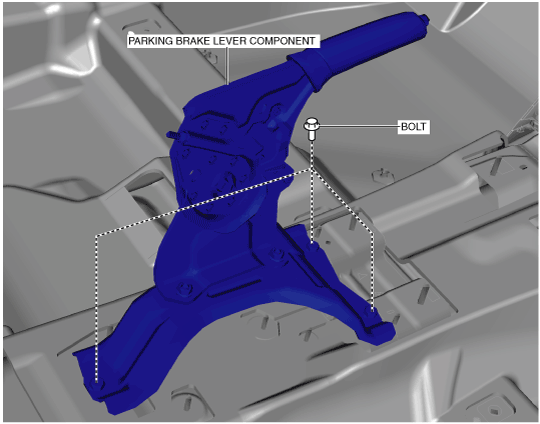

8.  Remove the bolts (without electric parking brake).

am3uuw00011525

9.  Remove the parking brake lever component (without electric parking brake).

10.  Disconnect the dashboard harness connectors and remove the wiring harness clips.

11.  Remove the bolts and nuts shown in the figure.

am3uuw00010912

12.  Remove the dashboard bracket.

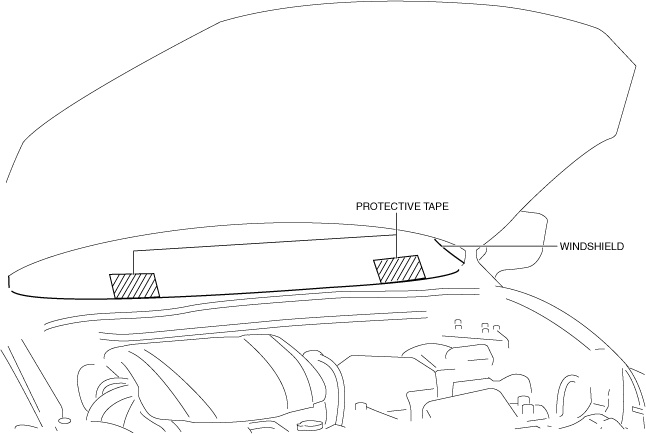

13.  To prevent scratches or damage, affix protective tape to the position shown in the figure of the windshield.

am3zzw00020140

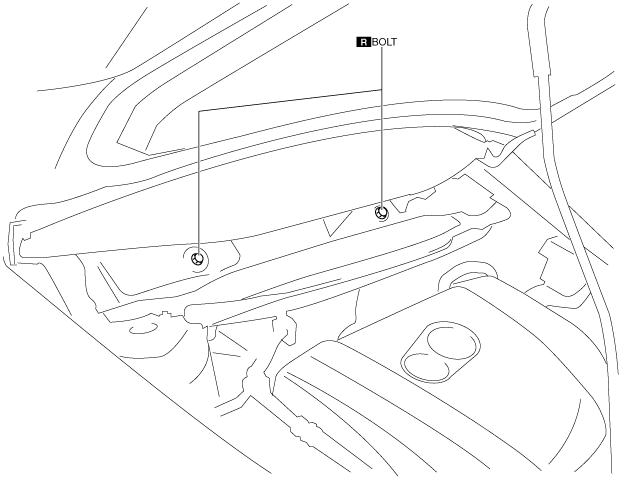

14.  Remove the bolts.

am3uuw00010913

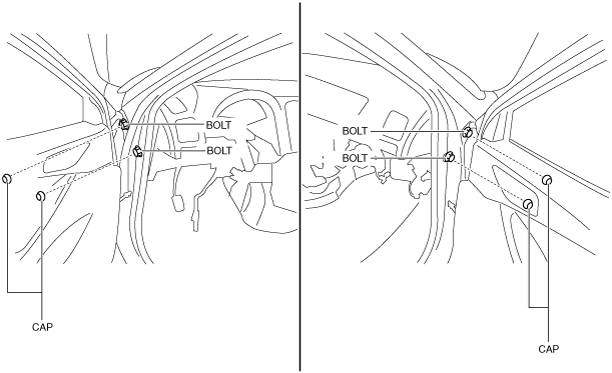

15.  Remove the caps, then remove the bolts.

am3zzw00016867

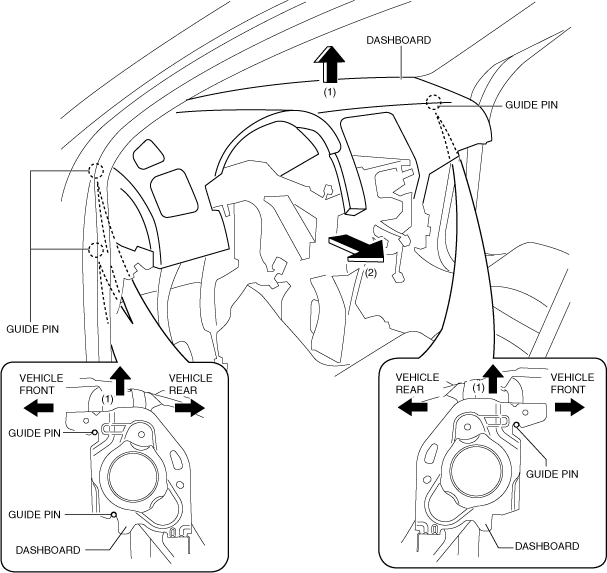

16.  Move the dashboard in the direction of the arrows in the order of (1), (2) shown in the figure, then remove the guide pins.

am3zzw00020755

17.  Turn the dashboard 90° in the direction of the arrow shown in the figure.

am3zzw00018500

18.  Take the dashboard off from the front driver-side door or front passenger-side door opening.
