FRONT MAP LIGHT INSPECTION

id091800808600


Single Light Type

Note
•  The front map light can be removed without having to remove the headliner from the vehicle.

1.  Perform the following procedure.

4SD
1.  Set the wheel blocks for both the front and rear wheels (without electric parking brake).
2.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [MZR 1.6].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 1.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)
3.  Shift the selector lever from the P position to the D position (ATX).
4.  Remove the following parts:
(1) Sunroof seaming welt (with sunroof system) (See SUNROOF UNIT REMOVAL/INSTALLATION.)
(2) A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)
(3) Sunvisor (See SUNVISOR REMOVAL/INSTALLATION.)
(4) Front map light (dual light type) (See FRONT MAP LIGHT REMOVAL/INSTALLATION.)
(5) Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION.)
(6) Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)
(7) Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)
(8) B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)
(9) Adjust anchor cover (See FRONT SEAT BELT REMOVAL/INSTALLATION.)
(10) Upper anchor installation bolt on the seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)
(11) B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION.)
(12) C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION.)
(13) Upper panel (See UPPER PANEL REMOVAL.) (See UPPER PANEL INSTALLATION.)
(14) Rear console (See REAR CONSOLE REMOVAL/INSTALLATION.)
(15) Shift lever knob (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [F35M-R].) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [C66M-R].) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [D66M-R].) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [F66M-R].)
(16) Selector lever knob (ATX) (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION.)
(17) Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)
(18) Front console box (without electric parking brake) (See FRONT CONSOLE BOX REMOVAL/INSTALLATION.)
(19) CD player (with CD player) (See CD PLAYER REMOVAL.) (See CD PLAYER INSTALLATION.)
(19) DVD/CD player (with DVD/CD player) (See DVD/CD PLAYER REMOVAL.) (See DVD/CD PLAYER INSTALLATION.)
(21) Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)
(22) Decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)
(23) Side wall (See SIDE WALL REMOVAL/INSTALLATION.)
(24) Front console (See FRONT CONSOLE REMOVAL/INSTALLATION.)
5.  Remove the shift lever nuts and set the shift lever aside to the front passenger-side to rotate the headliner in the vehicle. (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [F35M-R].) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [C66M-R].) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [D66M-R].) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [F66M-R].)
6.  Remove the selector lever nuts and set the selector lever aside to the front passenger-side to rotate the headliner in the vehicle. (ATX) (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION.)
7.  Remove the headliner. (See HEADLINER REMOVAL/INSTALLATION.)
4SD
1.  Set the wheel blocks for both the front and rear wheels (without electric parking brake).
2.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [MZR 1.6].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 1.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)
3.  Shift the selector lever from the P position to the D position (ATX).
4.  Remove the following parts:
(1) Sunroof seaming welt (with sunroof system) (See SUNROOF UNIT REMOVAL/INSTALLATION.)
(2) A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)
(3) Sunvisor (See SUNVISOR REMOVAL/INSTALLATION.)
(4) Front map light (dual light type) (See FRONT MAP LIGHT REMOVAL/INSTALLATION.)
(5) Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION.)
(6) Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)
(7) Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)
(8) B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)
(9) Adjust anchor cover (See FRONT SEAT BELT REMOVAL/INSTALLATION.)
(10) Upper anchor installation bolt on the seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)
(11) B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION.)
(12) Rear package tray (See REAR PACKAGE TRAY REMOVAL/INSTALLATION.)
(13) Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION.)
(14) Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION.)
(15) Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)
(16) Trunk side upper trim (See TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION.)
(17) Trunk side trim (LH only) (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)
(18) C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION.)
(19) Upper panel (See UPPER PANEL REMOVAL.) (See UPPER PANEL INSTALLATION.)
(14) Rear console (See REAR CONSOLE REMOVAL/INSTALLATION.)
(21) Shift lever knob (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [F35M-R].) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [C66M-R].) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [D66M-R].) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [F66M-R].)
(22) Selector lever knob (ATX) (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION.)
(23) Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)
(24) Front console box (without electric parking brake) (See FRONT CONSOLE BOX REMOVAL/INSTALLATION.)
(25) CD player (with CD player) (See CD PLAYER REMOVAL.) (See CD PLAYER INSTALLATION.)
(26) DVD/CD player (with DVD/CD player) (See DVD/CD PLAYER REMOVAL.) (See DVD/CD PLAYER INSTALLATION.)
(27) Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)
(28) Decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)
(29) Side wall (See SIDE WALL REMOVAL/INSTALLATION.)
(30) Front console (See FRONT CONSOLE REMOVAL/INSTALLATION.)
5.  Remove the shift lever nuts and set the shift lever aside to the front passenger-side to rotate the headliner in the vehicle. (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [F35M-R].) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [C66M-R].) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [D66M-R].) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [F66M-R].)
6.  Remove the selector lever nuts and set the selector lever aside to the front passenger-side to rotate the headliner in the vehicle. (ATX) (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION.)
7.  Remove the headliner. (See HEADLINER REMOVAL/INSTALLATION.)

2.  Remove the front map light. (See FRONT MAP LIGHT REMOVAL/INSTALLATION.)

3.  Verify that the continuity between the front map light terminals is as indicated in the table.

am3uuw00010466
am3uuw00010467

•  If not as indicated in the table, replace the front map light bulb or front map light. (See FRONT MAP LIGHT BULB REMOVAL/INSTALLATION.) (See FRONT MAP LIGHT REMOVAL/INSTALLATION.)


Dual Light Type


Front map light switch

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [MZR 1.6].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)(See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 1.5].)

2.  Remove the front map light. (See FRONT MAP LIGHT REMOVAL/INSTALLATION.)

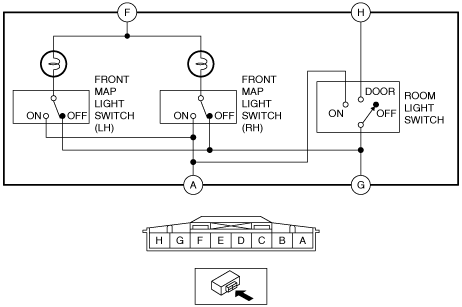

3.  Verify that the continuity between the front map light terminals is as indicated in the table.

am3zzw00019410
am3uuw00010469

•  If not as indicated in the table, replace the front map light bulb or the front map light. (See FRONT MAP LIGHT BULB REMOVAL/INSTALLATION.) (See FRONT MAP LIGHT REMOVAL/INSTALLATION.)


Room light switch

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [MZR 1.6].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)(See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 1.5].)

2.  Remove the front map light. (See FRONT MAP LIGHT REMOVAL/INSTALLATION.)

3.  Verify that the continuity between the front map light terminals is as indicated in the table.

am3uuw00010470
am3uuw00010469

•  If not as indicated in the table, replace the front map light. (See FRONT MAP LIGHT REMOVAL/INSTALLATION.)
