KEYLESS ANTENNA REMOVAL/INSTALLATION

id091400514900

Vehicle Interior, Front

1. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZR 1.5, MZR 1.6].) (See BATTERY REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5].) (See BATTERY REMOVAL/INSTALLATION [MZR 2.0 DISI i-stop].) (See BATTERY REMOVAL/INSTALLATION [MZR 2.3 DISI Turbo].) (See BATTERY REMOVAL/INSTALLATION [MZR-CD 2.2].) (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.0].)

2. Remove the following parts:

(1) Upper panel (See UPPER PANEL REMOVAL/INSTALLATION.)

(2) Shift knob (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION.)

(3) Selector lever knob (ATX/CVT) (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION.) (See CVT (CONTINUOUSLY VARIABLE TRANSAXLE) SHIFT MECHANISM REMOVAL/INSTALLATION.)

(4) Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)

(5) Side wall (See SIDE WALL REMOVAL/INSTALLATION.)

(6) Center panel (See CENTER PANEL REMOVAL/INSTALLATION.)

(7) Audio unit (See AUDIO UNIT REMOVAL/INSTALLATION.)

(8) Rear heat duct (1). (See REAR HEAT DUCT REMOVAL/INSTALLATION.)

3. Disconnect the connector.

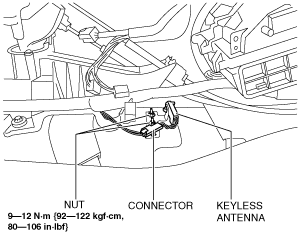

am3uuw00004316

4. Remove the nuts.

5. Remove the keyless antenna.

6. Install in the reverse order of removal.

Vehicle Interior, Rear

2. Remove the rear seat cushion. (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)

3. Disconnect the connector.

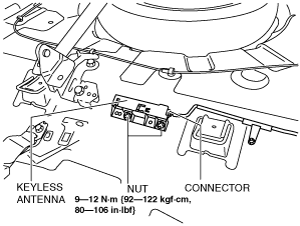

am3uuw00004317

4. Remove the nuts.

5. Remove the keyless antenna.

6. Install in the reverse order of removal.

Vehicle Exterior, Rear

2. Remove the rear combination light. (See REAR COMBINATION LIGHT REMOVAL/INSTALLATION)

3. Remove the rear bumper. (See REAR BUMPER REMOVAL/INSTALLATION.)

4. Remove the nuts.

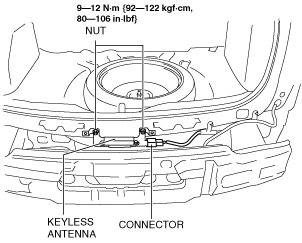

am3uuw00004337

5. Disconnect the connector.

6. Remove the keyless antenna.

7. Install in the reverse order of removal.

Vehicle Exterior, Driver's Door/Passenger's Door

Note

• The keyless antenna (vehicle exterior, driver's door/passenger's door) is built into the front outer handle. (See FRONT OUTER HANDLE REMOVAL/INSTALLATION.)

am2zzw00000552
