SEATS LOCATION INDEX

id091300800100

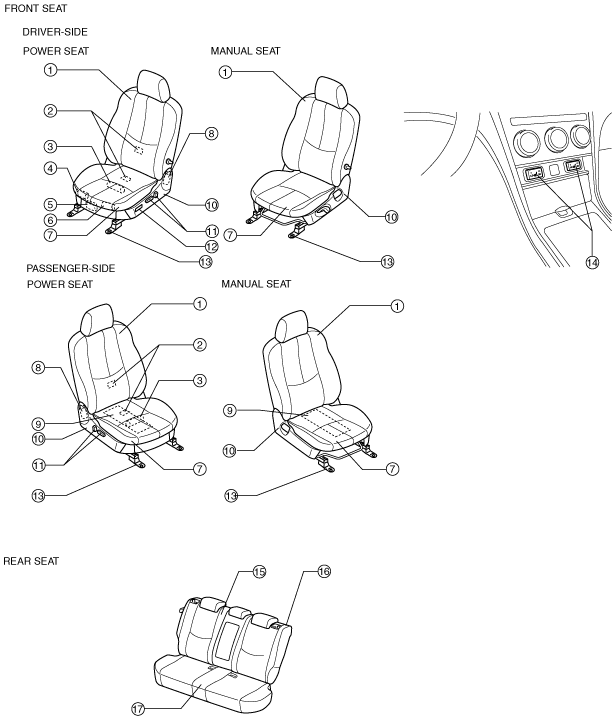

L.H.D.

am6zzw00006766

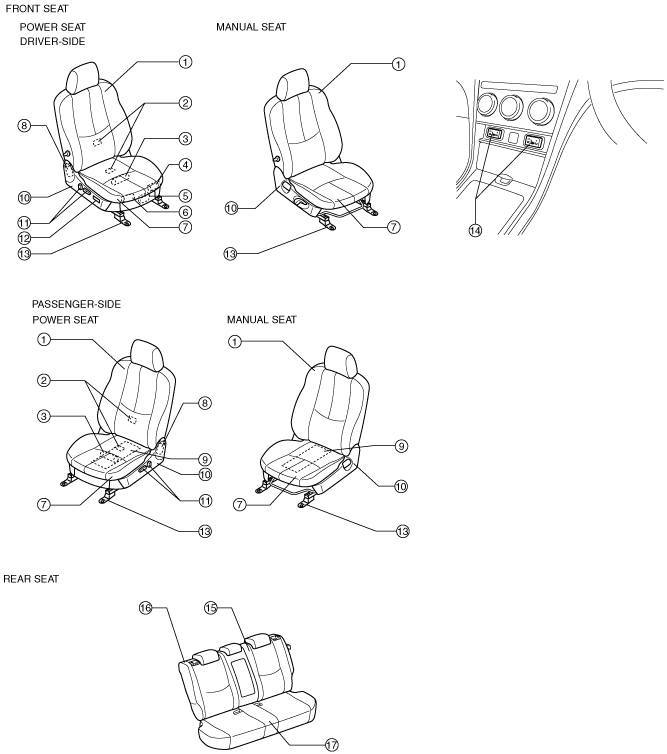

R.H.D.

am6zzw00006767

1	Front seat (See FRONT SEAT REMOVAL/INSTALLATION.) (See FRONT SEAT BACK COMPONENT REMOVAL/INSTALLATION.) (See FRONT SEAT BACK TRIM REMOVAL/INSTALLATION.) (See FRONT SEAT BACK INNER FRAME REMOVAL/INSTALLATION.) (See ACTIVE HEADREST INSPECTION.)
2	Seat warmer unit (See SEAT WARMER UNIT INSPECTION.)
3	Slide motor (See SLIDE MOTOR INSPECTION.)
4	Rear tilt motor (See REAR TILT MOTOR INSPECTION.)
5	Position memory control module (See POSITION MEMORY CONTROL MODULE REMOVAL/INSTALLATION.) (See POSITION MEMORY CONTROL MODULE INSPECTION.)
6	Front tilt motor (See FRONT TILT MOTOR INSPECTION.)
7	Front seat cushion trim (See FRONT SEAT CUSHION TRIM REMOVAL/INSTALLATION.)
8	Recliner motor (See RECLINER MOTOR INSPECTION.)
9	Occupancy sensor (See OCCUPANCY SENSOR INSPECTION.)
10	Front seat side cover (See FRONT SEAT SIDE COVER REMOVAL/INSTALLATION.)
11	Power seat switch (See POWER SEAT SWITCH INSPECTION.)
12	Position memory switch (See POSITION MEMORY SWITCH REMOVAL/INSTALLATION.) (See POSITION MEMORY SWITCH INSPECTION.)
13	Front seat slide adjuster (See FRONT SEAT SLIDE ADJUSTER REMOVAL/INSTALLATION.)
14	Seat warmer switch (See SEAT WARMER SWITCH REMOVAL/INSTALLATION.) (See SEAT WARMER SWITCH INSPECTION.)
15	Rear seat back (See REAR SEAT BACK REMOVAL/INSTALLATION [4SD].) (See REAR SEAT REMOVAL/INSTALLATION [5HB/WAGON].) (See REAR SEAT DISASSEMBLY/ASSEMBLY [5HB/WAGON].) (See REAR SEAT BACK FRAME REMOVAL/INSTALLATION.)
16	Rear side seat back (See REAR SIDE SEAT BACK REMOVAL/INSTALLATION.)
17	Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION [4SD].) (See REAR SEAT REMOVAL/INSTALLATION [5HB/WAGON].) (See REAR SEAT DISASSEMBLY/ASSEMBLY [5HB/WAGON].) (See REAR SEAT CUSHION TRIM REMOVAL/INSTALLATION.)
