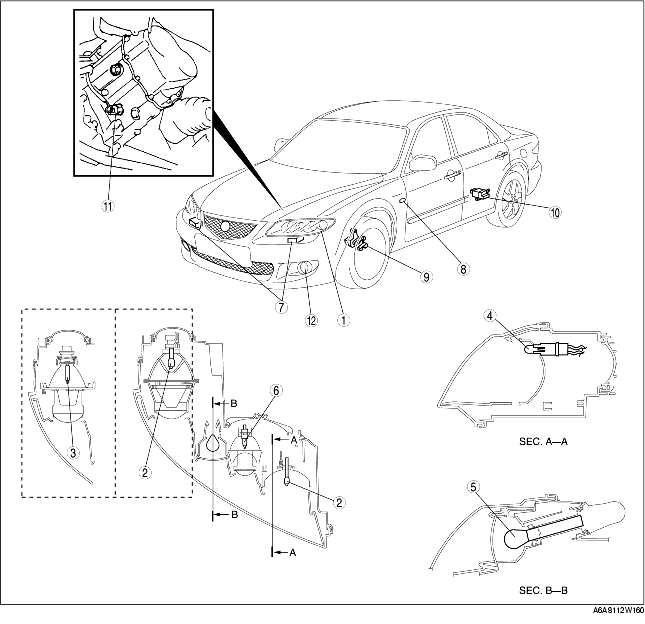

1
|
Front combination light
(See HEADLIGHT AIMING)
|
|
2
|
Headlight bulb
|
|
3
|
Discharge headlight bulb
|
|
4
|
Parking light bulb
|
|
5
|
Front turn light
|
|
6
|
Front fog light bulb (Type A)
(See FRONT FOG LIGHT AIMING)
|
|
7
|
Discharge headlight control unit
|
|
8
|
Front side turn light
|
|
9
|
Front auto leveling sensor
(See HEADLIGHT ZEROSET)
|
|
10
|
Rear auto leveling sensor
(See HEADLIGHT ZEROSET)
|
|
11
|
Back-up light switch
|
|
12
|
Front fog light (Type B)
(See FRONT FOG LIGHT AIMING)
|
|

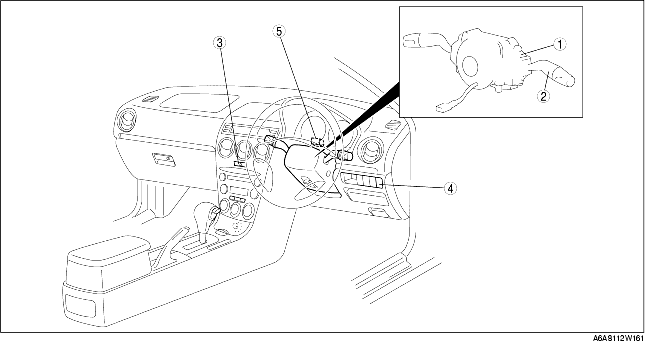

1
|
Combination switch
|
|
2
|
Light switch
|
|
3
|
Hazard warning switch
|
|
4
|
Headlight leveling switch
|
|
5
|
Flasher unit
(See FLASHER UNIT INSPECTION)
|
