INTERIOR TRIM LOCATION INDEX

id091700800200

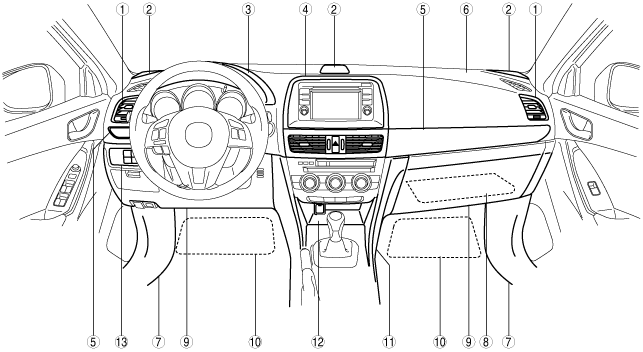

am6zzw00011128

1	Ventilator grille (See VENTILATOR GRILLE REMOVAL/INSTALLATION.)
2	Speaker grille (See SPEAKER GRILLE REMOVAL/INSTALLATION.)
3	Meter hood (See METER HOOD REMOVAL/INSTALLATION.)
4	Center panel (See CENTER PANEL REMOVAL/INSTALLATION.)
5	Decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)
6	Dashboard (See DASHBOARD REMOVAL/INSTALLATION.) (See DASHBOARD DISASSEMBLY/ASSEMBLY.)
7	Front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)
8	Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION.)
9	Lower panel (See LOWER PANEL REMOVAL/INSTALLATION.)
10	Floor insulator (See FLOOR INSULATOR REMOVAL/INSTALLATION.)
11	Front console (See FRONT CONSOLE REMOVAL/INSTALLATION.)
12	Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION.)
13	Cluster switch (See CLUSTER SWITCH REMOVAL/INSTALLATION.)

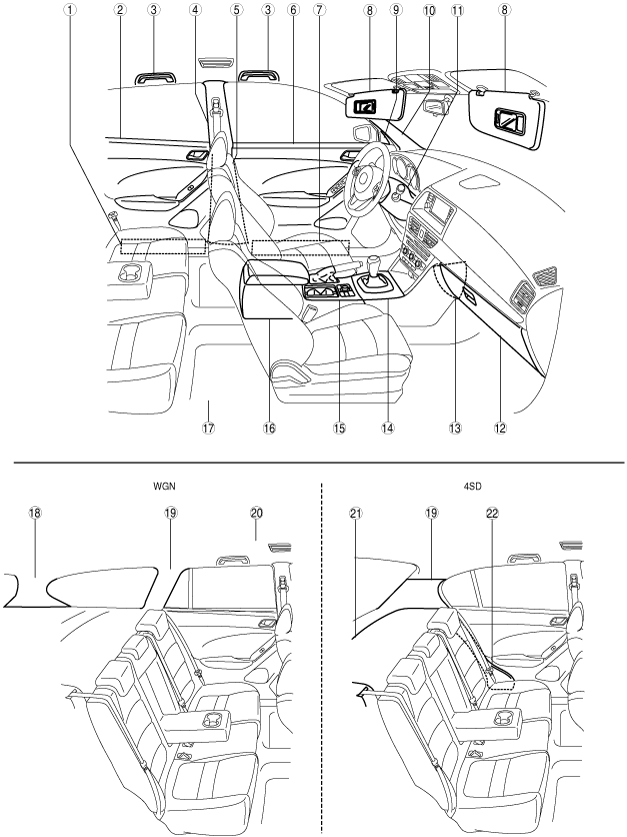

am6zzw00009474

1	Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)
2	Rear door trim (See REAR DOOR TRIM REMOVAL/INSTALLATION.) (See REAR DOOR TRIM DISASSEMBLY/ASSEMBLY.)
3	Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION.)
4	B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION.)
5	B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)
6	Front door trim (See FRONT DOOR TRIM REMOVAL/INSTALLATION.) (See FRONT DOOR TRIM DISASSEMBLY/ASSEMBLY.)
7	Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)
8	Sunvisor (See SUNVISOR REMOVAL/INSTALLATION.)
9	Inner garnish (See INNER GARNISH REMOVAL/INSTALLATION.)
10	A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)
11	Column cover (See COLUMN COVER REMOVAL/INSTALLATION.)
12	Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)
13	Side wall (See SIDE WALL REMOVAL/INSTALLATION.)
14	Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)
15	Upper panel (See UPPER PANEL REMOVAL/INSTALLATION.)
16	Rear console (See REAR CONSOLE REMOVAL/INSTALLATION.) (See REAR CONSOLE DISASSEMBLY/ASSEMBLY.)
17	Floor covering (See FLOOR COVERING REMOVAL/INSTALLATION.)
18	D-pillar trim (See D-PILLAR TRIM REMOVAL/INSTALLATION.)
19	C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION.)
20	Headliner (See HEADLINER REMOVAL/INSTALLATION.)
21	Rear package trim (See REAR PACKAGE TRIM REMOVAL/INSTALLATION.)
22	Tire house trim (See TIRE HOUSE TRIM REMOVAL/INSTALLATION.)

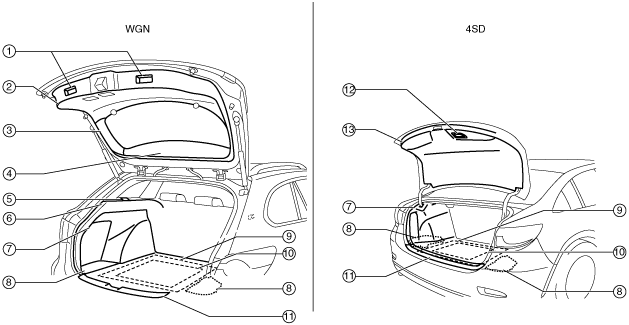

am6zzw00011406

1	Liftgate recess (See LIFTGATE RECESS REMOVAL/INSTALLATION.)
2	Liftgate lower trim (See LIFTGATE LOWER TRIM REMOVAL/INSTALLATION.)
3	Liftgate side trim (See LIFTGATE SIDE TRIM REMOVAL/INSTALLATION.)
4	Liftgate upper trim (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION.)
5	Rear speaker grille (See SPEAKER GRILLE REMOVAL/INSTALLATION.)
6	Trunk side upper trim (See TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION.)
7	Trunk side trim (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)
8	Trunk side pocket (See TRUNK SIDE POCKET REMOVAL/INSTALLATION.)
9	Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION.)
10	Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION.)
11	Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)
12	Trunk lid recess (See TRUNK LID RECESS REMOVAL/INSTALLATION.)
13	Trunk lid trim (See TRUNK LID TRIM REMOVAL/INSTALLATION.)
