ENGINE LOCATION INDEX [L8, LF, L5]

id0110a6800100

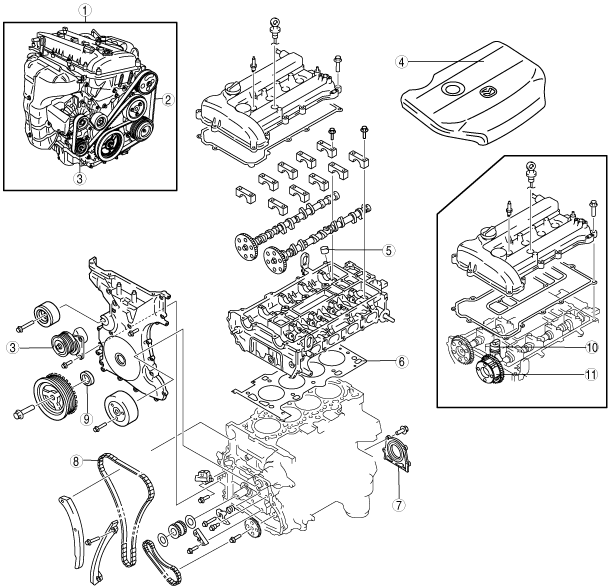

am6zzw00001415

1	Engine (See COMPRESSION INSPECTION [L8, LF, L5].) (See ENGINE REMOVAL/INSTALLATION [L8, LF, L5].) (See ENGINE DISASSEMBLY/ASSEMBLY [L8, LF, L5].) (See ENGINE TUNE-UP [L8, LF, L5].)
2	Drive belt (See DRIVE BELT INSPECTION [L8, LF, L5].) (See DRIVE BELT REMOVAL/INSTALLATION [L8, LF, L5].)
3	Drive belt auto tensioner (See DRIVE BELT AUTO TENSIONER INSPECTION [L8, LF, L5].) (See ENGINE DISASSEMBLY/ASSEMBLY [L8, LF, L5].)
4	Plug hole plate (See PLUG HOLE PLATE REMOVAL/INSTALLATION [L8, LF, L5].)
5	Tappet (See VALVE CLEARANCE INSPECTION [L8, LF, L5].) (See VALVE CLEARANCE ADJUSTMENT [L8, LF, L5].)
6	Cylinder head gasket (See CYLINDER HEAD GASKET REPLACEMENT [L8, LF, L5].)
7	Rear oil seal (See REAR OIL SEAL REPLACEMENT [L8, LF, L5].)
8	Timing Chain (See TIMING CHAIN REMOVAL/INSTALLATION [L8, LF, L5].)
9	Front oil seal (See FRONT OIL SEAL REPLACEMENT [L8, LF, L5].)
10	OCV (With variable valve timing mechanism) (See OIL CONTROL VALVE (OCV) REMOVAL/INSTALLATION [LF, L5].) (See OIL CONTROL VALVE (OCV) INSPECTION [LF, L5].)
11	Variable valve timing actuator (With variable value timing mechanism) (See VARIABLE VALVE TIMING ACTUATOR INSPECTION [LF, L5].) (See VARIABLE VALVE TIMING ACTUATOR REMOVAL/INSTALLATION [LF, L5].)
