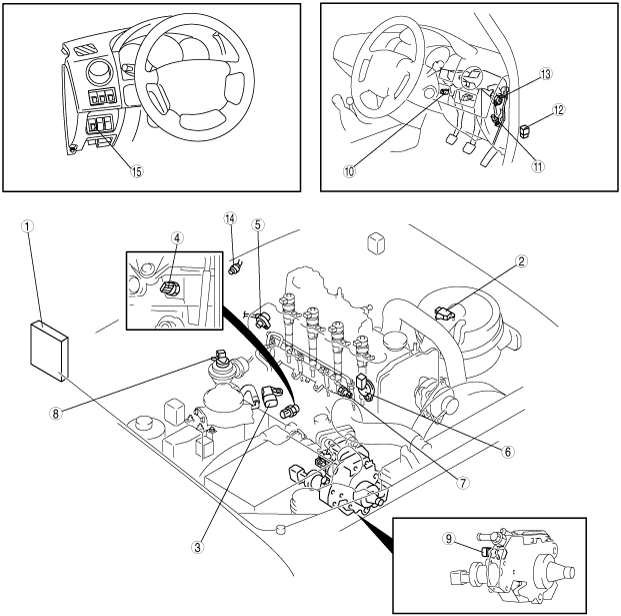

CONTROL SYSTEM LOCATION INDEX [WL-C, WE-C]

id0140b7804100

absggw00000473

1	PCM (Built into BARO sensor) (See PCM REMOVAL/INSTALLATION [WL-C, WE-C].) (See PCM REMOVAL/INSTALLATION (U.K. Specs.) [WL-C, WE-C].) (See PCM INSPECTION (Thailand, General (L.H.D. R.H.D.) specs.) [WL-C, WE-C].) (See PCM INSPECTION (Australian, European (L.H.D. U.K.) specs.) [WL-C, WE-C].)
2	MAF sensor/IAT sensor No.2 (See MASS AIR FLOW (MAF) SENSOR/INTAKE AIR TEMPERATURE (IAT) SENSOR NO.2 INSPECTION [WL-C, WE-C].)
3	Boost sensor/IAT sensor No.1 (See BOOST SENSOR INSPECTION [WL-C, WE-C].) (See INTAKE AIR TEMPERATURE (IAT) SENSOR NO.1 INSPECTION [WL-C, WE-C].)
4	ECT sensor (See ENGINE COOLANT TEMPERATURE (ECT) SENSOR REMOVAL/INSTALLATION [WL-C, WE-C].) (See ENGINE COOLANT TEMPERATURE (ECT) SENSOR INSPECTION [WL-C, WE-C].)
5	CKP sensor (See CRANKSHAFT POSITION (CKP) SENSOR REMOVAL/INSTALLATION [WL-C, WE-C].) (See CRANKSHAFT POSITION (CKP) SENSOR INSPECTION [WL-C, WE-C].)
6	CMP sensor (See CAMSHAFT POSITION (CMP) SENSOR REMOVAL/INSTALLATION [WL-C, WE-C].) (See CAMSHAFT POSITION (CMP) SENSOR INSPECTION [WL-C, WE-C].)
7	Fuel pressure sensor (See FUEL PRESSURE SENSOR INSPECTION [WL-C, WE-C].)
8	EGR valve position sensor (See EGR VALVE POSITION SENSOR INSPECTION [WL-C, WE-C].)
9	Fuel temperature sensor (See FUEL TEMPERATURE SENSOR INSPECTION [WL-C, WE-C].)
10	CPP sensor (See CLUTCH PEDAL POSITION (CPP) SWITCH INSPECTION [WL-C, WE-C].)
11	Idle switch (See IDLE SWITCH INSPECTION [WL-C, WE-C].)
12	main relay (See MAIN RELAY INSPECTION [WL-C, WE-C].)
13	APP sensor (See ACCELERATOR PEDAL POSITION (APP) SENSOR INSPECTION [WL-C, WE-C].)
14	Neutral switch (See NEUTRAL SWITCH INSPECTION [WL-C, WE-C].)
15	Warm up switch (See WARM UP SWITCH REMOVAL/INSTALLATION (European (L.H.D.) specs.) [WL-C, WE-C].) (See WARM UP SWITCH INSPECTION (European (L.H.D.) specs.) [WL-C, WE-C].)
