ROOF CARRIER BRACKET REMOVAL/INSTALLATION
id091600801700
1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)
2. Remove the following parts:
- (1) Sunroof seaming welt (With sunroof system) (See SUNROOF UNIT REMOVAL/INSTALLATION.)
-
- (2) A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)
-
- (3) Front map light (See FRONT MAP LIGHT REMOVAL/INSTALLATION.)
-
- (4) Sunvisor (See SUNVISOR REMOVAL/INSTALLATION.)
-
- (5) Lower decoration panel (With center display) (See DECORATION PANEL REMOVAL/INSTALLATION.)
-
- (6) Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)
-
- (7) Passenger-side front side trim (With center display) (L.H.D.) (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)
-
- (8) Glove compartment (With center display) (L.H.D.) (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)
-
- (9) Dashboard under cover (With center display) (L.H.D.) (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION.)
-
- (10) Passenger-side lower panel (With center display) (L.H.D.) (See LOWER PANEL REMOVAL/INSTALLATION.)
-
- (11) Driver-side front side trim (With center display) (R.H.D.) (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)
-
- (12) Bonnet release lever (With center display) (R.H.D.) (See BONNET RELEASE LEVER AND RELEASE CABLE REMOVAL/INSTALLATION.)
-
- (13) Fuel-filler lid opener lever (With center display) (R.H.D.) (See FUEL-FILLER LID OPENER AND LEVER REMOVAL/INSTALLATION.)
-
- (14) Driver-side lower panel (With center display) (R.H.D.) (See LOWER PANEL REMOVAL/INSTALLATION.)
-
- (15) Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION.)
-
- (16) Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)
-
- (17) B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)
-
- (18) Adjust anchor cover on the front seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)
-
- (19) Upper anchor installation bolt on the front seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)
-
- (20) B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION.)
-
- (21) Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)
-
- (22) Tonneau cover (With tonneau cover) (See TONNEAU COVER REMOVAL/INSTALLATION.)
-
- (23) Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION.)
-
- (24) Bass-box (With Bose®) (See BASS-BOX REMOVAL/INSTALLATION.)
-
- (25) Sub-trunk (See SUB-TRUNK REMOVAL/INSTALLATION.)
-
- (26) Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)
-
- (27) Trunk side trim (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)
-
- (28) C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION.)
-
- (29) Head restraint
-
- (30) Headliner (See HEADLINER REMOVAL/INSTALLATION.)
-
- (31) Roof molding (See ROOF MOLDING REMOVAL.) (See ROOF MOLDING INSTALLATION.)
-
3. Remove the bolts from curtain air bag module and set it aside so that it does not interfere with the servicing. (See CURTAIN AIR BAG MODULE REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM].) (See CURTAIN AIR BAG MODULE REMOVAL/INSTALLATION [STANDARD DEPLOYMENT CONTROL SYSTEM].)

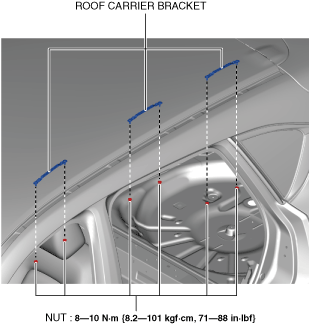

4. Remove the nuts.
5. Remove the roof carrier bracket.
6. Install in the reverse order of removal.
