DASHBOARD REMOVAL/INSTALLATION

id091700800300

Replacement part

Removal

Warning

•  Handling the driver's air bag module improperly can accidentally operate (deploy) the air bag module, which may seriously injure you. Read the SRS air bag system service warnings and cautions before handling the air bag module. (See AIR BAG SYSTEM SERVICE WARNINGS [STANDARD DEPLOYMENT CONTROL SYSTEM].) (See AIR BAG SYSTEM SERVICE WARNINGS [TWO-STEP DEPLOYMENT CONTROL SYSTEM].) (See AIR BAG SYSTEM SERVICE CAUTIONS [STANDARD DEPLOYMENT CONTROL SYSTEM].) (See AIR BAG SYSTEM SERVICE CAUTIONS [TWO-STEP DEPLOYMENT CONTROL SYSTEM].)

Note

•  When removing the driver's air bag module, it is necessary to rotate the steering wheel. If the ignition is switched OFF with the driver's door closed, the steering wheel will be locked. Perform the procedure from Steps 1-3 so that the steering wheel will not be locked.

1.  Switch the ignition ON. (engine off or on)

2.  Open the driver's door.

3.  Switch the ignition off.

4.  Disconnect the negative battery terminal and wait for 1 min or more. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

5.  Remove the following parts:

(1)  Windshield wiper arm and blade (See WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION.)

(2)  Cowl grille (See COWL GRILLE REMOVAL/INSTALLATION.)

(3)  Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(4)  Front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(5)  A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)

(6)  Driver-side air bag module (See DRIVER-SIDE AIR BAG MODULE REMOVAL [STANDARD DEPLOYMENT CONTROL SYSTEM].) (See DRIVER-SIDE AIR BAG MODULE REMOVAL [TWO-STEP DEPLOYMENT CONTROL SYSTEM].)

(7)  Steering wheel (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION.)

(8)  Upper column cover (See COLUMN COVER REMOVAL/INSTALLATION.)

(9)  Lower column cover (See COLUMN COVER REMOVAL/INSTALLATION.)

(10)  Lower decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(11)  Upper decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(12)  Driver-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(13)  Meter hood No.1 (See METER HOOD REMOVAL/INSTALLATION.)

(14)  Center display component (With center display) (See CENTER DISPLAY REMOVAL/INSTALLATION.)

(15)  Instrument cluster (See INSTRUMENT CLUSTER REMOVAL/INSTALLATION.)

(16)  Meter hood No.2 (With active driving display) (See METER HOOD REMOVAL/INSTALLATION.)

(17)  Active driving display (With active driving display) (See ACTIVE DRIVING DISPLAY REMOVAL/INSTALLATION.)

(18)  Console side panel (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION.)

(19)  Switch panel (See SWITCH PANEL REMOVAL/INSTALLATION.)

(20)  Cup holder (See CUP HOLDER REMOVAL/INSTALLATION.)

(21)  Selector lever knob (See SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION.)

(22)  Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)

(23)  Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION.)

(24)  Side wall (See SIDE WALL REMOVAL/INSTALLATION.)

(25)  Rear console (See REAR CONSOLE REMOVAL/INSTALLATION.)

(26)  MAZDA ERA-GLONASS control module (With MAZDA ERA-GLONASS) (See MAZDA ERA-GLONASS CONTROL MODULE REMOVAL/INSTALLATION.)

(27)  Bonnet release lever (See BONNET RELEASE LEVER AND RELEASE CABLE REMOVAL/INSTALLATION.)

(28)  Fuel-filler lid opener lever (See FUEL-FILLER LID OPENER AND LEVER REMOVAL/INSTALLATION.)

(29)  Driver-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION.)

(30)  Center lower panel (See CENTER LOWER PANEL REMOVAL/INSTALLATION.)

(31)  Indicator unit (See INDICATOR UNIT REMOVAL/INSTALLATION.)

(32)  Climate control unit (See CLIMATE CONTROL UNIT REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].) (See CLIMATE CONTROL UNIT REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER].)

(33)  Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

(34)  Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION.)

(35)  Passenger-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION.)

(36)  Clock spring (See CLOCK SPRING REMOVAL/INSTALLATION [STANDARD DEPLOYMENT CONTROL SYSTEM].) (See CLOCK SPRING REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM].)

(37)  Wiper and washer switch (See WIPER AND WASHER SWITCH REMOVAL/INSTALLATION.)

(38)  Light switch (See LIGHT SWITCH REMOVAL/INSTALLATION.)

(39)  Steering wheel and column component (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION.)

(40)  Rear vent duct No.2 (With rear vent duct) (See REAR VENT DUCT REMOVAL/INSTALLATION.)

(41)  Rear vent duct No.1 (With rear vent duct) (See REAR VENT DUCT REMOVAL/INSTALLATION.)

(42)  Selector lever component (See SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION.)

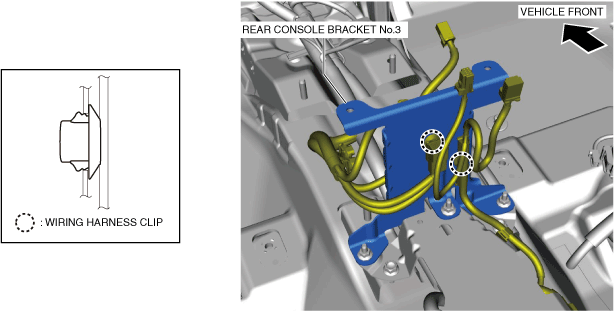

6.  Remove the wiring harness clips.

ac5uuw00006725

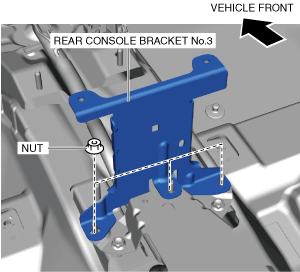

7.  Remove the nuts.

ac5uuw00006726

8.  Remove rear console bracket No.3.

9.  Remove the electric parking brake control module. (See ELECTRIC PARKING BRAKE CONTROL MODULE REMOVAL/INSTALLATION.)

10.  Remove the electric parking brake control module bracket. (See ELECTRIC PARKING BRAKE CONTROL MODULE REMOVAL/INSTALLATION.)

11.  Disconnect the dashboard wiring harness connectors and remove wiring harness clips A and B. (With center display)

ac5uuw00006727

12.  Disconnect the dashboard wiring harness connectors and remove wiring harness clips A, B and C. (Without center display)

ac5uuw00006728

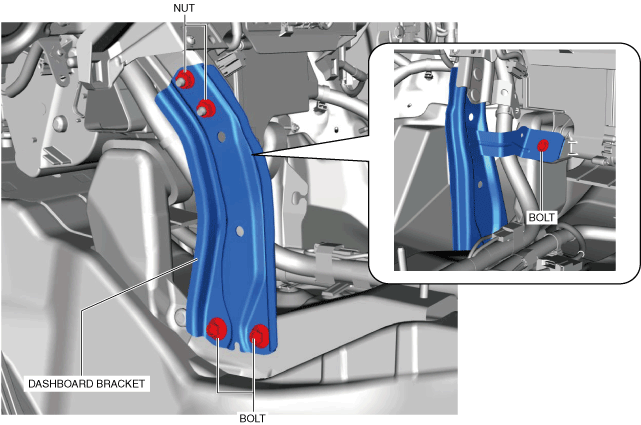

13.  Remove the bolts.

ac5uuw00006729

14.  Remove the nuts.

15.  Remove the dashboard bracket.

16.  To prevent damage to the windshield, apply protective tape to the position shown in the figure.

ac5uuw00006730

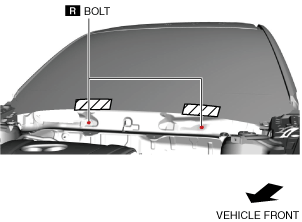

17.  Remove the bolts.

ac5uuw00006731

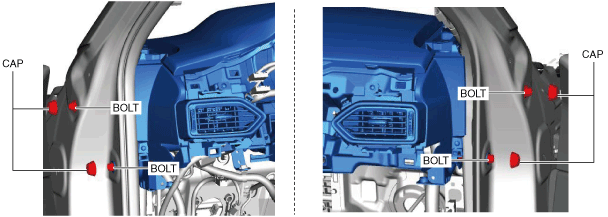

18.  Remove the caps and the bolts.

ac5uuw00006732

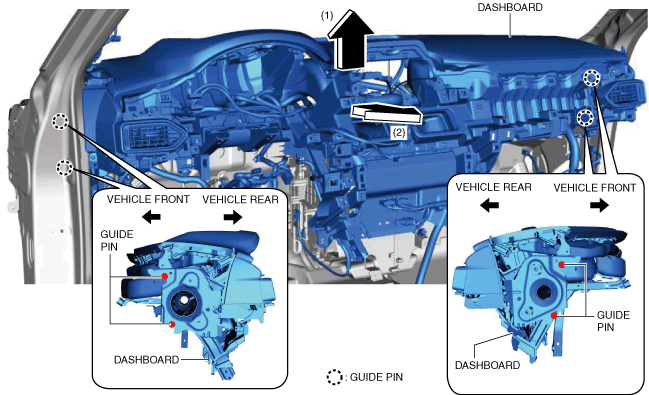

19.  Lift the dashboard up in the direction of arrow (1) shown in the figure and remove it from the guide pins on the vehicle body sides, and pull out the dashboard in the direction of arrow (2).

ac5uuw00006733

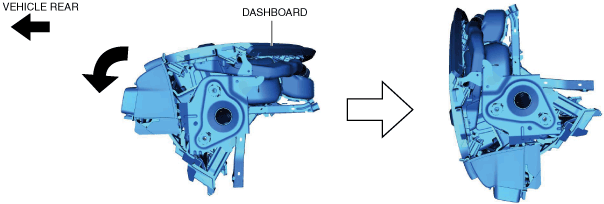

20.  Rotate the dashboard in the direction shown in the figure.

ac5jjw00010058

21.  Remove the dashboard from either the driver-side or passenger-side front door opening.

Installation

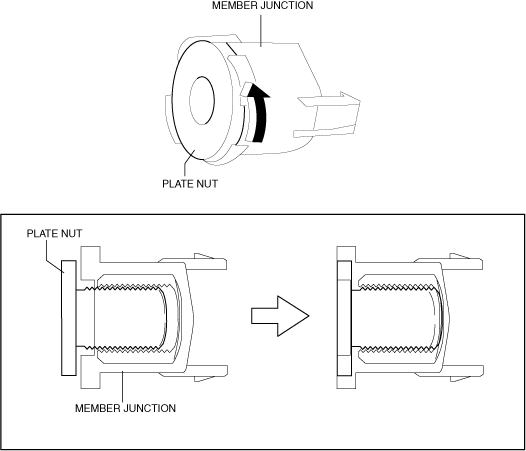

1.  Rotate the plate nuts by hand in the direction of the arrow shown in the figure until they are seated.

Caution

•  After removing the dashboard, the plate nuts of the member junctions will have loosened. If the dashboard is installed with the plate nuts loosened, the plate nuts may contact the vehicle body, causing a dent or damage to the coating film, and the dashboard installation will be difficult. Before inserting the dashboard into the cabin, seat the plate nuts of the member junctions.

•  If the plate nuts are tightened excessively, the plate nuts may not move when installing the bolts, resulting in damage to the member junction tab and the vehicle body. After seating the plate nuts, verify that they can be rotated by hand.

Note

•  If the plate nuts cannot be rotated by hand, loosen the plate nuts using a hexagonal wrench.

ac5uuw00006734

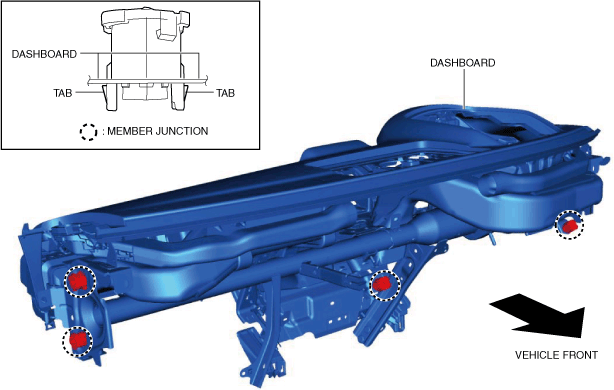

2.  Verify that the member junction tabs are engaged to the dashboard.

Caution

•  If the member junction tabs are disengaged from the dashboard when inserting the dashboard into the cabin, the vehicle body could be damaged. Before inserting the dashboard into the cabin, verify that the member junction tabs are engaged with the dashboard.

ac5uuw00006735

3.  Insert the dashboard from either the driver-side or passenger-side front door opening.

4.  Move the dashboard in the direction of the arrow shown in the figure, align it with the guide pins on the vehicle body sides, and set it.

Note

•  Visually verify the installation condition of the guide pins on the vehicle body sides and the dashboard from the position shown in the figure.

ac5uuw00006736

5.  Insert the bolts on the passenger-side.

Note

•  Tighten the bolts to the specified torque after positioning the member junction.

ac5uuw00006737

6.  Tighten the bolts on the driver-side temporarily.

ac5uuw00006738

7.  Tighten the bolts on the passenger-side temporarily.

Note

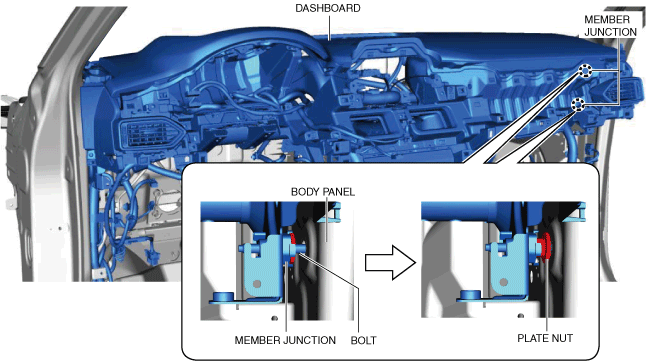

•  When seating the bolts, visually verify from the lower side of the dashboard that the plate nuts of the member junctions emerge toward the body panel while rotating.

ac5uuw00006739

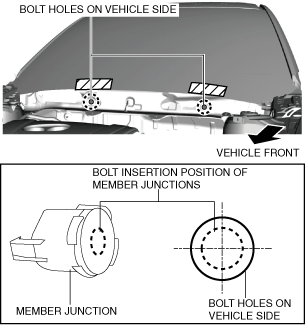

8.  Verify that the bolt holes on the vehicle side and the bolt insertion position of the member junctions are aligned.

Note

•  If the bolt holes on the vehicle side and the bolt insertion position of the member junctions are not aligned, remove the bolts on the driver-side and passenger-side and repeat from Step 5.

ac5uuw00006740

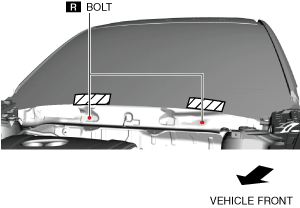

9.  Tighten the new bolts temporarily.

Caution

•  If the bolts are reused, the plate nuts of the member junctions cannot be moved and the dashboard frame and the vehicle body could be damaged. Always replace the bolts with new ones.

ac5uuw00006741

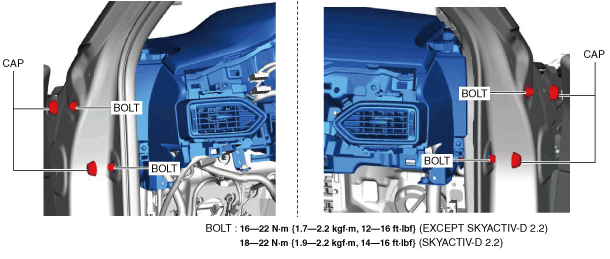

10.  Tighten the bolts on the driver-side to the specified torque and install the caps.

ac5wzw00008993

11.  Tighten the bolts on the passenger-side to the specified torque and install the caps.

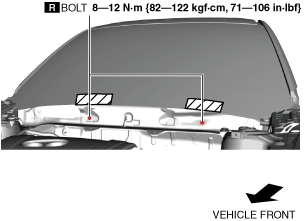

12.  Tighten the bolts to the specified torque.

ac5wzw00011197

13.  Peel off the protective tape.

ac5uuw00006730

14.  Install the dashboard bracket.

ac5wzw00011954

15.  Install the nuts.

16.  Install the bolts.

17.  Connect the dashboard wiring harness connectors and install wiring harness clips A and B. (With center display)

ac5uuw00006727

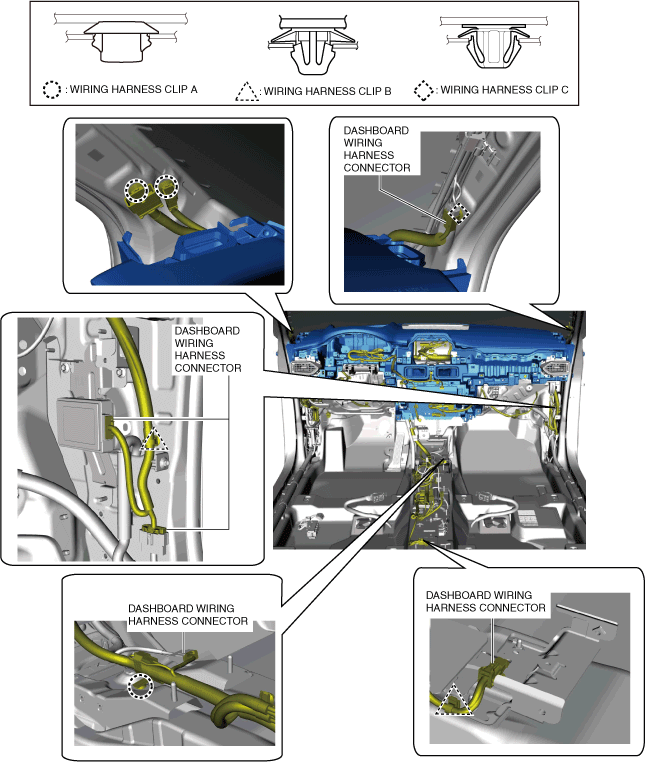

18.  Connect the dashboard wiring harness connectors and install wiring harness clips A, B and C. (Without center display)

ac5uuw00006728

19.  Install the electric parking brake control module bracket. (See ELECTRIC PARKING BRAKE CONTROL MODULE REMOVAL/INSTALLATION.)

20.  Install the electric parking brake control module. (See ELECTRIC PARKING BRAKE CONTROL MODULE REMOVAL/INSTALLATION.)

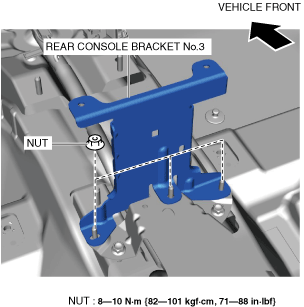

21.  Install rear console bracket No.3.

ac5wzw00011955

22.  Install the nuts.

23.  Install the wiring harness clips.

ac5uuw00006725

24.   Install the following parts:

(1)  Selector lever component (See SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION.)

(2)  Rear vent duct No.1 (With rear vent duct) (See REAR VENT DUCT REMOVAL/INSTALLATION.)

(3)  Rear vent duct No.2 (With rear vent duct) (See REAR VENT DUCT REMOVAL/INSTALLATION.)

(4)  Steering wheel and column component (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION.)

(5)  Light switch (See LIGHT SWITCH REMOVAL/INSTALLATION.)

(6)  Wiper and washer switch (See WIPER AND WASHER SWITCH REMOVAL/INSTALLATION.)

(7)  Clock spring (See CLOCK SPRING REMOVAL/INSTALLATION [STANDARD DEPLOYMENT CONTROL SYSTEM].) (See CLOCK SPRING REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM].)

(8)  Passenger-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION.)

(9)  Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION.)

(10)  Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

(11)  Climate control unit (See CLIMATE CONTROL UNIT REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].) (See CLIMATE CONTROL UNIT REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER].)

(12)  Indicator unit (See INDICATOR UNIT REMOVAL/INSTALLATION.)

(13)  Center lower panel (See CENTER LOWER PANEL REMOVAL/INSTALLATION.)

(14)  Driver-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION.)

(15)  Fuel-filler lid opener lever (See FUEL-FILLER LID OPENER AND LEVER REMOVAL/INSTALLATION.)

(16)  Bonnet release lever (See BONNET RELEASE LEVER AND RELEASE CABLE REMOVAL/INSTALLATION.)

(17)  MAZDA ERA-GLONASS control module (With MAZDA ERA-GLONASS) (See MAZDA ERA-GLONASS CONTROL MODULE REMOVAL/INSTALLATION.)

(18)  Rear console (See REAR CONSOLE REMOVAL/INSTALLATION.)

(19)  Side wall (See SIDE WALL REMOVAL/INSTALLATION.)

(20)  Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION.)

(21)  Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)

(22)  Selector lever knob (See SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION.)

(23)  Cup holder (See CUP HOLDER REMOVAL/INSTALLATION.)

(24)  Switch panel (See SWITCH PANEL REMOVAL/INSTALLATION.)

(25)  Console side panel (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION.)

(26)  Active driving display (With active driving display) (See ACTIVE DRIVING DISPLAY REMOVAL/INSTALLATION.)

(27)  Meter hood No.2 (With active driving display) (See METER HOOD REMOVAL/INSTALLATION.)

(28)  Instrument cluster (See INSTRUMENT CLUSTER REMOVAL/INSTALLATION.)

(29)  Center display component (With center display) (See CENTER DISPLAY REMOVAL/INSTALLATION.)

(30)  Meter hood No.1 (See METER HOOD REMOVAL/INSTALLATION.)

(31)  Driver-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(32)  Upper decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(33)  Lower decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(34)  Lower column cover (See COLUMN COVER REMOVAL/INSTALLATION.)

(35)  Upper column cover (See COLUMN COVER REMOVAL/INSTALLATION.)

(36)  Steering wheel (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION.)

(37)  Driver-side air bag module (See DRIVER-SIDE AIR BAG MODULE INSTALLATION [STANDARD DEPLOYMENT CONTROL SYSTEM].) (See DRIVER-SIDE AIR BAG MODULE INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM].)

(38)  A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)

(39)  Front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(40)  Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(41)  Cowl grille (See COWL GRILLE REMOVAL/INSTALLATION.)

(42)  Windshield wiper arm and blade (See WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION.)

25.  Connect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)
