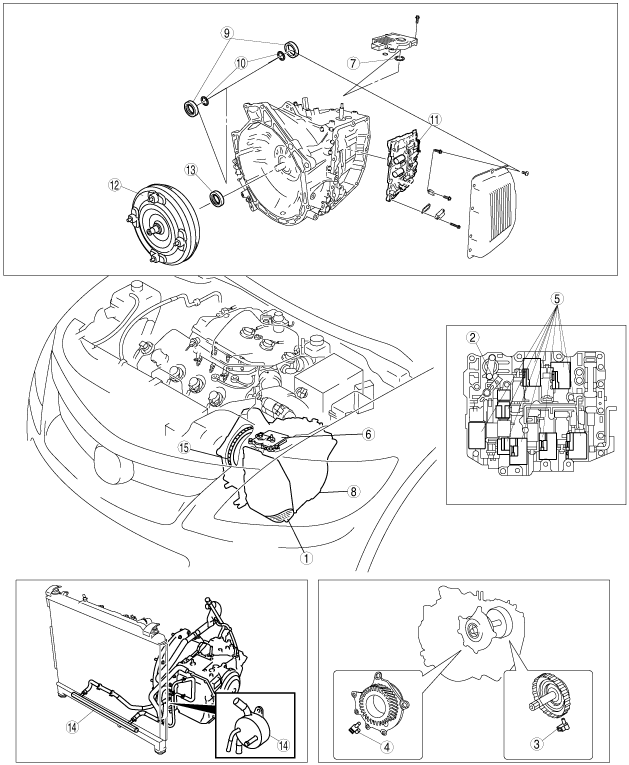

AUTOMATIC TRANSAXLE LOCATION INDEX [AW6AX-EL]

id0517j6802000

ac9uuw00002215

1	Automatic transaxle fluid (ATF) (See AUTOMATIC TRANSAXLE FLUID (ATF) INSPECTION [AW6AX-EL].) (See AUTOMATIC TRANSAXLE FLUID (ATF) REPLACEMENT [AW6AX-EL].)
2	Transaxle fluid temperature (TFT) sensor (See TRANSAXLE FLUID TEMPERATURE (TFT) SENSOR INSPECTION [AW6AX-EL].) (See TRANSAXLE FLUID TEMPERATURE (TFT) SENSOR REMOVAL/INSTALLATION [AW6AX-EL].)
3	Input/turbine speed sensor (See INPUT/TURBINE SPEED SENSOR INSPECTION [AW6AX-EL].) (See INPUT/TURBINE SPEED SENSOR REMOVAL/INSTALLATION [AW6AX-EL].)
4	Vehicle speed sensor (See VEHICLE SPEED SENSOR (VSS) INSPECTION [AW6AX-EL].) (See VEHICLE SPEED SENSOR (VSS) REMOVAL/INSTALLATION [AW6AX-EL].)
5	Solenoid valve (See SOLENOID VALVE INSPECTION [AW6AX-EL].)
6	TCM (See TRANSAXLE RANGE (TR) SWITCH INSPECTION [AW6AX-EL].) (See TCM INSPECTION [AW6AX-EL].) (See TCM REMOVAL/INSTALLATION [AW6AX-EL].)
7	Oil seal (manual shaft) (See OIL SEAL (MANUAL SHAFT) REPLACEMENT [AW6AX-EL].)
8	Automatic transaxle (See AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION [AW6AX-EL].)
9	Oil seal (differential) (See OIL SEAL (DIFFERENTIAL) REPLACEMENT [AW6AX-EL].)
10	Differential gear O-ring (See DIFFERENTIAL GEAR O-RING REPLACEMENT [AW6AX-EL].)
11	Control valve body (See CONTROL VALVE BODY REMOVAL/INSTALLATION [AW6AX-EL].)
12	Torque converter (See TORQUE CONVERTER REMOVAL/INSTALLATION [AW6AX-EL].)
13	Oil seal (oil pump) (See OIL SEAL (OIL PUMP) REPLACEMENT [AW6AX-EL].)
14	Oil cooler (See OIL COOLER FLUSHING [AW6AX-EL].) (See OIL COOLER REMOVAL/INSTALLATION [AW6AX-EL].) (See OIL COOLER DISASSEMBLY/ASSEMBLY [AW6AX-EL].)
15	Drive plate (See DRIVE PLATE REMOVAL/INSTALLATION [AW6AX-EL].)
