FRONT FENDER PANEL REMOVAL/INSTALLATION
id091000041800
1. Disconnect the negative lead-acid battery terminal. (See NEGATIVE LEAD-ACID BATTERY TERMINAL DISCONNECTION/CONNECTION.)
2. Remove the following parts:

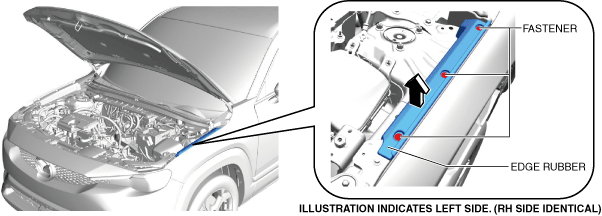

3. Remove the fasteners.
a30zzw00000488
|
4. Remove the edge rubber in the direction of the arrow shown in the figure.

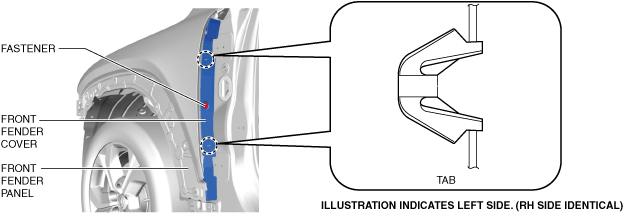

5. Remove the fasteners.
a30zzw00000489
|
6. Remove the front fender cover while detaching the tabs.

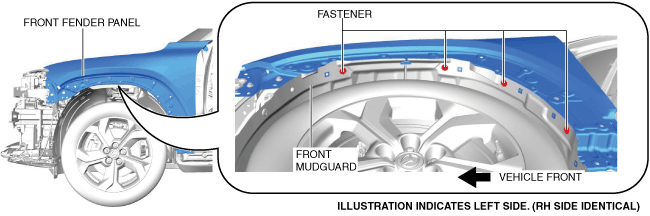

7. Remove the fasteners.
a30zzw00000490
|
8. Partially peel back the front mudguard.

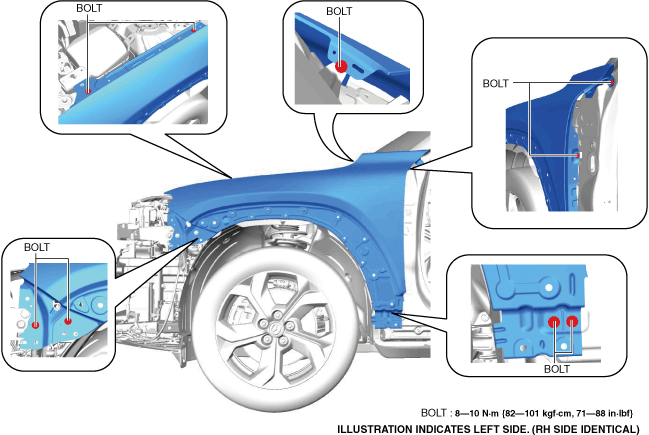

9. Remove the bolts.
a30zzw00003031
|

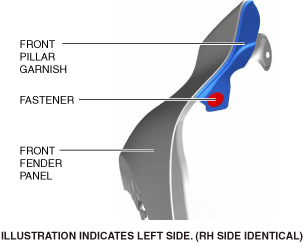

10. Remove the front fender panel.
a30zzw00003032
|
11. Install in the reverse order of removal.
12. Perform the headlight aiming adjustment.(See HEADLIGHT AIMING [(E)].)
13. Perform the front door adjustment. (See DOOR ADJUSTMENT.)
14. Perform the 360°view monitor system aiming. (With 360°view monitor system) (See 360°VIEW MONITOR SYSTEM AIMING.)
15. Perform the front radar sensor/front side radar sensor aiming. (With front side radar sensor) (See FRONT RADAR SENSOR/FRONT SIDE RADAR SENSOR AIMING.)
16. Perform the front radar sensor aiming. (Without front side radar sensor) (See FRONT RADAR SENSOR AIMING.)
