FRONT DOOR HINGE REMOVAL/INSTALLATION

id091100043100

1.  Disconnect the negative lead-acid battery terminal. (See NEGATIVE LEAD-ACID BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Front over fender (See FRONT OVER FENDER REMOVAL/INSTALLATION.)

(2)  Front bumper(See FRONT BUMPER REMOVAL/INSTALLATION [(E)].)

(3)  Front combination light (See FRONT COMBINATION LIGHT REMOVAL/INSTALLATION.)

(4)  Front bumper slider (See BUMPER SLIDER REMOVAL/INSTALLATION.)

(5)  Front fender molding (See FRONT FENDER MOLDING REMOVAL/INSTALLATION.)

(6)  Front door (See FRONT DOOR REMOVAL/INSTALLATION.)

(7)  Rear deflector (See DEFLECTOR REMOVAL/INSTALLATION.)

(8)  Rear over fender (See REAR OVER FENDER REMOVAL/INSTALLATION.)

(9)  Side step molding (See SIDE STEP MOLDING REMOVAL.) (See SIDE STEP MOLDING INSTALLATION.)

(10)  Front fender panel (See FRONT FENDER PANEL REMOVAL/INSTALLATION.)

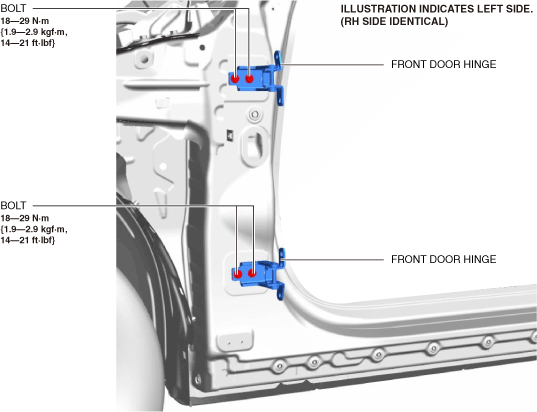

3.  Remove the bolts.

a30zzw00000524

4.  Remove the front door hinge.

5.  Install in the reverse order of removal.

6.  Perform the front door adjustment. (See DOOR ADJUSTMENT.)

7.  Perform the 360° view monitor system aiming. (With 360° view monitor system) (See 360°VIEW MONITOR SYSTEM AIMING.)

8.  Perform the headlight aiming adjustment.(See HEADLIGHT AIMING [(E)].)
