GLOBAL POSITIONING SYSTEM (GPS) ANTENNA REMOVAL/INSTALLATION [(E)]

id0920007044x2

Warning

• Handling the air bag module improperly can accidentally operate (deploy) the air bag module, which may seriously injure you. Read the SRS air bag system service warnings and cautions before handling the air bag module. (See AIR BAG SYSTEM SERVICE WARNINGS [TWO-STEP DEPLOYMENT CONTROL SYSTEM (E)].) (See AIR BAG SYSTEM SERVICE CAUTIONS [TWO-STEP DEPLOYMENT CONTROL SYSTEM (E)].)

Note

• The GPS antenna is integrated with TEL antenna No.1. (with emergency call system)

With Emergency Call System

1. Remove the selector lever knob. (See SELECTOR LEVER REMOVAL/INSTALLATION [A71M].)

2. Disconnect the negative lead-acid battery terminal and wait for 1 min or more. (See NEGATIVE LEAD-ACID BATTERY TERMINAL DISCONNECTION/CONNECTION.)

3. Remove the following parts:

(1) Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)

(2) Console panel (See CONSOLE PANEL REMOVAL/INSTALLATION.)

(3) Rear console (See REAR CONSOLE REMOVAL/INSTALLATION.)

(4) Console bracket (See CONSOLE BRACKET REMOVAL/INSTALLATION.)

(5) Front console upper panel (See FRONT CONSOLE UPPER PANEL REMOVAL/INSTALLATION.)

(6) Console side panel (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION.)

(7) Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION.)

(8) Side wall (See SIDE WALL REMOVAL/INSTALLATION.)

(9) Front console (See FRONT CONSOLE REMOVAL/INSTALLATION.)

(10) Passenger-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(11) Driver-side scuff plate (See SCUFF PLATE REMOVAL/INSTALLATION.)

(12) Driver-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(13) Driver-side lower panel (See DRIVER-SIDE LOWER PANEL REMOVAL/INSTALLATION.)

(14) Driver-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(15) Knee air bag module (See KNEE AIR BAG MODULE REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM (E)].)

(16) Center lower panel (See CENTER LOWER PANEL REMOVAL/INSTALLATION.)

(17) Upper column cover (See COLUMN COVER REMOVAL/INSTALLATION.)

(18) Meter hood (See METER HOOD REMOVAL/INSTALLATION.)

(19) Instrument cluster (See INSTRUMENT CLUSTER REMOVAL/INSTALLATION [(E)].)

4. Remove the screw.

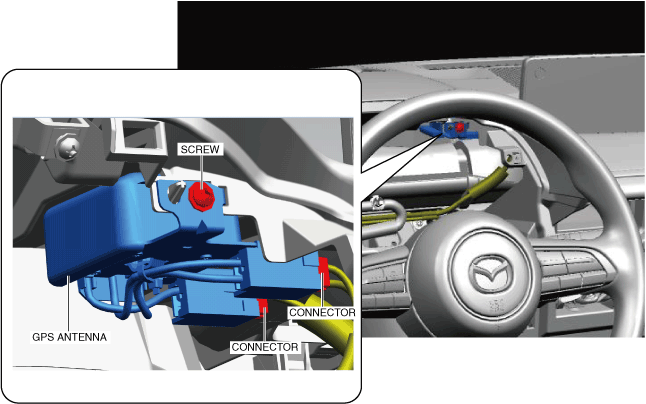

a30zzw00000391

5. Remove the GPS antenna from the dashboard.

6. Disconnect the connectors.

7. Install in the reverse order of removal.

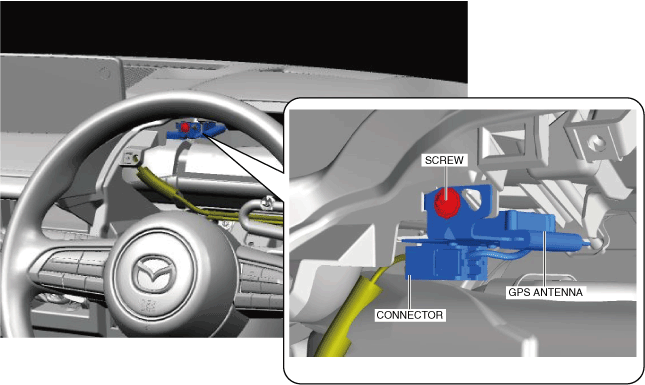

Without Emergency Call System
