BODY CONTROL MODULE (BCM) [(E)]

id0940007008x2


Purpose

•  The body control module (BCM) performs control of multiple systems such as the exterior lighting system and the windshield wiper and washer system based on the input signals such as from the light switch and the wiper and washer switch.

Function

•  The body control module (BCM) control content is as follows.

Control table

—: Not applicable

Control

Content

Reference
Advanced keyless entry system
The body control module (BCM) performs control of the advanced keyless entry system based on the request signal from the LF control unit.
(See ADVANCED KEYLESS ENTRY SYSTEM.)
Keyless entry system
The body control module (BCM) performs control of the keyless entry system based on the request signal from the LF control unit.
(See KEYLESS ENTRY SYSTEM.)
Push button start system
The body control module (BCM) performs control of the push button start system based on the ID data from the remote transmitter.
(See PUSH BUTTON START SYSTEM [(E)].)
Immobilizer system
The body control module (BCM) performs control of the immobilizer system based on the signal from the LF control unit.
(See IMMOBILIZER SYSTEM.)
Exterior lighting system
The body control module (BCM) illuminates/turns off the exterior lights such as headlights based on the signal from the light switch.
(See EXTERIOR LIGHTING SYSTEM [(E)].)
Auto light system
The body control module (BCM) performs control of the auto light system based on the signal from the light switch and auto light sensor.
(See AUTO LIGHT SYSTEM [(E)].)
Turn light system
The body control module (BCM) performs control of the turn light system based on the signal from the turn switch.
(See TURN LIGHT SYSTEM.)
Front map light
The body control module (BCM) performs control of the front map light based on the signals from the door latch switch and interior light door open interlock off switch.
(See FRONT MAP LIGHT.)
Rear map light
The body control module (BCM) performs control of the rear map light based on the signals from the door latch switch and interior light door open interlock off switch.
(See REAR MAP LIGHT.)
Coming home light
The body control module (BCM) performs control of the coming home light based on the signals from the light switch and the door latch switch.
(See COMING HOME LIGHT.)
Leaving home light
The body control module (BCM) performs control of the leaving home light based on the signals from the light switch and the remote transmitter.
(See LEAVING HOME LIGHT.)
Power door system
The body control module (BCM) performs control of the power door lock system based on the signal from the door lock switch.
(See POWER DOOR AND CHARGE LID LOCK SYSTEM [(E)].)
Liftgate opener system
The body control module (BCM) performs control of the liftgate opener system based on the signal from the liftgate opener switch.
(See LIFTGATE OPENER SYSTEM.)
Windshield wiper and washer system
The body control module (BCM) performs control of the windshield wiper and washer system based on the signal from the wiper and washer switch.
(See WINDSHIELD WIPER/WASHER SYSTEM.)
Auto wiper system
The body control module (BCM) performs control of the auto wiper system based on the signal from the wiper and washer switch and rain sensor.
(See AUTO WIPER SYSTEM.)
Rear wiper and washer system
The body control module (BCM) performs control of the rear wiper and washer system based on the signal from the wiper and washer switch.
(See REAR WIPER/WASHER SYSTEM.)
Blower system
The body control module (BCM) performs control of the blower relay.
(See BLOWER SYSTEM.)
Rear window defogger
The body control module (BCM) performs control of the rear window defogger relay based on the signal from the rear window defogger switch.
(See REAR WINDOW DEFOGGER/HEATED OUTER MIRROR/WINDSHIELD WIPER DE-ICER.)
Horn
The body control module (BCM) performs control of the horn relay based on the horn switch operation.
—
Theft-deterrent system
The body control module (BCM) controls the theft-deterrent system based on the signals from the door latch switch, liftgate latch switch, hood latch switch, and door lock-link switch.
(See THEFT-DETERRENT SYSTEM [(E)].)


Dark current reduction function

•  When a certain period of time elapses after the ignition is switched OFF, the body control module (BCM) cuts off the power supply input circuit of the CAN communication and the body control module (BCM) and reduces dark current to prevent battery discharge.
•  When the dark current reduction function is operated, the body control module (BCM) sends the following requests.
―  Auxiliary device power charging request (See AUXILIARY DEVICE POWER CHARGING SYSTEM.)
―  Screen display request (See MULTI-INFORMATION DISPLAY [(E)].)
―  Warning sound activation request (See NOTIFICATION AND WARNING SPEAKER [(E)].)


Structure/Construction

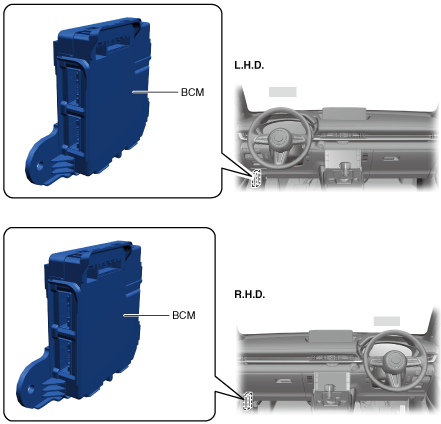

•  The body control module (BCM) is located on the inside of the front side trim (LH).
a30zzn00000728
