SEATS LOCATION INDEX
id091300300000

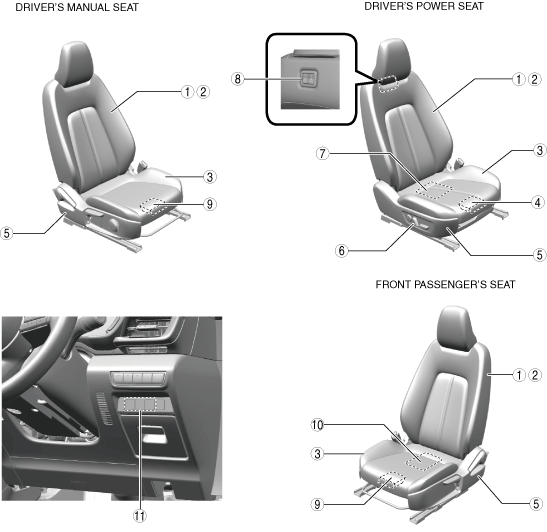

Front seat
a30zzw00005905
|
|
1
|
Front seat
(See SLIDE MOTOR INSPECTION.)
(See RECLINER MOTOR INSPECTION.)
(See TILT MOTOR INSPECTION.)
(See LIFT MOTOR INSPECTION.)
|
|
2
|
Front seat back
|
|
3
|
Front seat cushion
|
|
4
|
Position memory control module (With position memory system)
Power walk in control module (With position memory system)
Front seat heater unit (With position memory system)
|
|
5
|
Front seat side cover
|
|
6
|
Power seat switch
(See POWER SEAT SWITCH INSPECTION.)
|
|
7
|
Occupancy sensor (driver’s seat)
(See OCCUPANCY SENSOR INSPECTION.)
|
|
8
|
Walk in switch (With position memory system)
(See WALK IN SWITCH INSPECTION.)
|
|
9
|
Front seat warmer unit (manual seat)
|
|
10
|
Occupancy sensor (front passenger's seat)
(See OCCUPANCY SENSOR INSPECTION.)
|
|
11
|
Position memory switch (With position memory system)
|

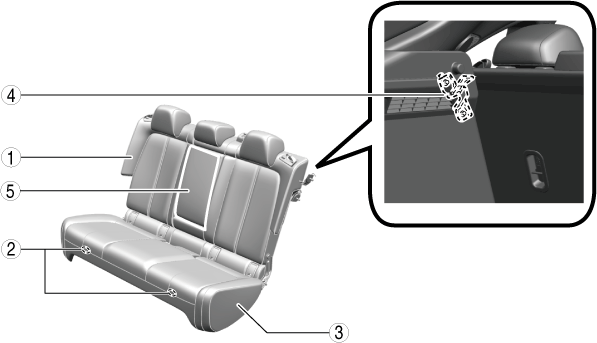

Rear seat
a30zzw00006510
|
|
1
|
Rear seat back
(See REAR SEAT BACK TRIM REMOVAL.)
|
|
2
|
Rear seat cushion lock
|
|
3
|
Rear seat cushion
|
|
4
|
Rear seat back striker
|
|
5
|
Rear seat center armrest
|
