HVAC CONTROL SYSTEM LOCATION INDEX [MANUAL AIR CONDITIONER]

id0740a2803600

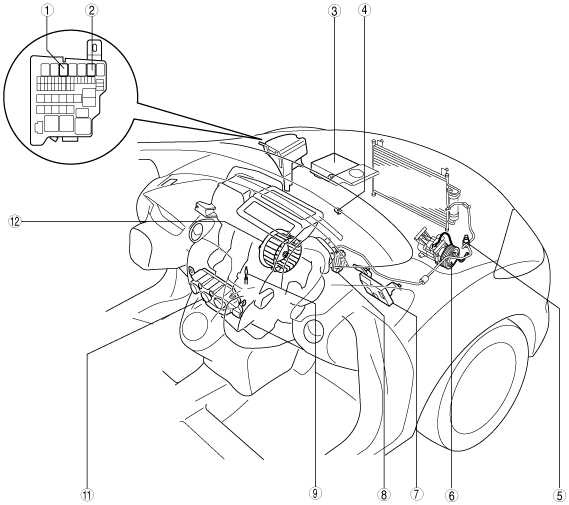

L.H.D. (ZJ, ZY)

am2zzw00002993

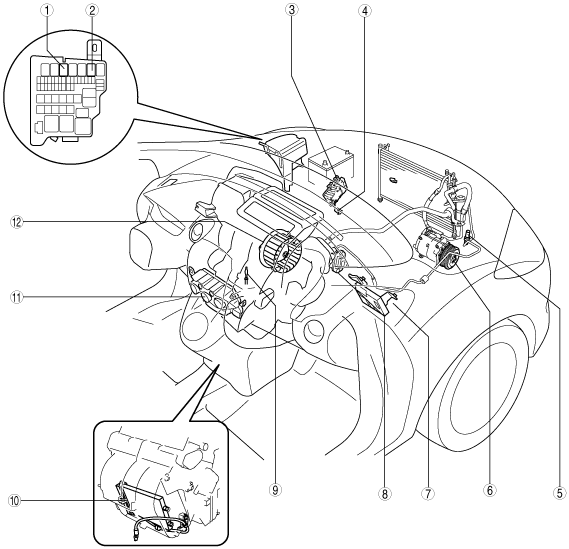

L.H.D. (MZ-CD 1.4 DI Turbo)

am2zzw00002994

1	A/C relay (See RELAY LOCATION.) (See RELAY INSPECTION.)
2	Blower relay (See RELAY LOCATION.) (See RELAY INSPECTION.)
3	PCM (See PCM REMOVAL/INSTALLATION [ZJ, ZY].) (See PCM REMOVAL/INSTALLATION [MZ-CD 1.4 DI Turbo].) (See PCM INSPECTION [ZJ, ZY].) (See PCM INSPECTION [MZ-CD 1.4 DI Turbo].) (See PCM CONFIGURATION [ZJ, ZY].) (See PCM CONFIGURATION [MZ-CD 1.4 DI Turbo].)
4	Engine coolant temperature sensor (See ENGINE COOLANT TEMPERATURE (ECT) SENSOR REMOVAL/INSTALLATION [ZJ, ZY].) (See ENGINE COOLANT TEMPERATURE (ECT) SENSOR REMOVAL/INSTALLATION [MZ-CD 1.4 DI Turbo].) (See ENGINE COOLANT TEMPERATURE (ECT) SENSOR INSPECTION [ZJ, ZY].) (See ENGINE COOLANT TEMPERATURE (ECT) SENSOR INSPECTION [MZ-CD 1.4 DI Turbo].)
5	Refrigerant pressure switch (ZJ, ZY) (See REFRIGERANT PRESSURE SWITCH REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER].) (See REFRIGERANT PRESSURE SWITCH INSPECTION [MANUAL AIR CONDITIONER].)
	Refrigerant pressure sensor (MZ-CD 1.4 DI Turbo) (See REFRIGERANT PRESSURE SENSOR REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER].) (See REFRIGERANT PRESSURE SENSOR INSPECTION [MANUAL AIR CONDITIONER].)
6	Magnetic clutch (See MAGNETIC CLUTCH DISASSEMBLY/ASSEMBLY [MANUAL AIR CONDITIONER].) (See MAGNETIC CLUTCH ADJUSTMENT [MANUAL AIR CONDITIONER].) (See MAGNETIC CLUTCH INSPECTION [MANUAL AIR CONDITIONER].)
7	BCM (See BODY CONTROL MODULE (BCM) REMOVAL/INSTALLATION.) (See BODY CONTROL MODULE (BCM) INSPECTION.) (See BODY CONTROL MODULE (BCM) CONFIGURATION.) (See BODY CONTROL MODULE (BCM) BRACKET REMOVAL/INSTALLATION.)
8	Resistor (See RESISTOR REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER].) (See RESISTOR INSPECTION [MANUAL AIR CONDITIONER].)
9	Evaporator temperature sensor (See EVAPORATOR TEMPERATURE SENSOR REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER].) (See EVAPORATOR TEMPERATURE SENSOR INSPECTION [MANUAL AIR CONDITIONER].)
10	PTC heater (MZ-CD 1.4 DI Turbo) (See PTC (POSITIVE TEMPERATURE COEFFICIENT) HEATER REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER].) (See PTC (POSITIVE TEMPERATURE COEFFICIENT) HEATER INSPECTION [MANUAL AIR CONDITIONER].)
11	Climate control unit (See CLIMATE CONTROL UNIT REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER].) (See CLIMATE CONTROL UNIT DISASSEMBLY/ASSEMBLY [MANUAL AIR CONDITIONER].) (See CLIMATE CONTROL UNIT INSPECTION [MANUAL AIR CONDITIONER].) (See FAN SWITCH INSPECTION [MANUAL AIR CONDITIONER].)
12	Blower motor (See BLOWER MOTOR REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER].) (See BLOWER MOTOR INSPECTION [MANUAL AIR CONDITIONER].)

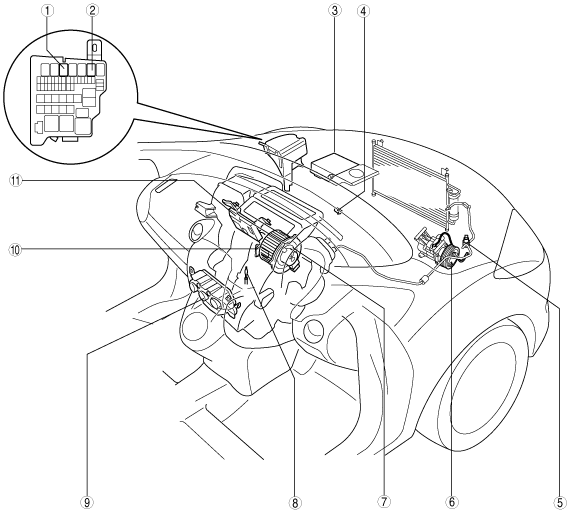

R.H.D. (ZJ, ZY)

adejjw00001963

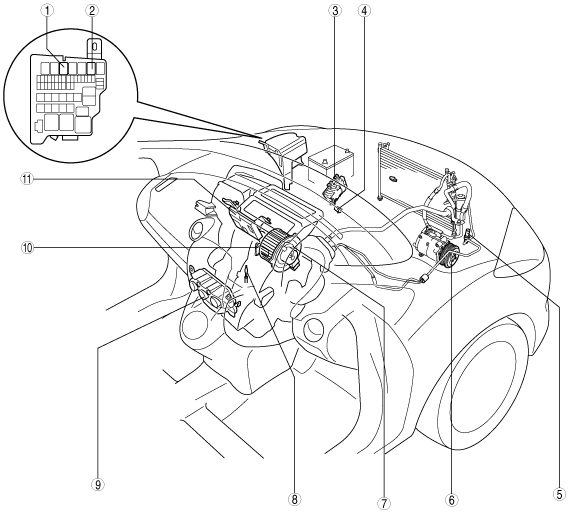

R.H.D. (MZ-CD 1.4 DI Turbo)

am2zzw00002995

1	A/C relay (See RELAY LOCATION.) (See RELAY INSPECTION.)
2	Blower relay (See RELAY LOCATION.) (See RELAY INSPECTION.)
3	PCM (See PCM REMOVAL/INSTALLATION [ZJ, ZY].) (See PCM REMOVAL/INSTALLATION [MZ-CD 1.4 DI Turbo].) (See PCM INSPECTION [ZJ, ZY].) (See PCM INSPECTION [MZ-CD 1.4 DI Turbo].) (See PCM CONFIGURATION [ZJ, ZY].) (See PCM CONFIGURATION [MZ-CD 1.4 DI Turbo].)
4	Engine coolant temperature sensor (See ENGINE COOLANT TEMPERATURE (ECT) SENSOR REMOVAL/INSTALLATION [ZJ, ZY].) (See ENGINE COOLANT TEMPERATURE (ECT) SENSOR REMOVAL/INSTALLATION [MZ-CD 1.4 DI Turbo].) (See ENGINE COOLANT TEMPERATURE (ECT) SENSOR INSPECTION [ZJ, ZY].) (See ENGINE COOLANT TEMPERATURE (ECT) SENSOR INSPECTION [MZ-CD 1.4 DI Turbo].)
5	Refrigerant pressure switch (ZJ, ZY) (See REFRIGERANT PRESSURE SWITCH REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER].) (See REFRIGERANT PRESSURE SWITCH INSPECTION [MANUAL AIR CONDITIONER].)
	Refrigerant pressure sensor (MZ-CD 1.4 DI Turbo) (See REFRIGERANT PRESSURE SENSOR REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER].) (See REFRIGERANT PRESSURE SENSOR INSPECTION [MANUAL AIR CONDITIONER].)
6	Magnetic clutch (See MAGNETIC CLUTCH DISASSEMBLY/ASSEMBLY [MANUAL AIR CONDITIONER].) (See MAGNETIC CLUTCH ADJUSTMENT [MANUAL AIR CONDITIONER].) (See MAGNETIC CLUTCH INSPECTION [MANUAL AIR CONDITIONER].)
7	Blower motor (See BLOWER MOTOR REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER].) (See BLOWER MOTOR INSPECTION [MANUAL AIR CONDITIONER].)
8	Evaporator temperature sensor (See EVAPORATOR TEMPERATURE SENSOR REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER].) (See EVAPORATOR TEMPERATURE SENSOR INSPECTION [MANUAL AIR CONDITIONER].)
9	Climate control unit (See CLIMATE CONTROL UNIT REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER].) (See CLIMATE CONTROL UNIT DISASSEMBLY/ASSEMBLY [MANUAL AIR CONDITIONER].) (See CLIMATE CONTROL UNIT INSPECTION [MANUAL AIR CONDITIONER].) (See FAN SWITCH INSPECTION [MANUAL AIR CONDITIONER].)
10	Resistor (See RESISTOR REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER].) (See RESISTOR INSPECTION [MANUAL AIR CONDITIONER].)
11	BCM (See BODY CONTROL MODULE (BCM) REMOVAL/INSTALLATION.) (See BODY CONTROL MODULE (BCM) INSPECTION.) (See BODY CONTROL MODULE (BCM) CONFIGURATION.) (See BODY CONTROL MODULE (BCM) BRACKET REMOVAL/INSTALLATION.)
