LIGHTING SYSTEMS LOCATION INDEX

id091800463300

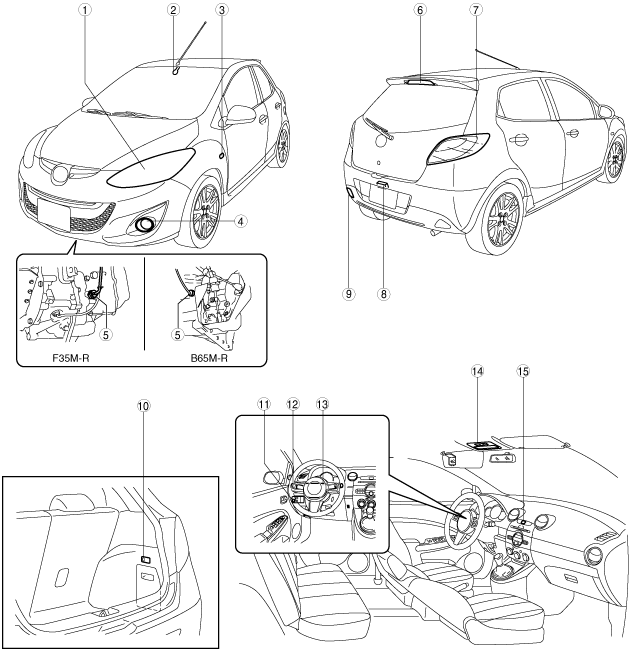

L.H.D.

am2zzw00005611

1	Front combination light (See FRONT COMBINATION LIGHT REMOVAL/INSTALLATION.) (See HEADLIGHT AIMING.) (See HEADLIGHT BULB REMOVAL/INSTALLATION.) (See PARKING LIGHT BULB REMOVAL/INSTALLATION.) (See FRONT TURN LIGHT BULB REMOVAL/INSTALLATION.)
2	Auto light sensor (with auto light system) (See RAIN SENSOR REMOVAL/INSTALLATION.) (See RAIN SENSOR INITIAL SETTING.) (See AUTO LIGHT ILLUMINATION LEVEL SETTING.)
3	Side turn light (See SIDE TURN LIGHT REMOVAL/INSTALLATION.)
4	Front fog light (See FRONT FOG LIGHT REMOVAL/INSTALLATION.) (See FRONT FOG LIGHT BULB REMOVAL/INSTALLATION.) (See FRONT FOG LIGHT AIMING.)
5	Back-up light switch (See BACK-UP LIGHT SWITCH INSPECTION.)
6	High-mount brake light (See HIGH MOUNT BRAKE LIGHT REMOVAL/INSTALLATION.)
7	Rear combination light (See REAR COMBINATION LIGHT REMOVAL/INSTALLATION.) (See REAR COMBINATION LIGHT BULB REMOVAL/INSTALLATION.)
8	License plate light (See LICENSE PLATE LIGHT REMOVAL/INSTALLATION.) (See LICENSE PLATE LIGHT BULB REMOVAL/INSTALLATION.)
9	Rear fog light (See REAR FOG LIGHT REMOVAL/INSTALLATION.) (See REAR FOG LIGHT BULB REMOVAL/INSTALLATION.)
10	Cargo compartment light (See CARGO COMPARTMENT LIGHT REMOVAL/INSTALLATION.) (See CARGO COMPARTMENT LIGHT BULB REMOVAL/INSTALLATION.) (See CARGO COMPARTMENT LIGHT INSPECTION.)
11	Headlight leveling switch (See HEADLIGHT LEVELING SWITCH REMOVAL/INSTALLATION.) (See HEADLIGHT LEVELING SWITCH INSPECTION.)
12	Light switch (See LIGHT SWITCH REMOVAL/INSTALLATION.) (See LIGHT SWITCH INSPECTION.) (See FOG LIGHT SWITCH INSPECTION.)
13	Combination switch (See COMBINATION SWITCH REMOVAL/INSTALLATION.) (See COMBINATION SWITCH DISASSEMBLY/ASSEMBLY.)
14	Interior light (See INTERIOR LIGHT REMOVAL/INSTALLATION.) (See INTERIOR LIGHT INSPECTION.) (See INTERIOR LIGHT BULB REMOVAL/INSTALLATION.)
15	Hazard warning switch (See HAZARD WARNING SWITCH REMOVAL/INSTALLATION.) (See HEADLIGHT LEVELING SWITCH INSPECTION.)

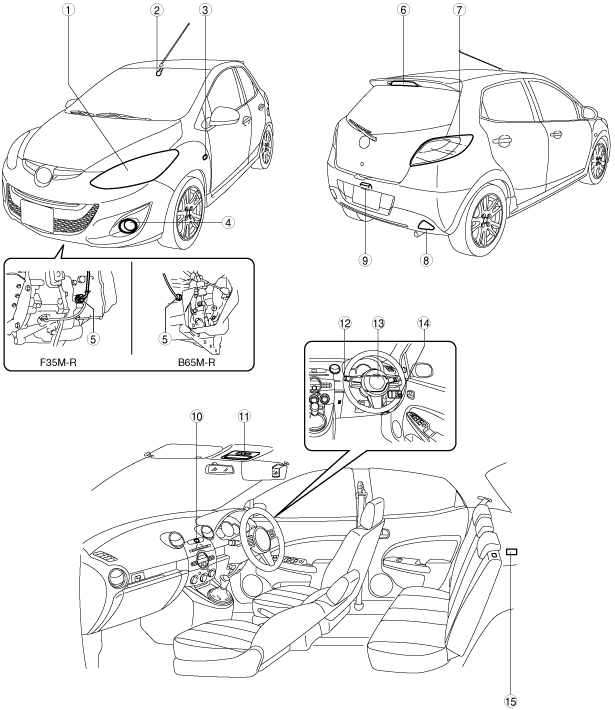

R.H.D.

am2zzw00005612

1	Front combination light (See FRONT COMBINATION LIGHT REMOVAL/INSTALLATION.) (See HEADLIGHT AIMING.) (See HEADLIGHT BULB REMOVAL/INSTALLATION.) (See PARKING LIGHT BULB REMOVAL/INSTALLATION.) (See FRONT TURN LIGHT BULB REMOVAL/INSTALLATION.)
2	Auto light sensor (with auto light system) (See RAIN SENSOR REMOVAL/INSTALLATION.) (See RAIN SENSOR INITIAL SETTING.) (See AUTO LIGHT ILLUMINATION LEVEL SETTING.)
3	Side turn light (See SIDE TURN LIGHT REMOVAL/INSTALLATION.)
4	Front fog light (See FRONT FOG LIGHT REMOVAL/INSTALLATION.) (See FRONT FOG LIGHT BULB REMOVAL/INSTALLATION.) (See FRONT FOG LIGHT AIMING.)
5	Back-up light switch (See BACK-UP LIGHT SWITCH INSPECTION.)
6	High-mount brake light (See HIGH MOUNT BRAKE LIGHT REMOVAL/INSTALLATION.)
7	Rear combination light (See REAR COMBINATION LIGHT REMOVAL/INSTALLATION.) (See REAR COMBINATION LIGHT BULB REMOVAL/INSTALLATION.)
8	Rear fog light (See REAR FOG LIGHT REMOVAL/INSTALLATION.) (See REAR FOG LIGHT BULB REMOVAL/INSTALLATION.)
9	License plate light (See LICENSE PLATE LIGHT REMOVAL/INSTALLATION.) (See LICENSE PLATE LIGHT BULB REMOVAL/INSTALLATION.)
10	Hazard warning switch (See HAZARD WARNING SWITCH REMOVAL/INSTALLATION.) (See HEADLIGHT LEVELING SWITCH INSPECTION.)
11	Interior light (See INTERIOR LIGHT REMOVAL/INSTALLATION.) (See INTERIOR LIGHT INSPECTION.) (See INTERIOR LIGHT BULB REMOVAL/INSTALLATION.)
12	Light switch (See LIGHT SWITCH REMOVAL/INSTALLATION.) (See LIGHT SWITCH INSPECTION.) (See FOG LIGHT SWITCH INSPECTION.)
13	Combination switch (See COMBINATION SWITCH REMOVAL/INSTALLATION.) (See COMBINATION SWITCH DISASSEMBLY/ASSEMBLY.)
14	Headlight leveling switch (See HEADLIGHT LEVELING SWITCH REMOVAL/INSTALLATION.) (See HEADLIGHT LEVELING SWITCH INSPECTION.)
15	Cargo compartment light (See CARGO COMPARTMENT LIGHT REMOVAL/INSTALLATION.) (See CARGO COMPARTMENT LIGHT BULB REMOVAL/INSTALLATION.) (See CARGO COMPARTMENT LIGHT INSPECTION.)
