DASHBOARD INSTALLATION [(E)]

id0917008501x2

Replacement part

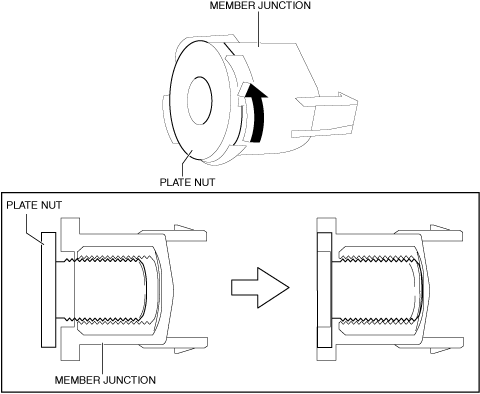

1.  Rotate the plate nuts by hand in the direction of the arrow shown in the figure until they are seated.

Caution

•  After removing the dashboard, the plate nuts of the member junctions will have lifted. If the dashboard is removed with the plate nuts lifted, the plate nuts may contact the vehicle body, causing a dent or damage to the coating film, and the dashboard installation will be difficult. Before inserting the dashboard into the cabin, adjust the plate nuts of the member junctions.

•  If the plate nuts are tightened completely when installing bolts, the plate nuts may not move resulting in damage to the member junction tab and the vehicle body. After seating the plate nuts, verify that they can be rotated by hand.

Note

•  If the plate nuts cannot be rotated by hand, loosen the plate nuts using a hexagonal wrench.

am3zzw00029193

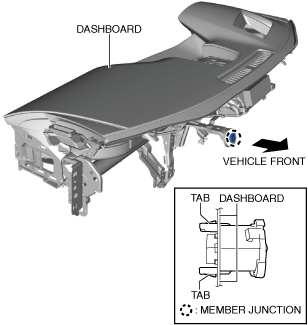

2.  Verify that the member junction tabs are engaged with the dashboard.

Caution

•  If the member junction tabs become disengaged from the dashboard when inserting the dashboard into the cabin, the member junction could be damaged. Before inserting the dashboard into the cabin, verify that the member junction tabs are engaged with the dashboard.

am3zzw00029194

3.  Insert the dashboard from the front driver-side door or front passenger-side door opening.

4.  Move the dashboard in the direction of the arrow shown in the figure, align it with the guides on the body panel, and set it.

am3zzw00029195

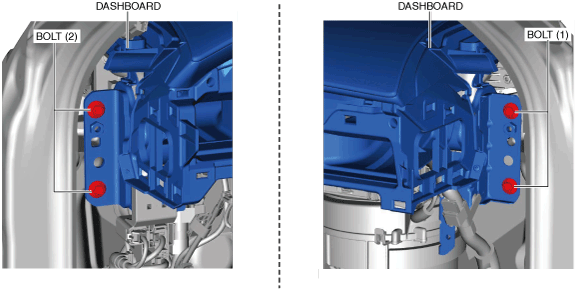

5.  Tighten the bolts (1) temporarily.

am3zzw00029196

6.  Tighten the bolts (2) temporarily.

7.  Tighten the bolt temporarily.

Caution

•  If the bolts are reused, the plate nuts of the member junctions may not move causing damage to the member junction tabs and the vehicle body. Always replace the bolts with new ones.

am3zzw00024115

8.  Install the bolt (1).

am3zzw00029197

9.  Install the bolt (2).

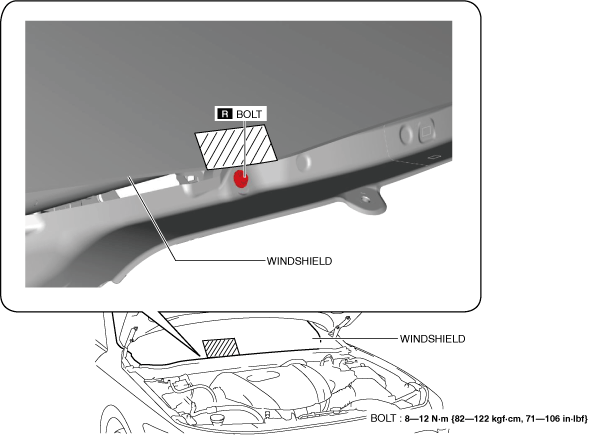

10.  Install the bolt.

am3zzw00024116

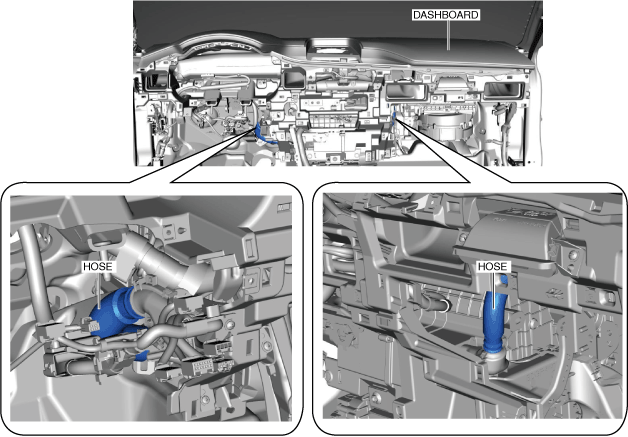

11.  Install the hose.

am3zzw00022000

12.  Install the bolt (1).

am3zzw00030974

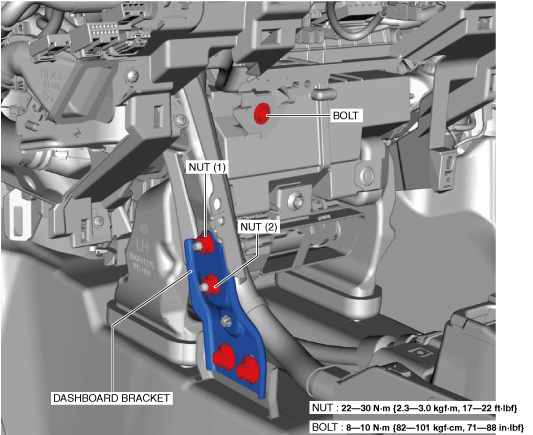

13.  Install the bolt (2).

14.  Install the nut (1).

am3zzw00030975

15.  Install the nut (2).

16.  Install the bolt.

17.  Install the dashboard bracket.

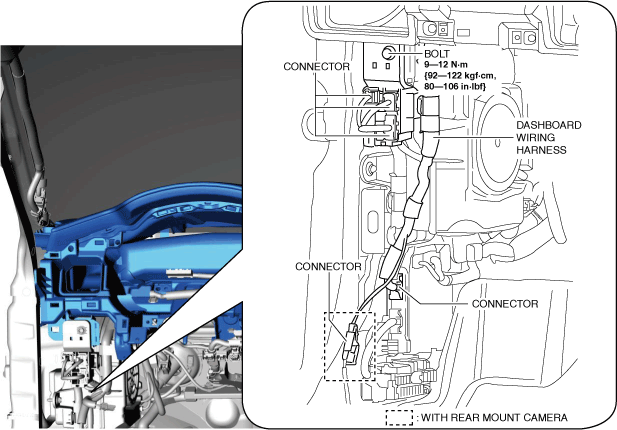

18.  Connect the connectors.

am3zzw00024119

19.  Install the bolt.

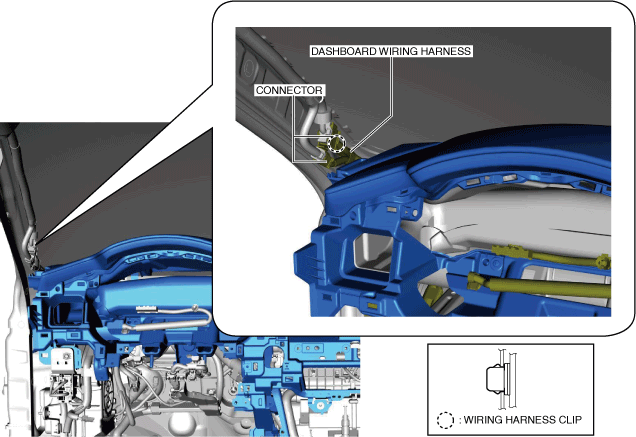

20.  Connect the connectors and install wiring harness clip.

am3zzw00024120

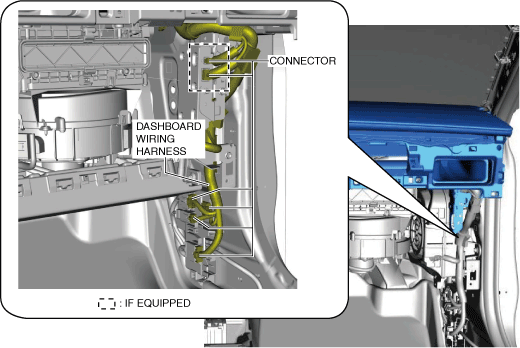

21.  Connect the connectors.

am3zzw00029200

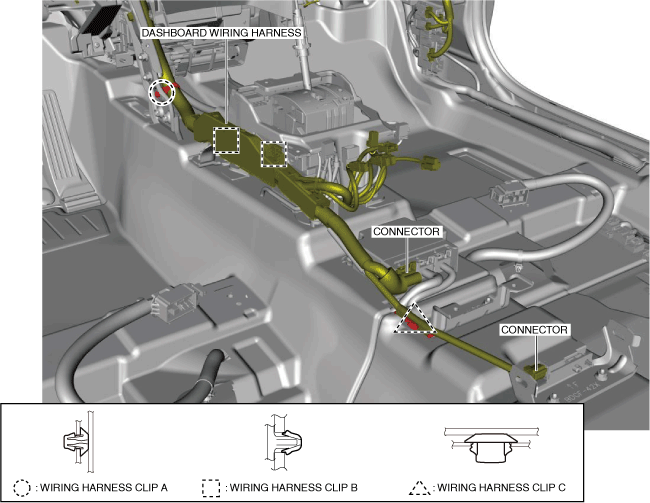

22.  Connect the connector and install wiring harness clips A, B and C.

am3zzw00024122

23.  Install the following parts:

(1)  Cowl grille (See COWL GRILLE REMOVAL/INSTALLATION.)

(2)  Windshield wiper arm and blade (See WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION.)

(3)  Rear heat duct No.1 (See REAR HEAT DUCT REMOVAL/INSTALLATION [(E)].)

(4)  Dashboard side cover (See DASHBOARD SIDE COVER REMOVAL/INSTALLATION.)

(5)  Climate control unit (See CLIMATE CONTROL UNIT REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER (E)].) (See CLIMATE CONTROL UNIT REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER (E)].)

(6)  DVD/CD player (with DVD/CD player) (See DVD/CD PLAYER REMOVAL/INSTALLATION.)

(7)  CD player (with CD player) (See CD PLAYER REMOVAL/INSTALLATION.)

(8)  Audio panel (with audio panel) (See AUDIO PANEL REMOVAL/INSTALLATION [(E)].)

(9)  Connectivity master unit (CMU) (See CONNECTIVITY MASTER UNIT (CMU) REMOVAL/INSTALLATION.)

(10)  Center display component (See CENTER DISPLAY REMOVAL/INSTALLATION.)

(11)  Center speaker grille (See SPEAKER GRILLE REMOVAL/INSTALLATION.)

(12)  Instrument cluster (See INSTRUMENT CLUSTER REMOVAL/INSTALLATION.)

(13)  Steering wheel and column (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [(E)].)

(14)  Joint cover (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [(E)].)

(15)  Wiper and washer switch (See WIPER AND WASHER SWITCH REMOVAL/INSTALLATION [(E)].)

(16)  Light switch (See LIGHT SWITCH REMOVAL/INSTALLATION [(E)].)

(17)  Clock spring (See CLOCK SPRING REMOVAL/INSTALLATION [STANDARD DEPLOYMENT CONTROL SYSTEM].) (See CLOCK SPRING REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM].)

(18)  Lower column cover (See COLUMN COVER REMOVAL/INSTALLATION.)

(19)  Upper column cover (See COLUMN COVER REMOVAL/INSTALLATION.)

(20)  Steering wheel (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [(E)].)

(21)  Driver-side air bag module (See DRIVER-SIDE AIR BAG MODULE REMOVAL [TWO-STEP DEPLOYMENT CONTROL SYSTEM].) (See DRIVER-SIDE AIR BAG MODULE INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM].) (See DRIVER-SIDE AIR BAG MODULE REMOVAL [STANDARD DEPLOYMENT CONTROL SYSTEM].) (See DRIVER-SIDE AIR BAG MODULE INSTALLATION [STANDARD DEPLOYMENT CONTROL SYSTEM].)

(22)  Driver-side knee air bag module (See KNEE AIR BAG MODULE REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM].) (See KNEE AIR BAG MODULE REMOVAL/INSTALLATION [STANDARD DEPLOYMENT CONTROL SYSTEM].)

(23)  Driver-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION [(E)].)

(24)  Center lower panel (See LOWER PANEL REMOVAL/INSTALLATION [(E)].)

(25)  Rear console (See REAR CONSOLE REMOVAL/INSTALLATION [(E)].)

(26)  Side wall (See SIDE WALL REMOVAL/INSTALLATION.)

(27)  Cup holder (See CUP HOLDER REMOVAL/INSTALLATION.)

(28)  Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION.)

(29)  Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)

(30)  Selector lever knob (ATX) (See SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION.)

(31)  Shift lever knob (MTX) (See SHIFT LEVER REMOVAL/INSTALLATION [C66M-R].) (See SHIFT LEVER REMOVAL/INSTALLATION [F66M-R].)

(32)  Hood release lever (See HOOD RELEASE LEVER AND RELEASE CABLE REMOVAL/INSTALLATION [(E)].)

(33)  Driver-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(34)  Passenger-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION [(E)].)

(35)  Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION.)

(36)  Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

(37)  Passenger-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(38)  Front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(39)  Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(40)  A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)

24.  Connect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)
