BODY CONTROL MODULE (BCM) BRACKET REMOVAL/INSTALLATION [(E)]

id0940000040x2

Warning

• Handling the air bag module improperly can accidentally deploy the air bag module, which may seriously injure you. Read the air bag system service warnings and cautions before handling the air bag module. (See AIR BAG SYSTEM SERVICE WARNINGS [TWO-STEP DEPLOYMENT CONTROL SYSTEM].) (See AIR BAG SYSTEM SERVICE CAUTIONS [TWO-STEP DEPLOYMENT CONTROL SYSTEM].) (See AIR BAG SYSTEM SERVICE WARNINGS [STANDARD DEPLOYMENT CONTROL SYSTEM].) (See AIR BAG SYSTEM SERVICE CAUTIONS [STANDARD DEPLOYMENT CONTROL SYSTEM].)

L.H.D.

1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

2. Remove the following parts:

(1) Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(2) Front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(3) Passenger-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(4) Driver-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(5) Hood release lever (See HOOD RELEASE LEVER AND RELEASE CABLE REMOVAL/INSTALLATION [(E)].)

(6) Driver-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION [(E)].)

(7) Driver-side knee air bag module (See KNEE AIR BAG MODULE REMOVAL/INSTALLATION [STANDARD DEPLOYMENT CONTROL SYSTEM].) (See KNEE AIR BAG MODULE REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM].)

(8) Shift lever knob (MTX) (See SHIFT LEVER REMOVAL/INSTALLATION [C66M-R].) (See SHIFT LEVER REMOVAL/INSTALLATION [F66M-R].)

(9) Selector lever knob (ATX) (See SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION.)

(10) Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)

(11) Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION.)

(12) Cup holder (See CUP HOLDER REMOVAL/INSTALLATION.)

(13) Side wall (See SIDE WALL REMOVAL/INSTALLATION.)

(14) Rear console (See REAR CONSOLE REMOVAL/INSTALLATION [(E)].)

(15) Center lower panel (See LOWER PANEL REMOVAL/INSTALLATION [(E)].)

(16) Driver-side air bag module (See DRIVER-SIDE AIR BAG MODULE REMOVAL [TWO-STEP DEPLOYMENT CONTROL SYSTEM].) (See DRIVER-SIDE AIR BAG MODULE INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM].) (See DRIVER-SIDE AIR BAG MODULE REMOVAL [STANDARD DEPLOYMENT CONTROL SYSTEM].) (See DRIVER-SIDE AIR BAG MODULE INSTALLATION [STANDARD DEPLOYMENT CONTROL SYSTEM].)

(17) Steering wheel (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [(E)].)

(18) Upper column cover (See COLUMN COVER REMOVAL/INSTALLATION.)

(19) Lower column cover (See COLUMN COVER REMOVAL/INSTALLATION.)

(20) Clock spring (See CLOCK SPRING REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM].) (See CLOCK SPRING REMOVAL/INSTALLATION [STANDARD DEPLOYMENT CONTROL SYSTEM].)

(21) Light switch (See LIGHT SWITCH REMOVAL/INSTALLATION [(E)].)

(22) Wiper and washer switch (See WIPER AND WASHER SWITCH REMOVAL/INSTALLATION [(E)].)

(23) Joint cover (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [(E)].)

(24) Steering shaft (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [(E)].)

(25) Cowl side woofer (LH) (See COWL SIDE WOOFER REMOVAL/INSTALLATION [(E)].)

(26) Body control module (BCM) (See BODY CONTROL MODULE (BCM) REMOVAL/INSTALLATION.)

3. While pressing the fuse block tab in the direction of arrow (1) shown in the figure, move the fuse block in the direction of arrow (2) and detach the fuse block tab from the body control module (BCM) bracket.

am3zzw00028096

4. Remove the clips A and B.

5. Remove the bolts.

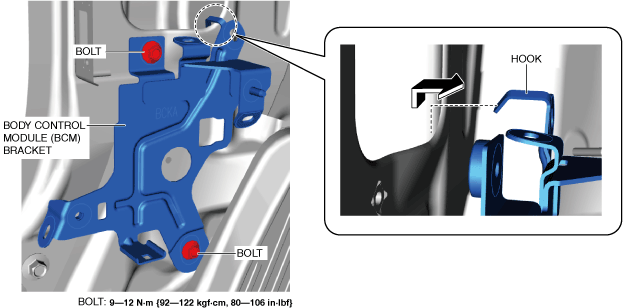

am3zzw00022226

6. Move the body control module (BCM) bracket in the direction of the arrow shown in the figure and detach the body control module (BCM) bracket hook from the body.

7. Remove the body control module (BCM) bracket.

8. Install in the reverse order of removal.

R.H.D.

1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

2. Remove the following parts:

(1) A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)

(2) Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(3) Front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(4) Passenger-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(5) Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

(6) Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION.)

(7) Passenger-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION [(E)].)

(8) Driver-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(9) Hood release lever (See HOOD RELEASE LEVER AND RELEASE CABLE REMOVAL/INSTALLATION [(E)].)

(10) Driver-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION [(E)].)

(11) Driver-side knee air bag module (See KNEE AIR BAG MODULE REMOVAL/INSTALLATION [STANDARD DEPLOYMENT CONTROL SYSTEM].) (See KNEE AIR BAG MODULE REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM].)

(12) Shift lever knob (MTX) (See SHIFT LEVER REMOVAL/INSTALLATION [C66M-R].) (See SHIFT LEVER REMOVAL/INSTALLATION [F66M-R].)

(13) Selector lever knob (ATX) (See SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION.)

(14) Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)

(15) Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION.)

(16) Cup holder (See CUP HOLDER REMOVAL/INSTALLATION.)

(17) Side wall (See SIDE WALL REMOVAL/INSTALLATION.)

(18) Rear console (See REAR CONSOLE REMOVAL/INSTALLATION [(E)].)

(19) Center lower panel (See LOWER PANEL REMOVAL/INSTALLATION [(E)].)

(20) Driver-side air bag module (See DRIVER-SIDE AIR BAG MODULE REMOVAL [TWO-STEP DEPLOYMENT CONTROL SYSTEM].) (See DRIVER-SIDE AIR BAG MODULE INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM].) (See DRIVER-SIDE AIR BAG MODULE REMOVAL [STANDARD DEPLOYMENT CONTROL SYSTEM].) (See DRIVER-SIDE AIR BAG MODULE INSTALLATION [STANDARD DEPLOYMENT CONTROL SYSTEM].)

(21) Steering wheel (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [(E)].)

(22) Upper column cover (See COLUMN COVER REMOVAL/INSTALLATION.)

(23) Lower column cover (See COLUMN COVER REMOVAL/INSTALLATION.)

(24) Clock spring (See CLOCK SPRING REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM].) (See CLOCK SPRING REMOVAL/INSTALLATION [STANDARD DEPLOYMENT CONTROL SYSTEM].)

(25) Light switch (See LIGHT SWITCH REMOVAL/INSTALLATION [(E)].)

(26) Wiper and washer switch (See WIPER AND WASHER SWITCH REMOVAL/INSTALLATION [(E)].)

(27) Joint cover (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [(E)].)

(28) Steering shaft (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [(E)].)

(29) Instrument cluster (See INSTRUMENT CLUSTER REMOVAL/INSTALLATION.)

(30) Center speaker grille (See SPEAKER GRILLE REMOVAL/INSTALLATION.)

(31) Center display component (See CENTER DISPLAY REMOVAL/INSTALLATION.)

(32) Connectivity master unit (CMU) (See CONNECTIVITY MASTER UNIT (CMU) REMOVAL/INSTALLATION.)

(33) Audio panel (with audio panel) (See AUDIO PANEL REMOVAL/INSTALLATION [(E)].)

(34) CD player (with CD player) (See CD PLAYER REMOVAL/INSTALLATION.)

(35) Climate control unit (See CLIMATE CONTROL UNIT REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER (E)].) (See CLIMATE CONTROL UNIT REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER (E)].)

(36) Dashboard side cover (See DASHBOARD SIDE COVER REMOVAL/INSTALLATION.)

(37) Rear heat duct No.1 (See REAR HEAT DUCT REMOVAL/INSTALLATION [(E)].)

(38) Windshield wiper arm and blade (See WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION.)

(39) Cowl grille (See COWL GRILLE REMOVAL/INSTALLATION.)

(40) Dashboard (See DASHBOARD REMOVAL [(E)].) (See DASHBOARD INSTALLATION [(E)].)

(41) Blower unit (See BLOWER UNIT REMOVAL/INSTALLATION [(E)].)

(42) Cowl side woofer (LH) (See COWL SIDE WOOFER REMOVAL/INSTALLATION [(E)].)

(43) Body control module (BCM) (See BODY CONTROL MODULE (BCM) REMOVAL/INSTALLATION.)

am3zzw00027700

4. Remove the clips A and B.

5. Remove the bolts.

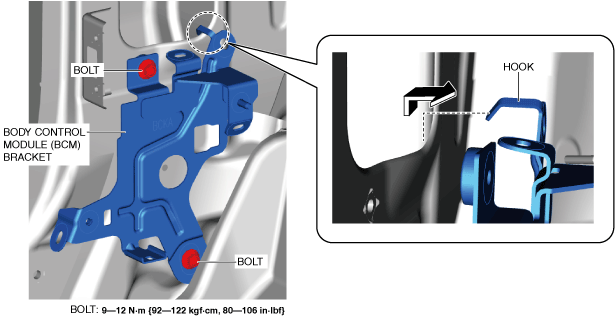

am3zzw00027701

6. Move the body control module (BCM) bracket in the direction of the arrow shown in the figure and detach the body control module (BCM) bracket hook from the body.

7. Remove the body control module (BCM) bracket.

8. Install in the reverse order of removal.
