INTERIOR TRIM LOCATION INDEX
id091700805300
am3zzw00002202
|
1
|
Inner garnish
|
2
|
Meter hood
|
3
|
Dashboard
|
4
|
Dashboard center panel
|
5
|
Dashboard garnish
|
6
|
A-pillar trim
|
7
|
Assist handle
|
8
|
Ventilator grille
|
9
|
Decoration panel
|
10
|
Front side trim
|
11
|
Glove compartment
|
12
|
Console
(See CONSOLE REMOVAL/INSTALLATION.)
(See CONSOLE DISASSEMBLY/ASSEMBLY.)
|
13
|
Side wall
|
14
|
Column cover
|
15
|
Lower panel
|
16
|
Front scuff plate
|
17
|
Front door trim
|

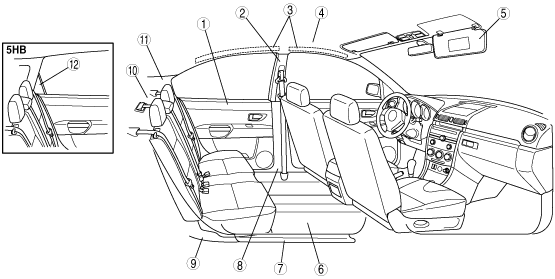

am3zzw00002203
|
1
|
Rear door trim
|
2
|
B-pillar upper trim
|
3
|
Head impact pad
|
4
|
Headliner
|
5
|
Sunvisor
|
6
|
Floor covering
|
7
|
Rear scuff plate
|
8
|
B-pillar lower trim
|
9
|
Tire house trim
|
10
|
Rear package trim
|
11
|
C-pillar trim
|
12
|
Sail garnish
|

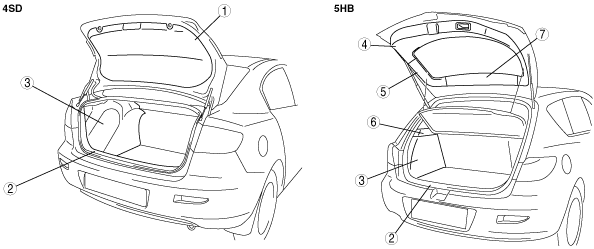

am3zzw00002204
|
1
|
Trunk lid trim
|
2
|
Trunk end trim
|
3
|
Trunk side trim
|
4
|
Liftgate lower trim
|
5
|
Liftgate side trim
|
6
|
Trunk side upper trim
|
7
|
Liftgate upper trim
|
