INSTRUMENTATION/DRIVER INFO. LOCATION INDEX

id092200010200

Interior

am3zzw00012282

1	Instrument cluster (See INSTRUMENT CLUSTER REMOVAL/INSTALLATION.) (See INSTRUMENT CLUSTER DISASSEMBLY/ASSEMBLY.) (See INSTRUMENT CLUSTER INSPECTION.) (See INSTRUMENT CLUSTER CONFIGURATION.) (See INSTRUMENTATION/DRIVER INFO. PERSONALIZATION FEATURES SETTING PROCEDURE.)
2	Information display (See INFORMATION DISPLAY REMOVAL/INSTALLATION.) (See INFORMATION DISPLAY INPUT/OUTPUT CHECK MODE.) (See INFORMATION DISPLAY/MULTI INFORMATION DISPLAY CONFIGURATION.)
3	Multi information display (See MULTI INFORMATION DISPLAY REMOVAL/INSTALLATION.) (See MULTI INFORMATION DISPLAY INSPECTION.) (See INFORMATION DISPLAY/MULTI INFORMATION DISPLAY CONFIGURATION.) (See MULTI INFORMATION DISPLAY MAINTENANCE MONITOR OPERATION PROCEDURE.)
4	Clock switch (See CLOCK SWITCH REMOVAL/INSTALLATION.) (See CLOCK SWITCH INSPECTION.)
5	Parking sensor control module (See PARKING SENSOR CONTROL MODULE REMOVAL/INSTALLATION.) (See PARKING SENSOR CONTROL MODULE INSPECTION.)
6	Parking sensor buzzer (See PARKING SENSOR CONTROL MODULE REMOVAL/INSTALLATION.) (See BEEP SOUND ADJUSTMENT.)
7	Rear vehicle monitoring (RVM) switch (See RVM SWITCH REMOVAL/INSTALLATION.) (See RVM SWITCH INSPECTION.)
8	Fuel gauge sender unit (See FUEL GAUGE SENDER UNIT REMOVAL/INSTALLATION.) (See FUEL GAUGE SENDER UNIT INSPECTION.)
9	Occupancy sensor (See OCCUPANCY SENSOR INSPECTION.)

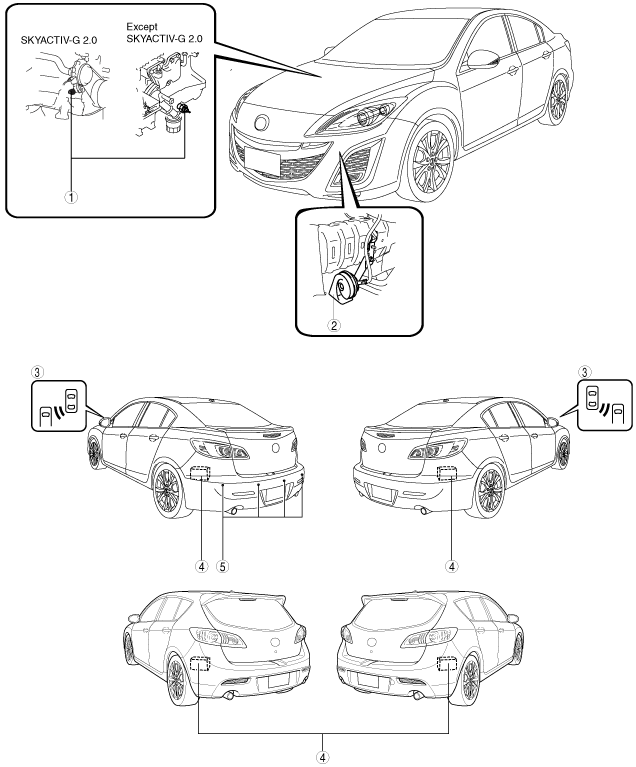

Exterior

am3uuw00007801

1	Oil pressure switch (See OIL PRESSURE SWITCH INSPECTION.)
2	Horn (See HORN REMOVAL/INSTALLATION.)
3	Rear vehicle monitoring (RVM) warning indicator light (See RVM WARNING INDICATOR LIGHT REMOVAL/INSTALLATION.) (See RVM WARNING INDICATOR LIGHT INSPECTION.)
4	Rear vehicle monitoring control module (See REAR VEHICLE MONITORING CONTROL MODULE REMOVAL/INSTALLATION.) (See REAR VEHICLE MONITORING CONTROL MODULE INSPECTION.) (See REAR VEHICLE MONITORING CONTROL MODULE CONFIGURATION.) (See REAR VEHICLE MONITORING BRACKET REMOVAL/INSTALLATION.) (See REAR VEHICLE MONITORING RADAR AIMING.) (See REAR VEHICLE MONITORING BRACKET REMOVAL/INSTALLATION.)
5	Ultrasonic sensor (See ULTRASONIC SENSOR REMOVAL/INSTALLATION.)
