AIR BAG MODULE AND PRE-TENSIONER SEAT BELT DEPLOYMENT PROCEDURES


id081000801100

Warning
•  A live (undeployed) air bag module or pre-tensioner seat belt may accidentally operate (deploy) when it is disposed of and cause serious injury. Do not dispose of a live (undeployed) air bag module and pre-tensioner seat belt. If the SSTs (Deployment tool and Adapter harness) are not available, consult the nearest Mazda representative for assistance.
Caution
•  Deploying the air bag modules and pre-tensioner seat belts inside the vehicle may cause damage to the vehicle interior. When the vehicle is not to be scrapped, always deploy the air bag modules and pre-tensioner seat belts outside the vehicle.
•  If the vehicle is to be scrapped, or when disposing of any air bag modules or pre-tensioner seat belts, operate (deploy) them inside the vehicle by following the deployment procedure below and using the SST (Deployment tool).
•  When disposing of an operated (deployed) air bag module and pre-tensioner seat belt, refer to “AIR BAG MODULE AND PRE-TENSIONER SEAT BELT DISPOSAL PROCEDURES”.

Deployment Procedure for Inside of Vehicle

1.  Inspect the SST (Deployment tool). (See INSPECTION OF SST (DEPLOYMENT TOOL).)

2.  Move the vehicle to an open space, away from strong winds, and close all of the vehicle doors and windows.

3.  Switch the ignition to off.

4.  Disconnect the negative battery cable and wait for 1 min or more.

5.  Follow the procedure below for operating (deploying) the applicable air bag module or pre-tensioner seat belt.


Driver-side Air Bag Module

1.  Remove the driver-side air bag module.

(See DRIVER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION.)

2.  Connect the SST (Adapter harness) to the driver-side air bag module as shown in the figure.

am6zzw00006723

3.  Install the driver-side air bag module.

(See DRIVER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION.)

4.  Connect the SST (Deployment tool) to the SST (Adapter harness).

am6zzw00000955

5.  Connect the SST (Deployment tool) to the battery. Connect the power supply red clip to the positive battery terminal, and the black clip to the negative battery terminal.

6.  Verify that the red lamp on the SST (Deployment tool) is illuminated.

7.  Verify that all persons are standing at least 6 m {20 ft}away from the vehicle.

8.  Press the activation switch on the SST (Deployment tool) to operate (deploy) the driver- side air bag module.

am6zzw00000956

Warning
•  The air bag module is very hot immediately after it is operated (deployed). You can get burned. Do not touch the air bag module for at least 15 min after deployment.

9.  Disconnect the SST (Deployment tool) form the SST (Adapter harness).


Passenger-side Air Bag Module

1.  Remove the glove compartment. (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

2.  Remove the dashboard upper garnish (See DASHBOARD UPPER GARNISH REMOVAL/INSTALLATION.)

3.  Connect the SST (Adapter harness) to the passenger-side air bag module as shown in the figure.

am6zzw00006743

4.  Connect the SST (Deployment tool) to the SST (Adapter harness).

am6zzw00000958

5.  Connect the SST (Deployment tool) to the battery. Connect the power supply red clip to the positive battery terminal, and the black clip to the negative battery terminal.

6.  Verify that the red lamp on the SST (Deployment tool) is illuminated.

7.  Verify that all persons are standing at least 6 m {20 ft}away from the vehicle.

8.  Press the activation switch on the SST (Deployment tool) to operate (deploy) the passenger-side air bag module.

am6zzw00000956

Warning
•  The air bag module is very hot immediately after it is operated (deployed). You can be burned. Do not touch the air bag module for at least 15 min after deployment.

9.  Disconnect the SST (Deployment tool) form the SST (Adapter harness).


Side Air Bag Module

1.  Disconnect the side air bag module connector.

am6zzw00000959

2.  Connect the SST (Adapter harness) to the side air bag module as shown in the figure.

3.  Connect the SST (Deployment tool) to the SST (Adapter harness).

am6zzw00000960

4.  Connect the SST (Deployment tool) to the battery. Connect the power supply red clip to the positive battery terminal, and the black clip to the negative battery terminal.

5.  Verify that the red lamp on the SST (Deployment tool) is illuminated.

6.  Verify that all persons are standing at least 6 m {20 ft}away from the vehicle.

7.  Press the activation switch on the SST (Deployment tool) to operate (deploy) the side air bag module.

am6zzw00000956

Warning
•  The air bag module is very hot immediately after it is operated (deployed). You can be burned. Do not touch the air bag module for at least 15 min after deployment.

8.  Disconnect the SST (Deployment tool) from the SST (Adapter harness).


Curtain Air Bag Module


4SD

1.  Remove the following parts:

(1)  Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)
(2)  Rear side seat (See REAR SEAT BACK REMOVAL/INSTALLATION [4SD].)
(3)  Tire house trim (See TIRE HOUSE TRIM REMOVAL/INSTALLATION.)

2.  Partially peel back the seaming welt.

3.  Remove the C-pillar trim. (See C-PILLAR TRIM REMOVAL/INSTALLATION.)

4.  Disconnect the curtain air bag module connector.

am6zzw00000961

5.  Connect the SST (Deployment tool) to the SST (Adapter harness).

am6zzw00000955

6.  Connect the SST (Deployment tool) to the battery. Connect the power supply red clip to the positive battery terminal, and the black clip to the negative battery terminal.

7.  Verify that the red lamp on the SST (Deployment tool) is illuminated.

8.  Verify that all persons are standing at least 6 m {20 ft}away from the vehicle.

9.  Press the activation switch on the SST (Deployment tool) to operate (deploy) the curtain air bag module.

am6zzw00000956

Warning
•  The air bag module is very hot immediately after it is operated (deployed). You can be burned. Do not touch the air bag module for at least 15 min after deployment.

10.  Disconnect the SST (Deployment tool) from the SST (Adapter harness).


5HB

1.  Partially peel back the seaming welt.

2.  Remove the rain sensor cover. (Vehicles with auto light/wiper system) (See RAIN SENSOR REMOVAL/INSTALLATION)

3.  Disconnect the rain sensor connector. (Vehicles with auto light/wiper system)

4.  Remove the following parts:

(1)  Sunroof seaming welt (vehicles with sunroof)
(2)  A-pillar trims (See A-PILLAR TRIM REMOVAL/INSTALLATION.)
(3)  Upper anchor of the front seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)
(4)  Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)
(5)  Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)
(6)  B-pillar lower trims (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)
(7)  B-pillar upper trims (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION.)
(8)  Tire house trims (See TIRE HOUSE TRIM REMOVAL/INSTALLATION.)
(9)  Trunk side upper trims (See TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION.)
(10)  Rear seat (See REAR SEAT REMOVAL/INSTALLATION [5HB/WAGON].)
(11)  Lower anchor of the rear seat belt installation bolts (LH) (See REAR SEAT BELT REMOVAL/INSTALLATION [5HB, WGN].)
(12)  C-pillar trims (See C-PILLAR TRIM REMOVAL/INSTALLATION.)

5.  Disconnect the auto-dimming mirror connector. (Vehicles with auto-dimming mirror)

6.  Remove the sunvisors. (See SUNVISOR REMOVAL/INSTALLATION.)

7.  Remove the map light. (See MAP LIGHT REMOVAL/INSTALLATION.)

8.  Remove the assist handle. (See ASSIST HANDLE REMOVAL/INSTALLATION.)

9.  Remove the headliner. (See HEADLINER REMOVAL/INSTALLATION.)

10.  Disconnect the curtain air bag module connector.

am6zzw00000962

11.  Connect the SST (Deployment tool) to the SST (Adapter harness).

am6zzw00000955

12.  Connect the SST (Deployment tool) to the battery. Connect the power supply red clip to the positive battery terminal, and the black clip to the negative battery terminal.

13.  Verify that the red lamp on the SST (Deployment tool) is illuminated.

14.  Verify that all persons are standing at least 6 m {20 ft}away from the vehicle.

15.  Press the activation switch on the SST (Deployment tool) to operate (deploy) the curtain air bag module.

am6zzw00000956

Warning
•  The air bag module is very hot immediately after it is operated (deployed). You can be burned. Do not touch the air bag module for at least 15 min after deployment.

16.  Disconnect the SST (Deployment tool) from the SST (Adapter harness).


WGN

1.  Partially peel back the seaming welt.

2.  Remove the rain sensor cover. (Vehicles with auto light/wiper system) (See RAIN SENSOR REMOVAL/INSTALLATION.)

3.  Disconnect the rain sensor connector. (Vehicles with auto light/wiper system)

4.  Remove the following parts:

(1)  Sunroof seaming welt (vehicles with sunroof)
(2)  A-pillar trims (See A-PILLAR TRIM REMOVAL/INSTALLATION.)
(3)  Upper anchor of the front seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)
(4)  Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)
(5)  Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)
(6)  B-pillar lower trims (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)
(7)  B-pillar upper trims (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION.)
(8)  Tire house trims (See TIRE HOUSE TRIM REMOVAL/INSTALLATION.)
(9)  Trunk side upper trims (See TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION.)
(10)  Rear seat (See REAR SEAT REMOVAL/INSTALLATION [5HB/WAGON].)
(11)  Lower anchor of the rear seat belt installation bolts (LH) (See REAR SEAT BELT REMOVAL/INSTALLATION [5HB, WGN].)
(12)  C-pillar trims (See C-PILLAR TRIM REMOVAL/INSTALLATION.)
(13)  D-pillar trims (See D-PILLAR TRIM REMOVAL/INSTALLATION.)

5.  Disconnect the auto-dimming mirror connector. (Vehicles with auto-dimming mirror)

6.  Remove the sunvisors. (See SUNVISOR REMOVAL/INSTALLATION.)

7.  Remove the map light. (See MAP LIGHT REMOVAL/INSTALLATION.)

8.  Remove the assist handles. (See ASSIST HANDLE REMOVAL/INSTALLATION.)

9.  Remove the headliner. (See HEADLINER REMOVAL/INSTALLATION.)

10.  Disconnect the curtain air bag module connector.

am6zzw00003270

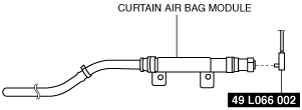

11.  Connect the SST (Adapter harness) to the curtain air bag module as shown in the figure.

12.  Connect the SST (Deployment tool) to the SST (Adapter harness).

am6zzw00000955

13.  Connect the SST (Deployment tool) to the battery. Connect the power supply red clip to the positive battery terminal, and the black clip to the negative battery terminal.

14.  Verify that the red lamp on the SST (Deployment tool) is illuminated.

15.  Verify that all persons are standing at least 6 m {20 ft}away from the vehicle.

16.  Press the activation switch on the SST (Deployment tool) to operate (deploy) the curtain air bag module.

am6zzw00000956

Warning
•  The air bag module is very hot immediately after it is operated (deployed). You can be burned. Do not touch the air bag module for at least 15 min after deployment.

17.  Disconnect the SST (Deployment tool) from the SST (Adapter harness).


Pre-tensioner Seat Belt

1.  Remove the front scuff plate. (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

2.  Remove the rear scuff plate. (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

3.  Remove the B-pillar lower trim. (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)

4.  Remove the pre-tensioner seat belt and connect the SST (Adapter harness) as shown in the figure. (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

am6zzw00000963

5.  Install the pre-tensioner seat belt.

6.  Connect the SST (Deployment tool) to the SST (Adapter harness).

am6zzw00000955

7.  Connect the SST (Deployment tool) to the battery. Connect the power supply red clip to the positive battery terminal, and the black clip to the negative battery terminal.

8.  Verify that the red lamp on the SST (Deployment tool) is illuminated.

9.  Verify that all persons are standing at least 6 m {20 ft}away from the vehicle.

10.  Press the activation switch on the SST (Deployment tool) to operate (deploy) the pre-tensioner seat belt.

am6zzw00000956

Warning
•  The pre-tensioner seat belt is very hot immediately after it is operated (deployed). You can be burned. Do not touch the pre-tensioner seat belt for at least 15 min after deployment.

11.  Disconnect the SST (Deployment tool) from the SST (Adapter harness).


Deployment Procedure for Outside of Vehicle

1.  Inspect the SST (Deployment tool).

(See INSPECTION OF SST (DEPLOYMENT TOOL).)

2.  Switch the ignition to off.

3.  Disconnect the negative battery cable and wait for 1 min or more.

4.  Follow the procedure below for operating (deploying) the applicable air bag module or pre-tensioner seat belt.


Driver-side Air Bag Module

1.  Remove the driver-side air bag module. (See DRIVER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION.)

2.  Install the bolts to the driver-side air bag module as shown in the figure, and connect the SST (Adapter harness).

am6zzw00006725

3.  Place the driver-side air bag module on the center of the tire wheel with the padded surface facing up. To secure the air bag module to the tire wheel, wrap a wire (cross section 1.25 mm2{0.002 in2} or more) through the wheel and the bolt installation holes of the air bag module at least 4 times.

am6zzw00006726

Warning
•  If the air bag module is not properly installed to the tire wheel, serious injury may occur when the module is operated (deployed). When installing the air bag module to the tire wheel, make sure the padded surface is facing up.

4.  Stack three tires without wheels on top of the tire with the driver-side air bag module, and then stack another tire with a wheel on the very top.

am6zzw00000965

5.  Secure the tires with wire.

am6zzw00000966

6.  Connect the SST (Deployment tool) to the SST (Adapter harness).

am6zzw00000967

7.  Connect the SST (Deployment tool) to the battery. Connect the power supply red clip to the positive battery terminal, and the black clip to the negative battery terminal.

8.  Verify that the red lamp on the SST (Deployment tool) is illuminated.

9.  Verify that all persons are standing at least 6 m {20 ft}away from the vehicle.

10.  Press the activation switch on the SST (Deployment tool) to operate (deploy) the driver-side air bag module.

am6zzw00000956

Warning
•  The air bag module is very hot immediately after it is operated (deployed). You can be burned. Do not touch the air bag module for at least 15 min after deployment.

11.  Disconnect the SST (Deployment tool) from the SST (Adapter harness).


Passenger-side Air Bag Module

1.  Remove the following parts:

(1)  Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)
(2)  Center panel upper (See CENTER PANEL UPPER REMOVAL/INSTALLATION.)
(3)  Upper panel (See UPPER PANEL REMOVAL/INSTALLATION.)
(4)  Decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)
(5)  Passenger-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)
(6)  Passenger-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)
(7)  Side panel (See SIDE PANEL REMOVAL/INSTALLATION.)
(8)  Shift knob (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [G35M-R].) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [G66M-R].) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [A26M-R].)
(9)  Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)
(10)  Center panel lower (See CENTER PANEL LOWER REMOVAL/INSTALLATION.)
(11)  Audio unit (Vehicles with audio system) (See AUDIO UNIT REMOVAL/INSTALLATION.)
(12)  Dashboard upper garnish (See DASHBOARD UPPER GARNISH REMOVAL/INSTALLATION.)
(13)  Passenger-side air bag module (See PASSENGER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION.)

2.  Connect the SST (Adapter harness) to the passenger-side air bag module as shown in the figure.

am6zzw00006744

3.  Place the padded surface of the passenger-side air bag module facing the center of the tire as shown in the figure. To secure the air bag module to the tire wheel, wrap a wire (cross section 1.25 mm2{0.002 in2} or more) through the tire and the bolt installation holes at least 4 times as shown in the figure.

am6zzw00000969

Warning
•  If the air bag module is not properly secured to the tire, the tires may fall over by the impact of operation (deployment) and cause serious injury. To prevent this, secure the air bag module properly with the padded surface facing the center of the tire.

4.  Stack the tire with the passenger-side air bag module on top of two tires without wheels. Stack a tire without a wheel on top of the tire with the passenger-side air bag module, and then stack another tire with a wheel on the very top.

am6zzw00000970

5.  Secure the tires with wire.

am6zzw00000966

6.  Connect the SST (Deployment tool) to the SST (Adapter harness).

am6zzw00002599

7.  Connect the SST (Deployment tool) to the battery. Connect the power supply red clip to the positive battery terminal, and the black clip to the negative battery terminal.

8.  Verify that the red lamp on the SST (Deployment tool) is illuminated.

9.  Verify that all persons are standing at least 6 m {20 ft}away from the vehicle.

10.  Press the activation switch on the SST (Deployment tool) to operate (deploy) the passenger-side air bag module.

am6zzw00000956

Warning
•  The air bag module is very hot immediately after it is operated (deployed). You can be burned. Do not touch the air bag module for at least 15 min after deployment.

11.  Disconnect the SST (Deployment tool) from the SST (Adapter harness).


Side Air Bag Module

1.  Remove the front seat. (See FRONT SEAT REMOVAL/INSTALLATION.)

2.  Remove the front seat back trim and pad. (See FRONT SEAT BACK TRIM REMOVAL/INSTALLATION.)

3.  Remove the side air bag module. (See SIDE AIR BAG MODULE REMOVAL/INSTALLATION.)

4.  Install the nuts to the side air bag module as shown in the figure, and connect the SST (Adapter harness).

am2zzw00000370

5.  Place the padded surface of the side air bag module facing the center of the tire as shown in the figure. To secure the air bag module to the tire wheel, wrap a wire (cross section 1.25 mm2{0.002 in2} or more) through the tire and around the bolts at least 4 times.

am6zzw00000971

Warning
•  If the air bag module is not properly secured to the tire, the tires may fall over by the impact of operation (deployment) and cause serious injury. To prevent this, secure the air bag module properly with the padded surface facing the center of the tire.

6.  Stack the tire with the side air bag module on top of two tires without wheels. Stack a tire without a wheel on top of the tire with the side air bag module, and then stack another tire with a wheel on the very top.

am2zzw00000372

7.  Secure the tires with wire.

am6zzw00000966

8.  Connect the SST (Deployment tool) to the SST (Adapter harness).

am2zzw00000490

9.  Connect the SST (Deployment tool) to the battery. Connect the power supply red clip to the positive battery terminal, and the black clip to the negative battery terminal.

10.  Verify that the red lamp on the SST (Deployment tool) is illuminated.

11.  Verify that all persons are standing at least 6 m {20 ft}away from the vehicle.

12.  Press the activation switch on the SST (Deployment tool) to operate (deploy) the side air bag module.

am6zzw00000956

Warning
•  The air bag module is very hot immediately after it is operated (deployed). You can be burned. Do not touch the air bag module for at least 15 min after deployment.

13.  Disconnect the SST (Deployment tool) from the SST (Adapter harness).


Curtain Air Bag Module


4SD

1.  Partially peel back the seaming welt.

2.  Remove the rain sensor cover. (Vehicles with auto light/wiper system) (See RAIN SENSOR REMOVAL/INSTALLATION)

3.  Disconnect the rain sensor connector. (Vehicles with auto light/wiper system)

4.  Remove the following parts:

(1)  Sunroof seaming welt (vehicles with sunroof system)
(2)  A-pillar trims (See A-PILLAR TRIM REMOVAL/INSTALLATION.)
(3)  Upper anchor of the front seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)
(4)  Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)
(5)  Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)
(6)  B-pillar lower trims (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)
(7)  B-pillar upper trims (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION.)
(8)  Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION [4SD].)
(9)  Rear side seat back (See REAR SIDE SEAT BACK REMOVAL/INSTALLATION.)
(10)  Tire house trims (See TIRE HOUSE TRIM REMOVAL/INSTALLATION.)
(11)  C-pillar trims (See C-PILLAR TRIM REMOVAL/INSTALLATION.)

5.  Disconnect the auto-dimming mirror connector. (vehicles with auto-dimming mirror)

6.  Remove the sunvisors. (See SUNVISOR REMOVAL/INSTALLATION.)

7.  Remove the map light. (See MAP LIGHT REMOVAL/INSTALLATION.)

8.  Remove the assist handle. (See ASSIST HANDLE REMOVAL/INSTALLATION.)

9.  Remove the headliner. (See HEADLINER REMOVAL/INSTALLATION.)

10.  Remove the curtain air bag module. (See CURTAIN AIR BAG MODULE REMOVAL/INSTALLATION [4SD].)

11.  Cut off the air bag part of the curtain air bag module at the position shown in the figure.

am6zzw00000972

Warning
•  Be sure not to crush the pipe on the side where it is cut. If it is crushed completely, the interior pressure of the pipe will build up and can cause it to explode during air bag module operation (deployment).

12.  Connect the SST (Adapter harness) to the curtain air bag module as shown in the figure.

am6zzw00003271

13.  Secure the curtain air bag module to the tire, by wrapping a wire (cross section 1.25 mm2{0.002 in2} or more) through the tire and the bolt installation holes at least 4 times as shown in the figure.

am6zzw00000975

Warning
•  If the air bag module is not properly installed to the tire, serious injury may occur when the module is operated (deployed). Make sure to install the air bag module securely.

14.  Stack the tire with the curtain air bag module on top of two tires without wheels. Stack a tire without a wheel on top of the tire with the curtain air bag module, and then stack another tire with a wheel on the very top.

am6zzw00000976

15.  Secure the tires with wire.

am6zzw00000966

16.  Connect the SST (Deployment tool) to the SST (Adapter harness).

am2zzw00000490

17.  Connect the SST (Deployment tool) to the battery. Connect the power supply red clip to the positive battery terminal, and the black clip to the negative battery terminal.

18.  Verify that the red lamp on the SST (Deployment tool) is illuminated.

19.  Verify that all persons are standing at least 6 m {20 ft}away from the vehicle.

20.  Press the activation switch on the SST (Deployment tool) to operate (deploy) the curtain air bag module.

am6zzw00000956

Warning
•  The air bag module is very hot immediately after it is operated (deployed). You can be burned. Do not touch the air bag module for at least 15 min after deployment.

21.  Disconnect the SST (Deployment tool) from the SST (Adapter harness).


5HB

1.  Partially peel back the seaming welt.

2.  Remove the rain sensor cover. (Vehicles with auto light/wiper system) (See RAIN SENSOR REMOVAL/INSTALLATION.)

3.  Disconnect the rain sensor connector. (Vehicles with auto light/wiper system)

4.  Remove the following parts:

(1)  Sunroof seaming welt (vehicles with sunroof)
(2)  A-pillar trims (See A-PILLAR TRIM REMOVAL/INSTALLATION.)
(3)  Upper anchor of the front seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)
(4)  Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)
(5)  Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)
(6)  B-pillar lower trims (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)
(7)  B-pillar upper trims (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION.)
(8)  Tire house trims (See TIRE HOUSE TRIM REMOVAL/INSTALLATION.)
(9)  Trunk side upper trims (See TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION.)
(10)  Rear seat (See REAR SEAT REMOVAL/INSTALLATION [5HB/WAGON].)
(11)  Lower anchor of the rear seat belt installation bolts (LH) (See REAR SEAT BELT REMOVAL/INSTALLATION [5HB, WGN].)
(12)  C-pillar trims (See C-PILLAR TRIM REMOVAL/INSTALLATION.)

5.  Disconnect the auto-dimming mirror connector. (Vehicles with auto-dimming mirror)

6.  Remove the sunvisors. (See SUNVISOR REMOVAL/INSTALLATION.)

7.  Remove the map light. (See MAP LIGHT REMOVAL/INSTALLATION.)

8.  Remove the assist handle. (See ASSIST HANDLE REMOVAL/INSTALLATION.)

9.  Remove the headliner. (See HEADLINER REMOVAL/INSTALLATION.)

10.  Remove the curtain air bag module. (See CURTAIN AIR BAG MODULE REMOVAL/INSTALLATION [5HB].)

11.  Cut off the air bag part of the curtain air bag module at the position shown in the figure.

am6zzw00000973

Warning
•  Be sure not to crush the pipe on the side where it is cut. If it is crushed completely, the interior pressure of the pipe will build up and can cause it to explode during air bag module operation (deployment).

12.  Connect the SST (Adapter harness) to the curtain air bag module as shown in the figure.

am6zzw00003272

13.  Secure the curtain air bag module to the tire, by wrapping a wire (cross section 1.25 mm2{0.002 in2} or more) through the tire and the bolt installation holes at least 4 times as shown in the figure.

am6zzw00000975

Warning
•  If the air bag module is not properly installed to the tire, serious injury may occur when the module is operated (deployed). Make sure to install the air bag module securely.

14.  Stack the tire with the curtain air bag module on top of two tires without wheels. Stack a tire without a wheel on top of the tire with the curtain air bag module, and then stack another tire with a wheel on the very top.

am6zzw00000976

15.  Secure the tires with wire.

am6zzw00000966

16.  Connect the SST (Deployment tool) to the SST (Adapter harness).

am2zzw00000490

17.  Connect the SST (Deployment tool) to the battery. Connect the power supply red clip to the positive battery terminal, and the black clip to the negative battery terminal.

18.  Verify that the red lamp on the SST (Deployment tool) is illuminated.

19.  Verify that all persons are standing at least 6 m {20 ft}away from the vehicle.

20.  Press the activation switch on the SST (Deployment tool) to operate (deploy) the curtain air bag module.

am6zzw00000956

Warning
•  The air bag module is very hot immediately after it is operated (deployed). You can be burned. Do not touch the air bag module for at least 15 min after deployment.

21.  Disconnect the SST (Deployment tool) from the SST (Adapter harness).


WGN

1.  Partially peel back the seaming welt.

2.  Remove the rain sensor cover. (Vehicles with auto light/wiper system) (See RAIN SENSOR REMOVAL/INSTALLATION)

3.  Disconnect the rain sensor connector. (Vehicles with auto light/wiper system)

4.  Remove the following parts:

(1)  Sunroof seaming welt (vehicles with sunroof)
(2)  A-pillar trims (See A-PILLAR TRIM REMOVAL/INSTALLATION.)
(3)  Upper anchor of the front seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)
(4)  Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)
(5)  Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)
(6)  B-pillar lower trims (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)
(7)  B-pillar upper trims (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION.)
(8)  Tire house trims (See TIRE HOUSE TRIM REMOVAL/INSTALLATION.)
(9)  Trunk side upper trims (See TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION.)
(10)  Rear seat (See REAR SEAT REMOVAL/INSTALLATION [5HB/WAGON].)
(11)  Lower anchor of the rear seat belt installation bolts (LH) (See REAR SEAT BELT REMOVAL/INSTALLATION [5HB, WGN].)
(12)  C-pillar trims (See C-PILLAR TRIM REMOVAL/INSTALLATION.)
(13)  D-pillar trims (See D-PILLAR TRIM REMOVAL/INSTALLATION.)

5.  Disconnect the auto-dimming mirror connector. (Vehicles with auto-dimming mirror)

6.  Remove the sunvisors. (See SUNVISOR REMOVAL/INSTALLATION.)

7.  Remove the map light. (See MAP LIGHT REMOVAL/INSTALLATION.)

8.  Remove the assist handles. (See ASSIST HANDLE REMOVAL/INSTALLATION.)

9.  Remove the headliner. (See HEADLINER REMOVAL/INSTALLATION.)

10.  Remove the curtain air bag module. (See CURTAIN AIR BAG MODULE REMOVAL/INSTALLATION [WGN].)

11.  Cut off the air bag part of the curtain air bag module at the position shown in the figure.

am6zzw00003273

Warning
•  Be sure not to crush the pipe on the side where it is cut. If it is crushed completely, the interior pressure of the pipe will build up and can cause it to explode during air bag module operation (deployment).

12.  Connect the SST (Adapter harness) to the curtain air bag module as shown in the figure.

am6zzw00003274

13.  Secure the curtain air bag module to the tire, by wrapping a wire (cross section 1.25 mm2{0.002 in2} or more) through the tire and the bolt installation holes at least 4 times as shown in the figure.

am6zzw00000975

Warning
•  If the air bag module is not properly installed to the tire, serious injury may occur when the module is operated (deployed). Make sure to install the air bag module securely.

14.  Stack the tire with the curtain air bag module on top of two tires without wheels. Stack a tire without a wheel on top of the tire with the curtain air bag module, and then stack another tire with a wheel on the very top.

am6zzw00000976

15.  Secure the tires with wire.

am6zzw00000966

16.  Connect the SST (Deployment tool) to the SST (Adapter harness).

am2zzw00000490

17.  Connect the SST (Deployment tool) to the battery. Connect the power supply red clip to the positive battery terminal, and the black clip to the negative battery terminal.

18.  Verify that the red lamp on the SST (Deployment tool) is illuminated.

19.  Verify that all persons are standing at least 6 m {20 ft}away from the vehicle.

20.  Press the activation switch on the SST (Deployment tool) to operate (deploy) the curtain air bag module.

am6zzw00000956

Warning
•  The air bag module is very hot immediately after it is operated (deployed). You can be burned. Do not touch the air bag module for at least 15 min after deployment.

21.  Disconnect the SST (Deployment tool) from the SST (Adapter harness).


Pre-tensioner Seat Belt

1.  Remove the front scuff plate. (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

2.  Remove the rear scuff plate. (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

3.  Remove the B-pillar lower trim. (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)

4.  Remove the pre-tensioner seat belt and connect the SST (Adapter harness) as shown in the figure. (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

am6zzw00000963

5.  Put the pre-tensioner seat belt inside the tire and secure it to the tire by wrapping a wire (cross section of 1.25 mm2{0.002 in2} or more) through the tire and the bolt installation holes at least 4 times.

am6zzw00000977

Warning
•  If the pre-tensioner seat belt is not properly installed to the tire, serious injury may occur when the pre-tensioner part is operated (deployed). When installing the pre-tensioner seat belt to the tire, make sure the pre-tensioner part is inside the tire.

6.  Stack the tire with the pre-tensioner seat belt on to of two tires without wheels. Stack a tire without a wheel on top of the tire with the pre-tensioner seat belt, and then stack another tire with a wheel on the very top.

am2zzw00000379

7.  Secure the tires with wire.

am6zzw00000966

8.  Connect the SST (Deployment tool) to the SST (Adapter harness).

am2zzw00000490

9.  Connect the SST (Deployment tool) to the battery. Connect the power supply red clip to the positive battery terminal, and the black clip to the negative battery terminal.

10.  Verify that the red lamp on the SST (Deployment tool) is illuminated.

11.  Verify that all persons are standing at least 6 m {20 ft}away from the vehicle.

12.  Press the activation switch on the SST (Deployment tool) to operate (deploy) the pre-tensioner seat belt.

am6zzw00000956

Warning
•  The pre-tensioner seat belt is very hot immediately after it is operated (deployed). You can be burned. Do not touch the pre-tensioner seat belt for at least 15 min after deployment.

13.  Disconnect the SST (Deployment tool) from the SST (Adapter harness).
