AM/FM ANTENNA AMPLIFIER REMOVAL/INSTALLATION
id092000813700
1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)
2. Remove the following parts:
- (1) Sunroof seaming welt (with sunroof system) (See SUNROOF UNIT REMOVAL/INSTALLATION.)
-
- (2) A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)
-
- (3) Sunvisor (See SUNVISOR REMOVAL/INSTALLATION.)
-
- (4) Front map light (See MAP LIGHT REMOVAL/INSTALLATION.)
-
- (5) Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION.)
-
- (6) Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)
-
- (7) Front side trim (RH) (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)
-
- (8) Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)
-
- (9) Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)
-
- (10) Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION.)
-
- (11) Passenger-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION.)
-
- (12) B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)
-
- (13) Adjust anchor cover (See FRONT SEAT BELT REMOVAL/INSTALLATION.)
-
- (14) Upper anchor installation bolt on the seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)
-
- (15) B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION.)
-
- (16) Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)
-
- (17) Rear seat side back (See REAR SEAT SIDE BACK REMOVAL/INSTALLATION.)
-
- (18) Tire house trim (See TIRE HOUSE TRIM REMOVAL/INSTALLATION.)
-
- (19) C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION.)
-
- (20) Side wall (See SIDE WALL REMOVAL/INSTALLATION.)
-
- (21) CD player (with CD player) (See CD PLAYER REMOVAL.) (See CD PLAYER INSTALLATION.)
-
- (22) DVD/CD player (with DVD/CD player) (See DVD/CD PLAYER REMOVAL.) (See DVD/CD PLAYER INSTALLATION.)
-
- (23) Selector lever knob (ATX) (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION.)
-
- (24) Shift lever knob (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [C66M-R].) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [D66M-R, D66MX-R].)
-
- (25) Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)
-
- (26) Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION.)
-
- (27) Rear console component (See REAR CONSOLE REMOVAL/INSTALLATION.)
-
- (28) Headliner (See HEADLINER REMOVAL/INSTALLATION.)
-
3. Disconnect the connector. (with DAB antenna amplifier)

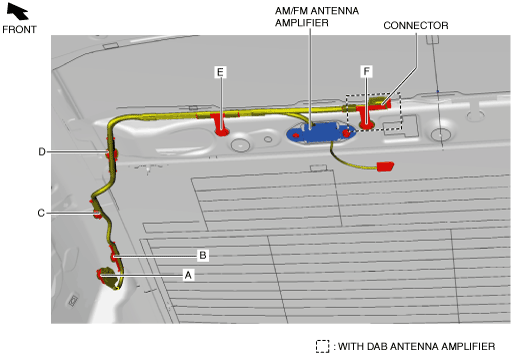

4. Remove clips A, B, C, D, E and F

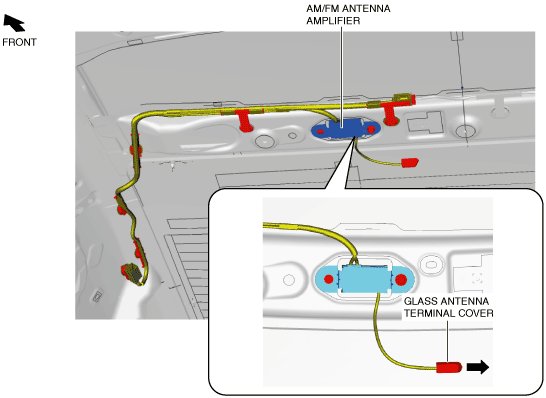

5. Remove the glass antenna terminal cover in the direction of the arrow shown in the figure.

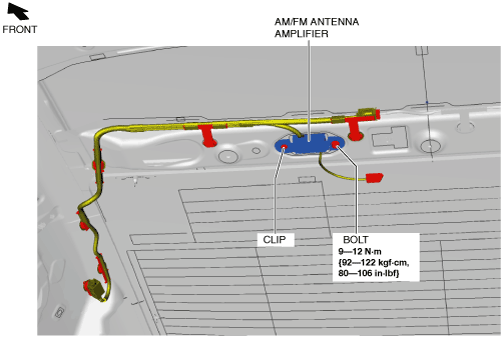

6. Remove the bolt.
7. Remove the clip.
8. Remove the AM/FM antenna amplifier.
9. Install in the reverse order of removal.
