DAB ANTENNA AMPLIFIER REMOVAL/INSTALLATION

id092000815800

4SD

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Sunroof seaming welt (with sunroof system) (See SUNROOF UNIT REMOVAL/INSTALLATION.)

(2)  A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)

(3)  Sunvisor (See SUNVISOR REMOVAL/INSTALLATION.)

(4)  Front map light (See MAP LIGHT REMOVAL/INSTALLATION.)

(5)  Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION.)

(6)  Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(7)  Front side trim (RH) (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(8)  Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

(9)  Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

(10)  Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION.)

(11)  Passenger-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION.)

(12)  B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)

(13)  Adjust anchor cover (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

(14)  Upper anchor installation bolt on the seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

(15)  B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION.)

(16)  Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)

(17)  Rear seat side back (See REAR SEAT SIDE BACK REMOVAL/INSTALLATION.)

(18)  Tire house trim (See TIRE HOUSE TRIM REMOVAL/INSTALLATION.)

(19)  C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION.)

(20)  Side wall (See SIDE WALL REMOVAL/INSTALLATION.)

(21)  CD player (with CD player) (See CD PLAYER REMOVAL.) (See CD PLAYER INSTALLATION.)

(22)  DVD/CD player (with DVD/CD player) (See DVD/CD PLAYER REMOVAL.) (See DVD/CD PLAYER INSTALLATION.)

(23)  Selector lever knob (ATX) (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION.)

(24)  Shift lever knob (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [C66M-R].) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [D66M-R, D66MX-R].)

(25)  Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)

(26)  Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION.)

(27)  Rear console component (See REAR CONSOLE REMOVAL/INSTALLATION.)

(28)  Headliner (See HEADLINER REMOVAL/INSTALLATION.)

3.  Disconnect the connector.

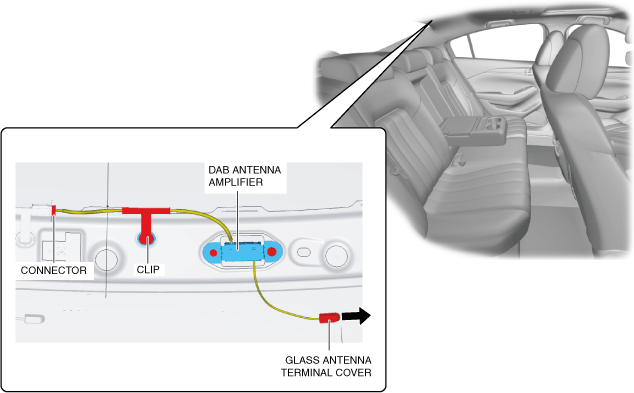

am6zzw00016973

4.  Remove the clip.

5.  Remove the glass antenna terminal cover in the direction of the arrow shown in the figure.

6.  Remove the fastener.

am6zzw00013607

7.  Remove the bolt.

8.  Remove the DAB antenna amplifier.

9.  Install in the reverse order of removal.

WGN

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the liftgate upper trim. (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION.)

3.  Disconnect the connector.

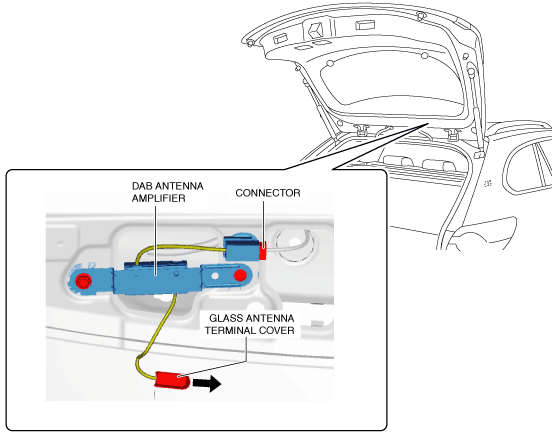

am6zzw00013608

4.  Remove the glass antenna terminal cover in the direction of the arrow shown in the figure.

5.  Remove the fastener.

am6zzw00013609

6.  Remove the bolt.

7.  Remove the DAB antenna amplifier.

8.  Install in the reverse order of removal.
