INSTRUMENTATION/DRIVER INFO. LOCATION INDEX

id092200010200

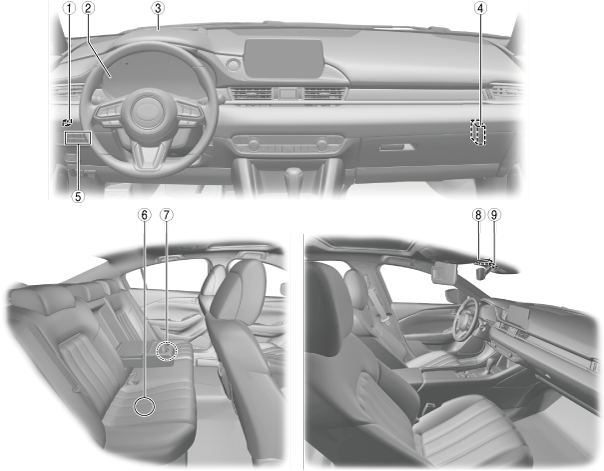

Interior

am6zzw00016393

1	Front parking sensor buzzer (with parking sensor system) (See FRONT PARKING SENSOR BUZZER REMOVAL/INSTALLATION.) (See FRONT PARKING SENSOR BUZZER INSPECTION.)
2	Instrument cluster (See INSTRUMENT CLUSTER REMOVAL/INSTALLATION.) (See INSTRUMENT CLUSTER DISASSEMBLY/ASSEMBLY.) (See INSTRUMENT CLUSTER INSPECTION.) (See INSTRUMENT CLUSTER CONFIGURATION (USING READ/WRITE FUNCTION).) (See INSTRUMENT CLUSTER CONFIGURATION (USING AS-BUILT DATA).) (See INSTRUMENT CLUSTER PERSONALIZATION FEATURES SETTING PROCEDURE.) (See INSTRUMENT CLUSTER DATA RESET PROCEDURE.)
3	Active driving display (with active driving display) (See ACTIVE DRIVING DISPLAY REMOVAL/INSTALLATION.) (See ACTIVE DRIVING DISPLAY DISASSEMBLY/ASSEMBLY.) (See ACTIVE DRIVING DISPLAY INSPECTION.) (See ACTIVE DRIVING DISPLAY SHORT-CORD REMOVAL/INSTALLATION.)
4	parking assist unit (with parking sensor system) (See PARKING ASSIST UNIT REMOVAL/INSTALLATION.) (See PARKING ASSIST UNIT INSPECTION.) (See BEEP SOUND ADJUSTMENT.) (See PARKING SENSOR SYSTEM OPERATION SWITCHING PROCEDURE.)
5	Parking sensor switch (See PARKING SENSOR SWITCH REMOVAL/INSTALLATION.) (See PARKING SENSOR SWITCH INSPECTION.)
6	Fuel gauge sender unit (main) (See FUEL GAUGE SENDER UNIT REMOVAL/INSTALLATION [4WD].) (See FUEL GAUGE SENDER UNIT REMOVAL/INSTALLATION [2WD].) (See FUEL GAUGE SENDER UNIT INSPECTION [4WD].) (See FUEL GAUGE SENDER UNIT INSPECTION [2WD].)
7	Fuel gauge sender unit (sub) (See FUEL GAUGE SENDER UNIT REMOVAL/INSTALLATION [4WD].) (See FUEL GAUGE SENDER UNIT REMOVAL/INSTALLATION [2WD].) (See FUEL GAUGE SENDER UNIT INSPECTION [4WD].) (See FUEL GAUGE SENDER UNIT INSPECTION [2WD].)
8	Indicator unit (See INDICATOR UNIT REMOVAL/INSTALLATION.) (See INDICATOR UNIT INSPECTION.)
9	Indicator unit short-cord (See INDICATOR UNIT SHORT-CORD REMOVAL/INSTALLATION.) (See INDICATOR UNIT SHORT-CORD INSPECTION.)

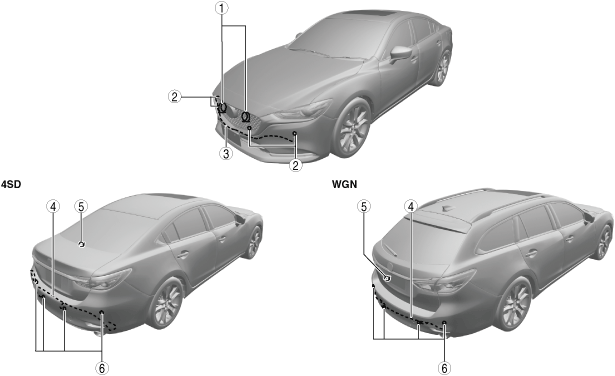

Exterior

am6zzw00016394

1	Horn (See HORN REMOVAL/INSTALLATION.) (See HORN INSPECTION.)
2	Front ultrasonic sensor (with parking sensor system) (See FRONT ULTRASONIC SENSOR REMOVAL/INSTALLATION.)
3	Front ultrasonic sensor short-cord (with parking sensor system) (See FRONT ULTRASONIC SENSOR SHORT-CORD REMOVAL/INSTALLATION.) (See FRONT ULTRASONIC SENSOR SHORT-CORD INSPECTION.)
4	Rear ultrasonic sensor short-cord (with parking sensor system) (See REAR ULTRASONIC SENSOR SHORT-CORD REMOVAL/INSTALLATION.) (See REAR ULTRASONIC SENSOR SHORT-CORD INSPECTION.)
5	Rear parking sensor buzzer (with parking sensor system) (See REAR PARKING SENSOR BUZZER REMOVAL/INSTALLATION.) (See REAR PARKING SENSOR BUZZER INSPECTION.)
6	Rear ultrasonic sensor (with parking sensor system) (See REAR ULTRASONIC SENSOR REMOVAL/INSTALLATION.)

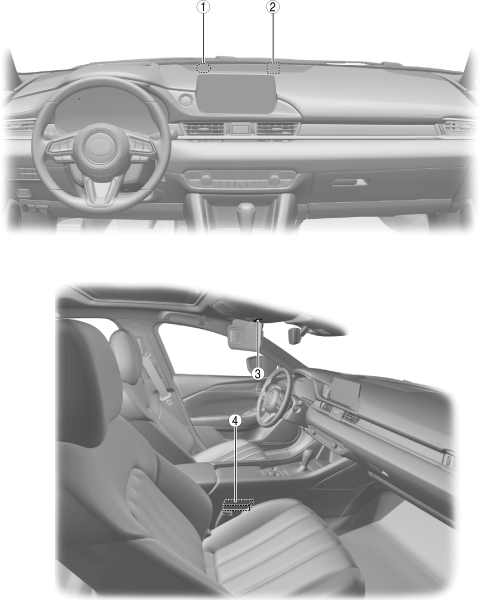

With MAZDA ERA-GLONASS

am6zzw00016395

1	MAZDA ERA-GLONASS speaker (See MAZDA ERA-GLONASS SPEAKER REMOVAL/INSTALLATION.) (See MAZDA ERA-GLONASS SPEAKER INSPECTION.)
2	TEL antenna (See TEL ANTENNA REMOVAL/INSTALLATION.)
3	MAZDA ERA-GLONASS switch (See MAZDA ERA-GLONASS SWITCH REMOVAL/INSTALLATION.) (See MAZDA ERA-GLONASS SWITCH INSPECTION.)
4	MAZDA ERA-GLONASS control module (See MAZDA ERA-GLONASS CONTROL MODULE REMOVAL/INSTALLATION.) (See MAZDA ERA-GLONASS CONTROL MODULE INSPECTION.) (See MAZDA ERA-GLONASS CONTROL MODULE FINALIZATION PROCEDURE.) (See MAZDA ERA-GLONASS CONTROL MODULE BATTERY REMOVAL/INSTALLATION.)
