TROUBLESHOOTING INDEX [CAR-NAVIGATION SYSTEM (DISPLAY-INTEGRATED TYPE)]

id0903l4104400

Note

•  “iPod” is a registered trademark of Apple Inc. in the United States and other countries.

Symptom		Description
CAR-NAVIGATION UNIT DOES NOT TURN ON [CAR-NAVIGATION SYSTEM (DISPLAY-INTEGRATED TYPE)]		•  Car-navigation unit power is not available
NO SOUND OUTPUT IN ALL MODES [CAR-NAVIGATION SYSTEM (DISPLAY-INTEGRATED TYPE)]		•  No sound output in all modes
NO SOUND OUTPUT IN RADIO MODE [CAR-NAVIGATION SYSTEM (DISPLAY-INTEGRATED TYPE)]		•  No sound output in radio mode (AM/FM)
NO SOUND OUTPUT IN CD MODE [CAR-NAVIGATION SYSTEM (DISPLAY-INTEGRATED TYPE)]		•  No sound output in CD mode
NO SOUND OUPUT IN iPod MODE [CAR-NAVIGATION SYSTEM (DISPLAY-INTEGRATED TYPE)]		•  No sound output in iPod mode
CD JUMPS DURING PLAYBACK [CAR-NAVIGATION SYSTEM (DISPLAY-INTEGRATED TYPE)]		•  CD jumps during playback (sound drops for a moment)
SOUND DISTORTS OR TOO LOUD [CAR-NAVIGATION SYSTEM (DISPLAY-INTEGRATED TYPE)]		•  Sound distorts or too loud
CAR-NAVIGATION UNIT ILLUMINATION DOES NOT TURN ON [CAR-NAVIGATION SYSTEM (DISPLAY-INTEGRATED TYPE)]		•  Car-navigation unit illumination does not turn on
DISPLAY DOES NOT WORK [CAR-NAVIGATION SYSTEM (DISPLAY-INTEGRATED TYPE)]		•  Display does not work
VEHICLE POSITION DOES NOT MOVE [CAR-NAVIGATION SYSTEM (DISPLAY-INTEGRATED TYPE)]		•  Vehicle position does not move
Bluetooth DEVICE DOES NOT WORK [CAR-NAVIGATION SYSTEM (DISPLAY-INTEGRATED TYPE)]		•  Bluetooth device does not work
REAR MOUNT CAMERA IMAGE NOT CLEAR/NO IMAGE ON SCREEN [CAR-NAVIGATION SYSTEM (DISPLAY-INTEGRATED TYPE)]		•  Rear mount camera image not clear/no image on screen •  Poor reception from rear mount camera

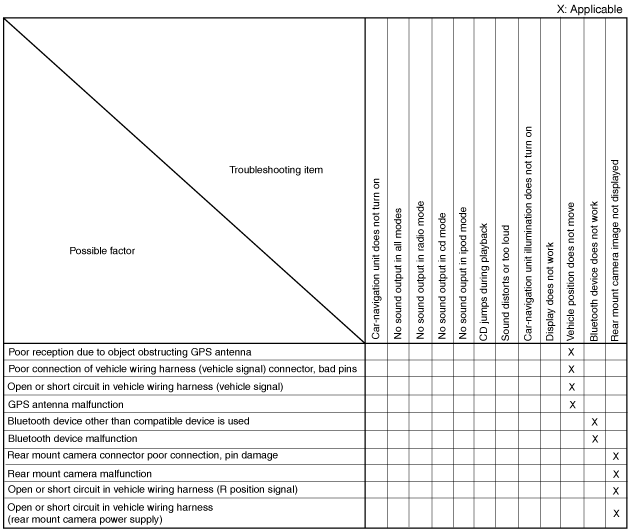

Quick Diagnostic Chart

am6zzw00012215

am6zzw00012216
