HVAC CONTROL SYSTEM LOCATION INDEX

id074000803600

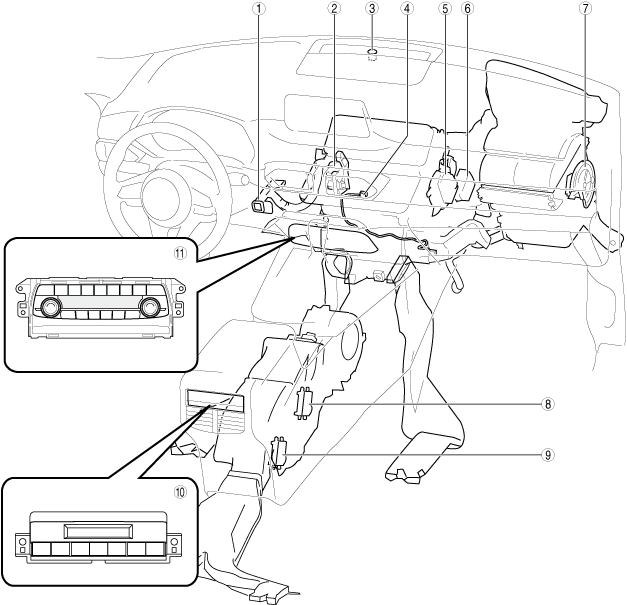

Structural View (L.H.D.)

ac8wzw00003422

1	Cabin temperature sensor (See CABIN TEMPERATURE SENSOR REMOVAL/INSTALLATION.) (See CABIN TEMPERATURE SENSOR INSPECTION.)
2	Driver-side front air mix actuator (See FRONT AIR MIX ACTUATOR REMOVAL/INSTALLATION.) (See FRONT AIR MIX ACTUATOR INSPECTION.)
3	Solar radiation sensor (See SOLAR RADIATION SENSOR REMOVAL/INSTALLATION.) (See SOLAR RADIATION SENSOR INSPECTION.)
4	Evaporator temperature sensor (See EVAPORATOR TEMPERATURE SENSOR REMOVAL/INSTALLATION.) (See EVAPORATOR TEMPERATURE SENSOR INSPECTION.)
5	Front airflow mode actuator (See FRONT AIRFLOW MODE ACTUATOR REMOVAL.) (See FRONT AIRFLOW MODE ACTUATOR INSTALLATION.) (See FRONT AIRFLOW MODE ACTUATOR INSPECTION.)
6	Passenger-side front air mix actuator (See FRONT AIR MIX ACTUATOR REMOVAL/INSTALLATION.) (See FRONT AIR MIX ACTUATOR INSPECTION.)
7	Air intake actuator (See AIR INTAKE ACTUATOR REMOVAL.) (See AIR INTAKE ACTUATOR INSTALLATION.) (See AIR INTAKE ACTUATOR INSPECTION.)
8	Rear air mix actuator (See REAR AIR MIX ACTUATOR REMOVAL/INSTALLATION.) (See REAR AIR MIX ACTUATOR INSPECTION.)
9	Rear airflow mode actuator (See REAR AIRFLOW MODE ACTUATOR REMOVAL/INSTALLATION.) (See REAR AIRFLOW MODE ACTUATOR INSPECTION.)
10	Rear climate control unit (See REAR CLIMATE CONTROL UNIT REMOVAL/INSTALLATION.) (See REAR CLIMATE CONTROL UNIT INSPECTION.)
11	Front climate control unit (See FRONT CLIMATE CONTROL UNIT REMOVAL/INSTALLATION.) (See FRONT CLIMATE CONTROL UNIT INSPECTION.)

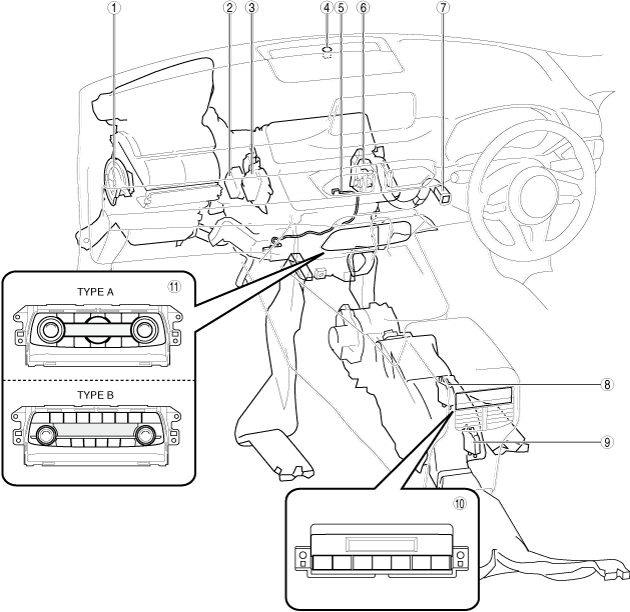

Structural View (R.H.D.)

ac8wzw00000199

1	Air intake actuator (See AIR INTAKE ACTUATOR REMOVAL.) (See AIR INTAKE ACTUATOR INSTALLATION.) (See AIR INTAKE ACTUATOR INSPECTION.)
2	Passenger-side front air mix actuator (See FRONT AIR MIX ACTUATOR REMOVAL/INSTALLATION.) (See FRONT AIR MIX ACTUATOR INSPECTION.)
3	Front airflow mode actuator (See FRONT AIRFLOW MODE ACTUATOR REMOVAL.) (See FRONT AIRFLOW MODE ACTUATOR INSTALLATION.) (See FRONT AIRFLOW MODE ACTUATOR INSPECTION.)
4	Solar radiation sensor (See SOLAR RADIATION SENSOR REMOVAL/INSTALLATION.) (See SOLAR RADIATION SENSOR INSPECTION.)
5	Evaporator temperature sensor (See EVAPORATOR TEMPERATURE SENSOR REMOVAL/INSTALLATION.) (See EVAPORATOR TEMPERATURE SENSOR INSPECTION.)
6	Driver-side front air mix actuator (See FRONT AIR MIX ACTUATOR REMOVAL/INSTALLATION.) (See FRONT AIR MIX ACTUATOR INSPECTION.)
7	Cabin temperature sensor (See CABIN TEMPERATURE SENSOR REMOVAL/INSTALLATION.) (See CABIN TEMPERATURE SENSOR INSPECTION.)
8	Rear air mix actuator (See REAR AIR MIX ACTUATOR REMOVAL/INSTALLATION.) (See REAR AIR MIX ACTUATOR INSPECTION.)
9	Rear airflow mode actuator (See REAR AIRFLOW MODE ACTUATOR REMOVAL/INSTALLATION.) (See REAR AIRFLOW MODE ACTUATOR INSPECTION.)
10	Rear climate control unit (See REAR CLIMATE CONTROL UNIT REMOVAL/INSTALLATION.) (See REAR CLIMATE CONTROL UNIT INSPECTION.)
11	Front climate control unit (See FRONT CLIMATE CONTROL UNIT REMOVAL/INSTALLATION.) (See FRONT CLIMATE CONTROL UNIT INSPECTION.)

Structural view

ac8wzw00000200

1	Refrigerant pressure sensor (See REFRIGERANT PRESSURE SENSOR REMOVAL/INSTALLATION.) (See REFRIGERANT PRESSURE SENSOR INSPECTION.)
2	Rear blower relay (See RELAY LOCATION.) (See RELAY INSPECTION.)
3	Front blower relay (See RELAY LOCATION.) (See RELAY INSPECTION.)
4	A/C relay (See RELAY LOCATION.) (See RELAY INSPECTION.)
5	Ambient temperature sensor (See AMBIENT TEMPERATURE SENSOR REMOVAL/INSTALLATION.) (See AMBIENT TEMPERATURE SENSOR INSPECTION.)
