CENTER ROOF ANTENNA REMOVAL/INSTALLATION

id092000801600

Note

•  The center roof antenna can be removed without having to take the headliner outside of the vehicle.

1.  Refer to the headliner removal/installation and perform the preparation before servicing. (See HEADLINER REMOVAL/INSTALLATION.)

2.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

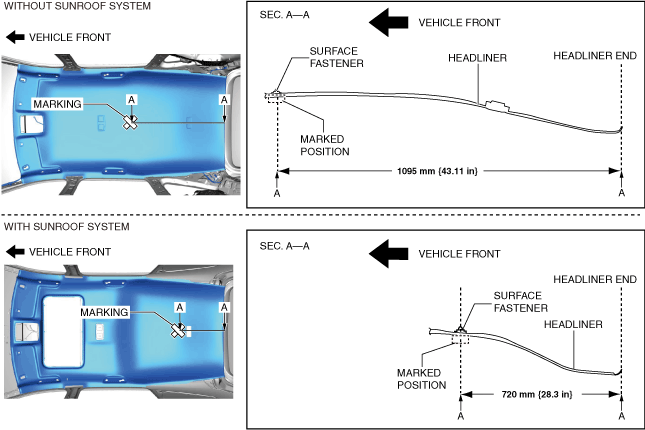

3.  Mark the position shown in the figure using tape to verify the position of the surface fastener.

Caution

•  When marking using tape, perform the procedure so as not to soil the headliner.

ac8wzw00004123

4.  Remove the following parts:

(1)  A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)

(2)  Front map light (See FRONT MAP LIGHT REMOVAL/INSTALLATION.)

(3)  Sunvisor (See SUNVISOR REMOVAL/INSTALLATION.)

(4)  Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION.)

(5)  Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(6)  Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

(7)  B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)

(8)  Adjust anchor cover on the front seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

(9)  Upper anchor installation bolt on the front seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

(10)  B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION.)

(11)  Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION.)

(12)  Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION.)

(13)  Trunk side pocket (See TRUNK SIDE POCKET REMOVAL/INSTALLATION.)

(14)  Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)

(15)  Bass-box (with Bose^®) (See BASS-BOX REMOVAL/INSTALLATION.)

(16)  Third-row seat cushion (See THIRD-ROW SEAT CUSHION REMOVAL/INSTALLATION.)

(17)  Third-row seat back component (See THIRD-ROW SEAT BACK COMPONENT REMOVAL/INSTALLATION.)

(18)  Trunk side trim (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)

(19)  D-pillar trim (See D-PILLAR TRIM REMOVAL/INSTALLATION.)

(20)  C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION.)

5.  Remove the sunroof seaming welt. (with sunroof system)

ac8wzw00004057

6.  Remove the hooks in the direction of arrow shown in the figure. (with sunroof system)

ac8wzw00004058

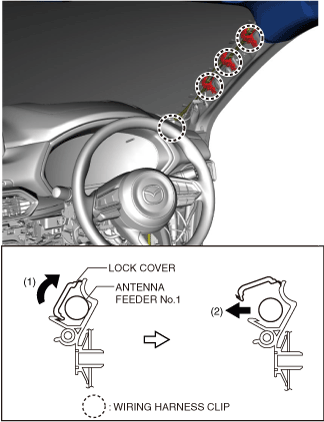

7.  Open the lock covers of the wiring harness clips in the direction of arrow (1) shown in the figure and remove the antenna feeder No.1 in the direction of arrow (2).

ac8wzw00001832

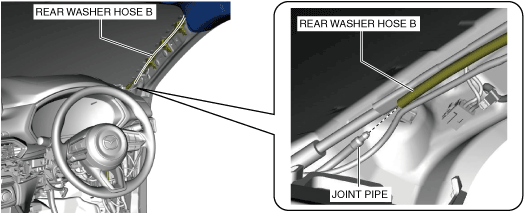

8.  Disconnect rear washer hose B from the joint pipe.

ac8wzw00001833

9.  Remove the wiring harness clips.

ac8wzw00001834

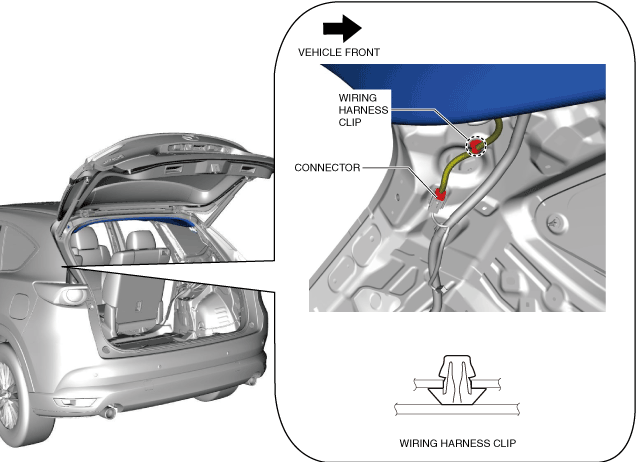

10.  Disconnect rear washer hose C from the joint pipe.

11.  Disconnect the connector.

12.  Remove the wiring harness clips.

ac8wzw00001835

13.  Disconnect the connector.

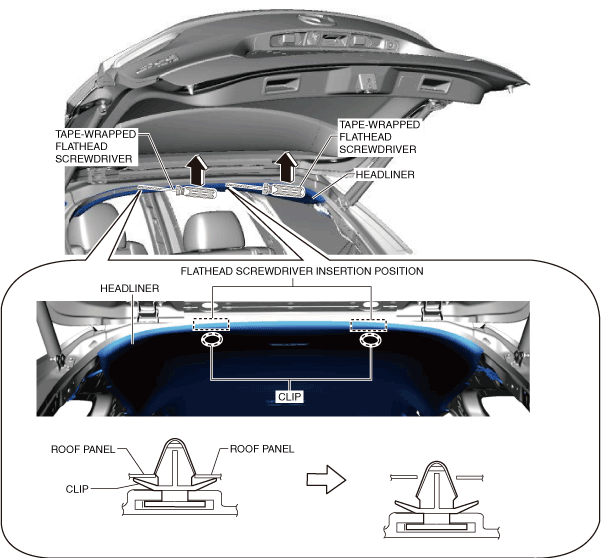

14.  Insert a tape-wrapped flathead screwdriver into the position shown in the figure, move it in the direction of the arrow, and then detach the clips.

ac8wzw00001836

15.  Temporarily install the seaming welts shown in the figure to the headliner.

Caution

•  If the surface fastener are removed without temporarily installing the seaming welt, the headliner may fall off and the part may be damaged. Before detaching the surface fasteners, temporarily install the seaming welts to prevent the headliner from falling off.

ac8wzw00001837

16.  Refer to the headliner removal/installation and remove the surface fastener from the roof panel. (See HEADLINER REMOVAL/INSTALLATION.)

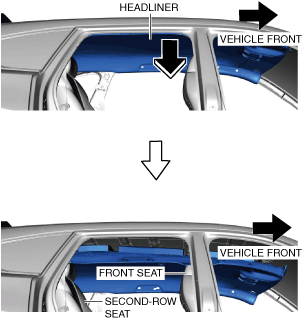

17.  Move the headliner in the direction of arrow shown in the figure and set it on front seats and second-row seats.

ac8wzw00001840

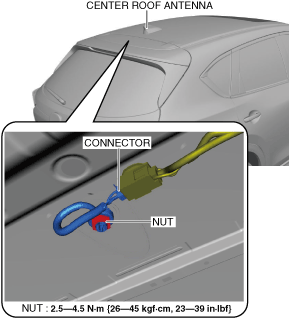

18.  Disconnect the connector.

ac8wzw00002264

19.  Remove the nut.

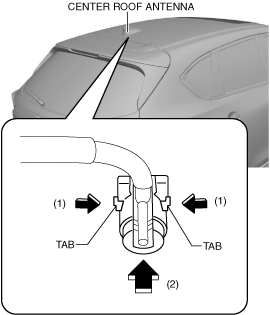

20.  While pressing the center roof antenna tabs in the direction of arrows (1) shown in the figure, press the center roof antenna in the direction of arrow (2) to detach the center roof antenna tabs from the body.

ac8wzw00002265

21.  Remove the center roof antenna.

22.  Install in the reverse order of removal.
