STEERING LOCK UNIT REMOVAL/INSTALLATION [(E)]

id0914002031x2

Replacement parts

Warning

•  Handling the air bag module improperly can accidentally operate (deploy) the air bag module, which may seriously injure you. Read the SRS air bag system service warnings and cautions before handling the air bag module.

(See AIR BAG SYSTEM SERVICE WARNINGS [TWO-STEP DEPLOYMENT CONTROL SYSTEM (E)].)

(See AIR BAG SYSTEM SERVICE CAUTIONS [TWO-STEP DEPLOYMENT CONTROL SYSTEM (E)].)

1.  Remove the select lever knob. (See SELECTOR LEVER REMOVAL/INSTALLATION [A71M].)

2.  Disconnect the negative lead-acid battery terminal and wait for 1 min or more. (See NEGATIVE LEAD-ACID BATTERY TERMINAL DISCONNECTION/CONNECTION.)

3.  Remove the following parts:

(1)  Driver-side air bag module(See DRIVER-SIDE AIR BAG MODULE REMOVAL [TWO-STEP DEPLOYMENT CONTROL SYSTEM (E)].)(See DRIVER-SIDE AIR BAG MODULE INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM (E)].)

(2)  Steering wheel (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION.)

(3)  Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)

(4)  Console panel (See CONSOLE PANEL REMOVAL/INSTALLATION.)

(5)  Rear console (See REAR CONSOLE REMOVAL/INSTALLATION.)

(6)  Console bracket (See CONSOLE BRACKET REMOVAL/INSTALLATION.)

(7)  Front console upper panel (See FRONT CONSOLE UPPER PANEL REMOVAL/INSTALLATION.)

(8)  Console side panel (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION.)

(9)  Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION.)

(10)  Side wall (See SIDE WALL REMOVAL/INSTALLATION.)

(11)  Front console (See FRONT CONSOLE REMOVAL/INSTALLATION.)

(12)  Passenger-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(13)  Driver-side scuff plate (See SCUFF PLATE REMOVAL/INSTALLATION.)

(14)  Driver-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(15)  Driver-side lower panel (See DRIVER-SIDE LOWER PANEL REMOVAL/INSTALLATION.)

(16)  Knee air bag module(See KNEE AIR BAG MODULE REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM (E)].)

(17)  Center lower panel (See CENTER LOWER PANEL REMOVAL/INSTALLATION.)

(18)  Upper column cover (See COLUMN COVER REMOVAL/INSTALLATION.)

(19)  Lower column cover (See COLUMN COVER REMOVAL/INSTALLATION.)

(20)  Clock spring(See CLOCK SPRING REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM (E)].)

(21)  Wiper and washer switch (See WIPER AND WASHER SWITCH REMOVAL/INSTALLATION.)

(22)  Light switch (See LIGHT SWITCH REMOVAL/INSTALLATION.)

(23)  Joint cover (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION.)

(24)  Steering column component (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION.)

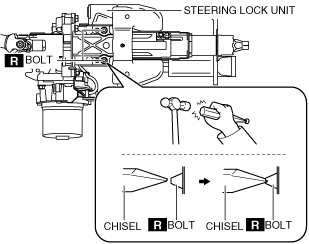

4.  Make a groove on the heads of the bolts by punching them with a chisel using a hammer.

a30zzw00002525

5.  Remove the bolts. (See Bolt Installation Note.)

6.  Remove the steering lock unit.

7.  Install in the reverse order of removal.

8.  If the steering lock unit is replaced, program the parts related to the immobilizer system. (See IMMOBILIZER SYSTEM-RELATED PARTS PROGRAMMING.)

Bolt Installation Note

1.  Tighten the bolt heads until the heads break off.

a30zzw00002526
