LIGHTING SYSTEMS LOCATION INDEX

id091800800100

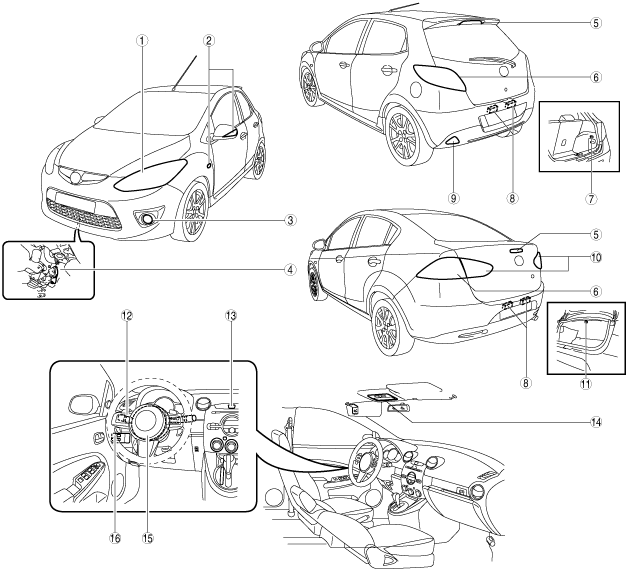

L.H.D.

am2zzw00004834

1	Front combination lights (See FRONT COMBINATION LIGHT REMOVAL/INSTALLATION.) (See HEADLIGHT AIMING.) (See HEADLIGHT BULB REMOVAL/INSTALLATION.) (See PARKING LIGHT BULB REMOVAL/INSTALLATION.) (See FRONT TURN LIGHT BULB REMOVAL/INSTALLATION.)
2	Front side turn light (See FRONT SIDE TURN LIGHT REMOVAL/INSTALLATION.) (See FRONT SIDE TURN LIGHT INSPECTION.)
3	Front fog light (See FRONT FOG LIGHT REMOVAL/INSTALLATION.) (See FRONT FOG LIGHT BULB REMOVAL/INSTALLATION.) (See FRONT FOG LIGHT AIMING.)
4	Back-up light switch (See BACK-UP LIGHT SWITCH REMOVAL/INSTALLATION.) (See BACK-UP LIGHT SWITCH INSPECTION.)
5	High-mount brake light (See HIGH-MOUNT BRAKE LIGHT REMOVAL/INSTALLATION.) (See HIGH-MOUNT BRAKE LIGHT BULB REMOVAL/INSTALLATION [4SD].)
6	Rear combination light (See REAR COMBINATION LIGHT REMOVAL/INSTALLATION.) (See REAR COMBINATION LIGHT BULB REMOVAL/INSTALLATION.)
7	Cargo compartment light (See CARGO COMPARTMENT LIGHT REMOVAL/INSTALLATION.) (See CARGO COMPARTMENT LIGHT BULB REMOVAL/INSTALLATION.) (See CARGO COMPARTMENT LIGHT INSPECTION.)
8	License plate light (See LICENSE PLATE LIGHT REMOVAL/INSTALLATION.) (See LICENSE PLATE LIGHT BULB REMOVAL/INSTALLATION.)
9	Rear fog light (See REAR FOG LIGHT REMOVAL/INSTALLATION.) (See REAR FOG LIGHT BULB REMOVAL/INSTALLATION.)
10	Inboard light (See INBOARD LIGHT REMOVAL/INSTALLATION [4SD].) (See INBOARD LIGHT BULB REMOVAL/INSTALLATION [4SD].)
11	Trunk compartment Light (See TRUNK COMPARTMENT LIGHT REMOVAL/INSTALLATION [4SD].)
12	Light switch (See LIGHT SWITCH REMOVAL/INSTALLATION.) (See LIGHT SWITCH INSPECTION.) (See FRONT FOG LIGHT SWITCH INSPECTION.) (See REAR FOG LIGHT SWITCH INSPECTION.)
13	Hazard warning switch (See HAZARD WARNING SWITCH REMOVAL/INSTALLATION.) (See HAZARD WARNING SWITCH INSPECTION.)
14	Interior light (See INTERIOR LIGHT REMOVAL/INSTALLATION.) (See INTERIOR LIGHT INSPECTION.) (See INTERIOR LIGHT BULB REMOVAL/INSTALLATION.)
15	Combination switch (See COMBINATION SWITCH REMOVAL/INSTALLATION.) (See COMBINATION SWITCH DISASSEMBLY/ASSEMBLY.)
16	Headlight leveling switch (See HEADLIGHT LEVELING SWITCH REMOVAL/INSTALLATION.) (See HEADLIGHT LEVELING SWITCH INSPECTION.)

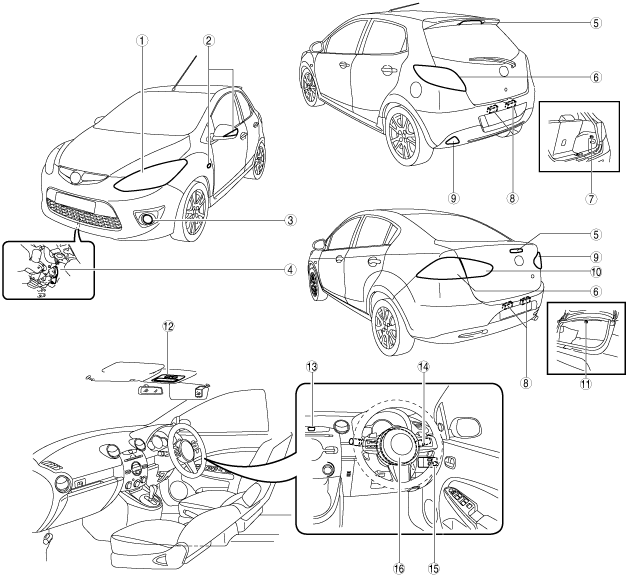

R.H.D.

am2zzw00004835

1	Front combination lights (See FRONT COMBINATION LIGHT REMOVAL/INSTALLATION.) (See HEADLIGHT AIMING.) (See HEADLIGHT BULB REMOVAL/INSTALLATION.) (See PARKING LIGHT BULB REMOVAL/INSTALLATION.) (See FRONT TURN LIGHT BULB REMOVAL/INSTALLATION.) (See LED HEADLIGHT INSPECTION.)
2	Front side turn light (See FRONT SIDE TURN LIGHT REMOVAL/INSTALLATION.) (See FRONT SIDE TURN LIGHT INSPECTION.)
3	Front fog light (See FRONT FOG LIGHT REMOVAL/INSTALLATION.) (See FRONT FOG LIGHT BULB REMOVAL/INSTALLATION.) (See FRONT FOG LIGHT AIMING.)
4	Back-up light switch (See BACK-UP LIGHT SWITCH REMOVAL/INSTALLATION.) (See BACK-UP LIGHT SWITCH INSPECTION.)
5	High-mount brake light (See HIGH-MOUNT BRAKE LIGHT REMOVAL/INSTALLATION.) (See HIGH-MOUNT BRAKE LIGHT BULB REMOVAL/INSTALLATION [4SD].)
6	Rear combination light (See REAR COMBINATION LIGHT REMOVAL/INSTALLATION.) (See REAR COMBINATION LIGHT BULB REMOVAL/INSTALLATION.)
7	Cargo compartment light (See CARGO COMPARTMENT LIGHT REMOVAL/INSTALLATION.) (See CARGO COMPARTMENT LIGHT BULB REMOVAL/INSTALLATION.) (See CARGO COMPARTMENT LIGHT INSPECTION.)
8	License plate light (See LICENSE PLATE LIGHT REMOVAL/INSTALLATION.) (See LICENSE PLATE LIGHT BULB REMOVAL/INSTALLATION.)
9	Rear fog light (See REAR FOG LIGHT REMOVAL/INSTALLATION.) (See REAR FOG LIGHT BULB REMOVAL/INSTALLATION.)
10	Inboard light (See INBOARD LIGHT REMOVAL/INSTALLATION [4SD].) (See INBOARD LIGHT BULB REMOVAL/INSTALLATION [4SD].)
11	Trunk compartment Light (See TRUNK COMPARTMENT LIGHT REMOVAL/INSTALLATION [4SD].)
12	Interior light (See INTERIOR LIGHT REMOVAL/INSTALLATION.) (See INTERIOR LIGHT INSPECTION.) (See INTERIOR LIGHT BULB REMOVAL/INSTALLATION.)
13	Hazard warning switch (See HAZARD WARNING SWITCH REMOVAL/INSTALLATION.) (See HAZARD WARNING SWITCH INSPECTION.)
14	Light switch (See LIGHT SWITCH REMOVAL/INSTALLATION.) (See LIGHT SWITCH INSPECTION.) (See FRONT FOG LIGHT SWITCH INSPECTION.) (See REAR FOG LIGHT SWITCH INSPECTION.)
15	Headlight leveling switch (See HEADLIGHT LEVELING SWITCH REMOVAL/INSTALLATION.) (See HEADLIGHT LEVELING SWITCH INSPECTION.)
16	Combination switch (See COMBINATION SWITCH REMOVAL/INSTALLATION.) (See COMBINATION SWITCH DISASSEMBLY/ASSEMBLY.)
