CLUTCH LOCATION INDEX

id051000800400

am3zzw00007962

F35M-R

am3zzw00007328

J65M-R

am3zzw00007329

G66M-R

am3zzw00007330

A26M-R

am3zzw00007331

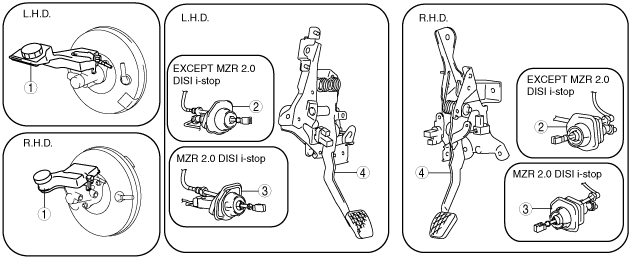

1	Reserve tank (See CLUTCH FLUID INSPECTION.) (See CLUTCH FLUID AIR BLEEDING/REPLACEMENT.)
2	Clutch master cylinder (See CLUTCH MASTER CYLINDER REMOVAL/INSTALLATION [EXCEPT MZR 2.0 DISI i-stop].)
3	Clutch stroke sensor (See CLUTCH STROKE SENSOR REMOVAL/INSTALLATION [MZR 2.0 DISI i-stop].)
4	Clutch pedal (See CLUTCH PEDAL INSPECTION/ADJUSTMENT.) (See CLUTCH PEDAL REMOVAL/INSTALLATION.)
5	Clutch release cylinder (See CLUTCH RELEASE CYLINDER REMOVAL/INSTALLATION [F35M-R].) (See CLUTCH RELEASE CYLINDER REMOVAL/INSTALLATION [G66M-R].) (See CLUTCH RELEASE CYLINDER REMOVAL/INSTALLATION [A26M-R (L3 Turbo)].) (See CLUTCH RELEASE CYLINDER REMOVAL/INSTALLATION [A26M-R (MZR-CD 2.2)].)
6	Clutch unit (See CLUTCH UNIT REMOVAL/INSTALLATION [J65M-R].) (See CLUTCH UNIT REMOVAL/INSTALLATION [F35M-R].) (See CLUTCH UNIT REMOVAL/INSTALLATION [G66M-R].) (See CLUTCH UNIT REMOVAL/INSTALLATION [A26M-R (L3 Turbo)].) (See CLUTCH UNIT REMOVAL/INSTALLATION [A26M-R (MZR-CD 2.2)].)
7	Flywheel (See FLYWHEEL INSPECTION [F35M-R].) (See FLYWHEEL INSPECTION [J65M-R].) (See FLYWHEEL INSPECTION [G66M-R].) (See FLYWHEEL INSPECTION [A26M-R (L3 Turbo)].) (See FLYWHEEL INSPECTION [A26M-R (MZR-CD 2.2)].)
8	Pilot bearing (See PILOT BEARING INSPECTION [F35M-R].) (See PILOT BEARING INSPECTION [G66M-R].) (See PILOT BEARING INSPECTION [A26M-R (L3 Turbo)].) (See PILOT BEARING INSPECTION [A26M-R (MZR-CD 2.2)].)
9	Clutch disc (See CLUTCH DISC INSPECTION [F35M-R].) (See CLUTCH DISC INSPECTION [J65M-R].) (See CLUTCH DISC INSPECTION [G66M-R].) (See CLUTCH DISC INSPECTION [A26M-R (L3 Turbo)].) (See CLUTCH DISC INSPECTION [A26M-R (MZR-CD 2.2)].)
10	Clutch cover (See CLUTCH COVER INSPECTION [F35M-R].) (See CLUTCH COVER INSPECTION [J65M-R].) (See CLUTCH COVER INSPECTION [G66M-R].) (See CLUTCH COVER INSPECTION [A26M-R (L3 Turbo)].) (See CLUTCH COVER INSPECTION [A26M-R (MZR-CD 2.2)].)
11	Clutch release collar (See CLUTCH RELEASE COLLAR INSPECTION [F35M-R].) (See CLUTCH RELEASE COLLAR INSPECTION [J65M-R].) (See CLUTCH RELEASE COLLAR INSPECTION [G66M-R].) (See CLUTCH RELEASE COLLAR INSPECTION [A26M-R (L3 Turbo)].) (See CLUTCH RELEASE COLLAR INSPECTION [A26M-R (MZR-CD 2.2)].)
12	Clutch release cylinder component (See CLUTCH RELEASE CYLINDER REMOVAL/INSTALLATION [J65M-R].)
