FRONT DRAIN HOSE REMOVAL

id091500801300

1.  Set the air intake mode to FRESH.

2.  Set the air mix mode to MAX COLD.

3.  Disconnect the negative battery cable.

4.  Partially peel back the seaming welt.

5.  Remove the rain sensor cover. (Vehicles with auto light / wiper system) (See RAIN SENSOR REMOVAL/INSTALLATION.)

6.  Disconnect the rain sensor connector. (Vehicles with auto light / wiper system)

7.  Remove the following parts:

(1)  Front doors (See FRONT DOOR REMOVAL/INSTALLATION.)

(2)  Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(3)  Front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(4)  Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION.)

(5)  Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

(6)  Upper panel (See UPPER PANEL REMOVAL/INSTALLATION.)

(7)  Shift lever knob (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION.)

(8)  Selector lever knob (ATX) (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION.)

(9)  Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)

(10)  Side wall (See SIDE WALL REMOVAL/INSTALLATION.)

(11)  Console (See CONSOLE REMOVAL/INSTALLATION.)

(12)  Shift lever component (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION.)

(13)  Selector lever component (ATX) (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION.)

(14)  Bonnet release lever from the lower panel (See BONNET LATCH AND RELEASE LEVER REMOVAL/INSTALLATION.)

(15)  Lower panel (See LOWER PANEL REMOVAL/INSTALLATION.)

(16)  Driver-side air bag module (See DRIVER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION.)

(17)  Steering wheel (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [WITHOUT ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM].) (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [WITH ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM].)

(18)  Column cover (See COLUMN COVER REMOVAL/INSTALLATION.)

(19)  Combination switch (See COMBINATION SWITCH REMOVAL/INSTALLATION.)

(20)  Joint cover (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [WITHOUT ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM].) (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [WITH ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM].)

(21)  Steering shaft (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [WITHOUT ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM].) (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [WITH ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM].)

(22)  Center panel (See CENTER PANEL REMOVAL/INSTALLATION.)

(23)  Audio unit (See AUDIO UNIT REMOVAL/INSTALLATION.)

(24)  Climate control unit (See CLIMATE CONTROL UNIT REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].) (See CLIMATE CONTROL UNIT REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER].)

(25)  Instrument cluster (See INSTRUMENT CLUSTER REMOVAL/INSTALLATION.)

(26)  Center cover (See CENTER COVER REMOVAL/INSTALLATION.)

(27)  Dashboard upper panel (See DASHBOARD UPPER PANEL REMOVAL/INSTALLATION.)

(28)  Hole cover (See HOLE COVER REMOVAL/INSTALLATION.)

(29)  Information display (See INFORMATION DISPLAY REMOVAL/INSTALLATION.)

(30)  A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)

(31)  Windshield wiper arm and blade (See WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION.)

(32)  Front fender molding (See COWL GRILLE REMOVAL/INSTALLATION.)

(33)  Cowl grille (See COWL GRILLE REMOVAL/INSTALLATION.)

(34)  Windshield wiper motor (See WINDSHIELD WIPER MOTOR REMOVAL/INSTALLATION.)

(35)  Dashboard (See DASHBOARD REMOVAL/INSTALLATION.)

(36)  Sunroof seaming welt

(37)  A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)

(38)  Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

(39)  B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)

(40)  Upper anchor of the front seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

(41)  B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION.)

(42)  Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)

(43)  Tire house trim (See TIRE HOUSE TRIM REMOVAL/INSTALLATION.)

(44)  Trunk side upper trim (5HB) (See TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION.)

(45)  C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION.)

(46)  Map light (See MAP LIGHT REMOVAL/INSTALLATION.)

(47)  Sunvisor (See SUNVISOR REMOVAL/INSTALLATION.)

(48)  Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION.)

(49)  Headliner (See HEADLINER REMOVAL/INSTALLATION.)

8.  Disconnect the auto-dimming mirror connector. (vehicles with auto-dimming mirror)

9.  Disconnect the roof harness connector, remove the clip, and remove the connector.

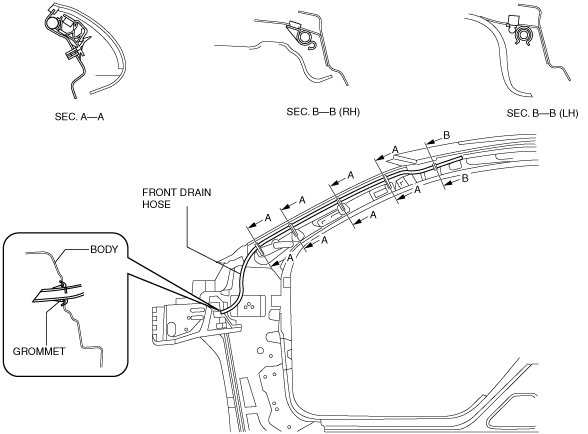

10.  Disconnect the front drain hose from the sunroof frame.

11.  Remove the front drain hose from the clips.

12.  Pull the front drain hose into the room side.

13.  Remove the front drain hose.
