HVAC CONTROL SYSTEM LOCATION INDEX[FULL-AUTO AIR CONDITIONER (MZ-CD 1.6 (Y6))]

id0740b4803600

L.H.D.

am3zzw00000823

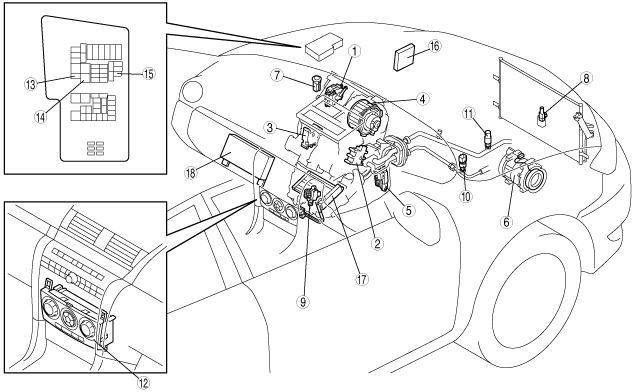

R.H.D.

am3zzw00000824

1	Air intake actuator (See AIR INTAKE ACTUATOR REMOVAL/INSTALLATION.) (See AIR INTAKE ACTUATOR INSPECTION.)
2	Air mix actuator (See AIR MIX ACTUATOR REMOVAL/INSTALLATION.) (See AIR MIX ACTUATOR INSPECTION.)
3	Airflow mode actuator (See AIRFLOW MODE ACTUATOR REMOVAL/INSTALLATION.) (See AIRFLOW MODE ACTUATOR INSPECTION.)
4	Blower motor (See BLOWER MOTOR REMOVAL.) (See BLOWER MOTOR INSTALLATION.) (See BLOWER MOTOR INSPECTION.)
5	Power MOS FET (See POWER METAL OXIDE SEMICONDUCTOR FIELD EFFECT TRANSISTOR (POWER MOS FET) REMOVAL/INSTALLATION.) (See POWER METAL OXIDE SEMICONDUCTOR FIELD EFFECT TRANSISTOR (POWER MOS FET) INSPECTION.)
6	Magnetic clutch (MZ-CD 1.6 (Y6)) (See MAGNETIC CLUTCH DISASSEMBLY/ASSEMBLY[MZ-CD 1.6 (Y6)].) (See MAGNETIC CLUTCH ADJUSTMENT[MZ-CD 1.6 (Y6)].) (See MAGNETIC CLUTCH INSPECTION[MZ-CD 1.6 (Y6)].)
7	Solar radiation sensor (See SOLAR RADIATION SENSOR REMOVAL/INSTALLATION.) (See SOLAR RADIATION SENSOR INSPECTION.)
8	Ambient temperature sensor (See AMBIENT TEMPERATURE SENSOR REMOVAL/INSTALLATION.) (See AMBIENT TEMPERATURE SENSOR INSPECTION.)
9	Cabin temperature sensor (See CABIN TEMPERATURE SENSOR REMOVAL/INSTALLATION.) (See CABIN TEMPERATURE SENSOR INSPECTION.)
10	Refrigerant pressure switch (See REFRIGERANT PRESSURE SWITCH REMOVAL/INSTALLATION[MZ-CD 1.6 (Y6)].) (See REFRIGERANT PRESSURE SWITCH INSPECTION[MZ-CD 1.6 (Y6)].)
11	A/C compressor cycling switch (See A/C COMPRESSOR CYCLING SWITCH REMOVAL/INSTALLATION[MZ-CD 1.6 (Y6)].) (See A/C COMPRESSOR CYCLING SWITCH INSPECTION[MZ-CD 1.6 (Y6)].)
12	Climate control unit (See CLIMATE CONTROL UNIT REMOVAL/INSTALLATION[FULL-AUTO AIR CONDITIONER].) (See CLIMATE CONTROL UNIT DISASSEMBLY/ASSEMBLY[FULL-AUTO AIR CONDITIONER].) (See CLIMATE CONTROL UNIT INSPECTION[FULL-AUTO AIR CONDITIONER (MZ-CD 1.6 (Y6))].)
13	A/C relay (See RELAY INSPECTION.)
14	Blower relay (See RELAY INSPECTION.)
15	PTC heater relay (See RELAY INSPECTION.)
16	PCM (MZ-CD 1.6 (Y6)) (See PCM INSPECTION[MZ-CD 1.6 (Y6)].)
17	PTC heater (See PTC (POSITIVE TEMPERATURE COEFFICIENT) HEATER REMOVAL/INSTALLATION[MZ-CD 1.6 (Y6)].) (See PTC (POSITIVE TEMPERATURE COEFFICIENT) HEATER INSPECTION[MZ-CD 1.6 (Y6)].)
18	PJB (See PASSENGER JUNCTION BOX (PJB) REMOVAL/INSTALLATION.) (See PASSENGER JUNCTION BOX (PJB) INSPECTION.)
