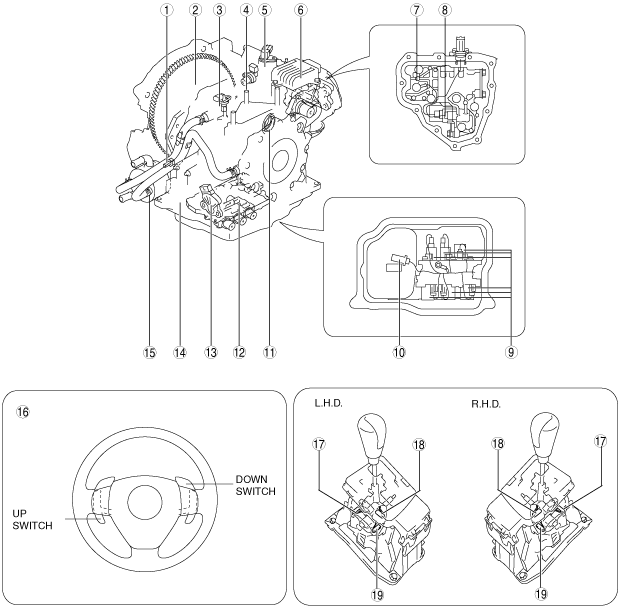

AUTOMATIC TRANSAXLE LOCATION INDEX [FS5A-EL]

id051721290500

am3zzw00010891

1	Oil pressure switch (See OIL PRESSURE SWITCH INSPECTION [FS5A-EL].) (See OIL PRESSURE SWITCH REMOVAL/INSTALLATION [FS5A-EL].)
2	Drive plate (See DRIVE PLATE REMOVAL/INSTALLATION [FS5A-EL].)
3	Input/turbine speed sensor (See INPUT/TURBINE SPEED SENSOR INSPECTION [FS5A-EL].) (See INPUT/TURBINE SPEED SENSOR REMOVAL/INSTALLATION [FS5A-EL].)
4	VSS (See VEHICLE SPEED SENSOR (VSS) INSPECTION [FS5A-EL].) (See VEHICLE SPEED SENSOR (VSS) REMOVAL/INSTALLATION [FS5A-EL].)
5	Intermediate sensor (See INTERMEDIATE SENSOR INSPECTION [FS5A-EL].) (See INTERMEDIATE SENSOR REMOVAL/INSTALLATION [FS5A-EL].)
6	TCM (See TCM INSPECTION [FS5A-EL].) (See TCM REMOVAL/INSTALLATION [FS5A-EL].)
7	Secondary control valve body (See CONTROL VALVE BODY REMOVAL/INSTALLATION [FS5A-EL].)
8	Pressure control solenoid B Shift solenoid F (See SOLENOID VALVE INSPECTION [FS5A-EL].) (See SOLENOID VALVE REMOVAL/INSTALLATION [FS5A-EL].)
9	Pressure control solenoid A Shift solenoid A Shift solenoid B Shift solenoid C Shift solenoid D Shift solenoid E (See SOLENOID VALVE INSPECTION [FS5A-EL].) (See SOLENOID VALVE REMOVAL/INSTALLATION [FS5A-EL].)
10	TFT sensor (See TRANSAXLE FLUID TEMPERATURE (TFT) SENSOR INSPECTION [FS5A-EL].) (See TRANSAXLE FLUID TEMPERATURE (TFT) SENSOR REMOVAL/INSTALLATION [FS5A-EL].)
11	Oil seal (See OIL SEAL REPLACEMENT [FS5A-EL].)
12	Primary control valve body (See CONTROL VALVE BODY REMOVAL/INSTALLATION [FS5A-EL].)
13	TR switch (See TRANSAXLE RANGE (TR) SWITCH INSPECTION [FS5A-EL].) (See TRANSAXLE RANGE (TR) SWITCH ADJUSTMENT [FS5A-EL].) (See TRANSAXLE RANGE (TR) SWITCH REMOVAL/INSTALLATION [FS5A-EL].)
14	Automatic transaxle (See MECHANICAL SYSTEM TEST [FS5A-EL].) (See ROAD TEST [FS5A-EL].) (See AUTOMATIC TRANSAXLE FLUID (ATF) INSPECTION [FS5A-EL].) (See AUTOMATIC TRANSAXLE FLUID (ATF) REPLACEMENT [FS5A-EL].) (See AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION [FS5A-EL].)
15	Oil cooler (See OIL COOLER REMOVAL/INSTALLATION [FS5A-EL].) (See OIL COOLER FLUSHING [FS5A-EL].)
16	Steering shift switch (See STEERING SHIFT SWITCH INSPECTION [FS5A-EL].) (See STEERING SHIFT SWITCH REMOVAL/INSTALLATION [FS5A-EL].)
17	Down switch (See DOWN SWITCH INSPECTION [FS5A-EL].) (See DOWN SWITCH REMOVAL/INSTALLATION [FS5A-EL].)
18	M range switch (See M RANGE SWITCH INSPECTION [FS5A-EL].) (See M RANGE SWITCH REMOVAL/INSTALLATION [FS5A-EL].)
19	Up switch (See UP SWITCH INSPECTION [FS5A-EL].) (See UP SWITCH REMOVAL/INSTALLATION [FS5A-EL].)
