HVAC CONTROL SYSTEM LOCATION INDEX [FULL-AUTO AIR CONDITIONER]

id0740a1803600

L.H.D.

am3zzw00011932

1	Rear window defroster relay (See RELAY LOCATION.) (See RELAY INSPECTION.)
2	Heated windshield relay No.1 (vehicles with heated windshield) (MZ-CD 1.6, MZR-CD 2.2) (See RELAY LOCATION.) (See RELAY INSPECTION.)
3	Heated windshield relay No.2 (vehicles with heated windshield) (MZR 2.0 DISI i-stop) (See RELAY LOCATION.) (See RELAY INSPECTION.)
4	Heated windshield relay No.2 (vehicles with heated windshield) (MZ-CD 1.6, MZR-CD 2.2) (See RELAY LOCATION.) (See RELAY INSPECTION.)
5	Blower relay (See RELAY LOCATION.) (See RELAY INSPECTION.)
6	A/C relay (See RELAY LOCATION.) (See RELAY INSPECTION.)
7	Blower motor (See BLOWER MOTOR REMOVAL [FULL-AUTO AIR CONDITIONER].) (See BLOWER MOTOR INSTALLATION [FULL-AUTO AIR CONDITIONER].) (See BLOWER MOTOR INSPECTION [FULL-AUTO AIR CONDITIONER].)
8	Solar radiation sensor (See SOLAR RADIATION SENSOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].) (See SOLAR RADIATION SENSOR INSPECTION [FULL-AUTO AIR CONDITIONER].)
9	Air intake actuator (See AIR INTAKE ACTUATOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].) (See AIR INTAKE ACTUATOR INSPECTION [FULL-AUTO AIR CONDITIONER].)
10	Refrigerant pressure sensor (MZR 2.0, MZR 2.0 DISI i-stop, MZR 2.3 DISI Turbo, MZ-CD 1.6) (See REFRIGERANT PRESSURE SENSOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].) (See REFRIGERANT PRESSURE SENSOR INSPECTION [FULL-AUTO AIR CONDITIONER].)
	Refrigerant pressure switch (MZR 1.5, MZR 1.6, MZR-CD 2.2) (See REFRIGERANT PRESSURE SWITCH REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].) (See REFRIGERANT PRESSURE SWITCH INSPECTION [FULL-AUTO AIR CONDITIONER].)
11	Ambient temperature sensor (See AMBIENT TEMPERATURE SENSOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].) (See AMBIENT TEMPERATURE SENSOR INSPECTION [FULL-AUTO AIR CONDITIONER].)
12	Magnetic clutch (See MAGNETIC CLUTCH DISASSEMBLY/ASSEMBLY [FULL-AUTO AIR CONDITIONER].) (See MAGNETIC CLUTCH ADJUSTMENT [FULL-AUTO AIR CONDITIONER].) (See MAGNETIC CLUTCH INSPECTION [FULL-AUTO AIR CONDITIONER].)
13	Fuel pump (vehicles with water heater system) (MZR-CD 2.2) (See FUEL PUMP (WATER HEATER SYSTEM) REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].) (See FUEL PUMP (WATER HEATER SYSTEM) INSPECTION [FULL-AUTO AIR CONDITIONER].)
14	Water heater unit (vehicles with water heater system) (MZR-CD 2.2) (See WATER HEATER UNIT REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].) (See WATER HEATER SYSTEM INITIAL SETTING [FULL-AUTO AIR CONDITIONER].)
15	Power MOS FET (See POWER METAL OXIDE SEMICONDUCTOR FIELD EFFECT TRANSISTOR (POWER MOS FET) REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].) (See POWER METAL OXIDE SEMICONDUCTOR FIELD EFFECT TRANSISTOR (POWER MOS FET) INSPECTION [FULL-AUTO AIR CONDITIONER].)
16	Passenger-side air mix actuator (See AIR MIX ACTUATOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].) (See AIR MIX ACTUATOR INSPECTION [FULL-AUTO AIR CONDITIONER].)
17	Evaporator temperature sensor (See EVAPORATOR TEMPERATURE SENSOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].) (See EVAPORATOR TEMPERATURE SENSOR INSPECTION [FULL-AUTO AIR CONDITIONER].)
18	Driver-side air mix actuator (See AIR MIX ACTUATOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].) (See AIR MIX ACTUATOR INSPECTION [FULL-AUTO AIR CONDITIONER].)
19	Climate control unit (See CLIMATE CONTROL UNIT REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].) (See CLIMATE CONTROL UNIT INSPECTION [FULL-AUTO AIR CONDITIONER].)
20	Heater core temperature sensor (vehicles with i-stop) (See HEATER CORE TEMPERATURE SENSOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].) (See HEATER CORE TEMPERATURE SENSOR INSPECTION [FULL-AUTO AIR CONDITIONER].)
21	PTC heater (vehicles with PTC heater) (MZ-CD 1.6) (See PTC (POSITIVE TEMPERATURE COEFFICIENT) HEATER REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].) (See PTC (POSITIVE TEMPERATURE COEFFICIENT) HEATER INSPECTION [FULL-AUTO AIR CONDITIONER].)
22	Cabin temperature sensor (See CABIN TEMPERATURE SENSOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].) (See CABIN TEMPERATURE SENSOR INSPECTION [FULL-AUTO AIR CONDITIONER].)
23	Airflow mode actuator (See AIRFLOW MODE ACTUATOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].) (See AIRFLOW MODE ACTUATOR INSPECTION [FULL-AUTO AIR CONDITIONER].)
24	Heated windshield relay No.1 (vehicles with heated windshield) (MZR 1.6, MZR 2.0, MZR 2.3 DISI Turbo, MZR 2.0 DISI i-stop) (See RELAY LOCATION.) (See RELAY INSPECTION.)
25	Heated windshield relay No.2 (vehicles with heated windshield) (MZR 2.0, MZR 1.6, MZR 2.3 DISI Turbo) (See RELAY LOCATION.) (See RELAY INSPECTION.)

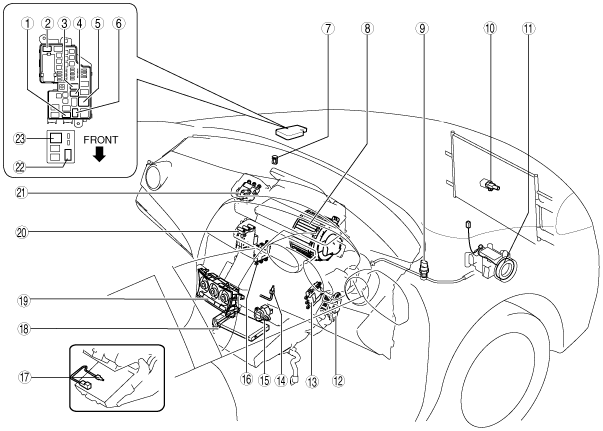

R.H.D.

am3zzw00011022

1	Rear window defroster relay (See RELAY LOCATION.) (See RELAY INSPECTION.)
2	Heated windshield relay No.1 (vehicles with heated windshield) (MZ-CD 1.6, MZR-CD 2.2) (See RELAY LOCATION.) (See RELAY INSPECTION.)
3	Heated windshield relay No.2 (vehicles with heated windshield) (MZR 2.0 DISI i-stop) (See RELAY LOCATION.) (See RELAY INSPECTION.)
4	Heated windshield relay No.2 (vehicles with heated windshield) (MZ-CD 1.6, MZR-CD 2.2) (See RELAY LOCATION.) (See RELAY INSPECTION.)
5	Blower relay (See RELAY LOCATION.) (See RELAY INSPECTION.)
6	A/C relay (See RELAY LOCATION.) (See RELAY INSPECTION.)
7	Solar radiation sensor (See SOLAR RADIATION SENSOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].) (See SOLAR RADIATION SENSOR INSPECTION [FULL-AUTO AIR CONDITIONER].)
8	Blower motor (See BLOWER MOTOR REMOVAL [FULL-AUTO AIR CONDITIONER].) (See BLOWER MOTOR INSTALLATION [FULL-AUTO AIR CONDITIONER].) (See BLOWER MOTOR INSPECTION [FULL-AUTO AIR CONDITIONER].)
9	Refrigerant pressure sensor (SKYACTIV-G 2.0, MZR 2.0, MZR 2.0 DISI i-stop, MZR 2.3 DISI Turbo, MZR 2.5, MZ-CD 1.6) (See REFRIGERANT PRESSURE SENSOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].) (See REFRIGERANT PRESSURE SENSOR INSPECTION [FULL-AUTO AIR CONDITIONER].)
	Refrigerant pressure switch (MZR 1.5, MZR 1.6, MZR-CD 2.2) (See REFRIGERANT PRESSURE SWITCH REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].) (See REFRIGERANT PRESSURE SWITCH INSPECTION [FULL-AUTO AIR CONDITIONER].)
10	Ambient temperature sensor (See AMBIENT TEMPERATURE SENSOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].) (See AMBIENT TEMPERATURE SENSOR INSPECTION [FULL-AUTO AIR CONDITIONER].)
11	Magnetic clutch (See MAGNETIC CLUTCH DISASSEMBLY/ASSEMBLY [FULL-AUTO AIR CONDITIONER].) (See MAGNETIC CLUTCH ADJUSTMENT [FULL-AUTO AIR CONDITIONER].) (See MAGNETIC CLUTCH INSPECTION [FULL-AUTO AIR CONDITIONER].)
12	Power MOS FET (See POWER METAL OXIDE SEMICONDUCTOR FIELD EFFECT TRANSISTOR (POWER MOS FET) REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].) (See POWER METAL OXIDE SEMICONDUCTOR FIELD EFFECT TRANSISTOR (POWER MOS FET) INSPECTION [FULL-AUTO AIR CONDITIONER].)
13	Driver-side air mix actuator (See AIR MIX ACTUATOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].) (See AIR MIX ACTUATOR INSPECTION [FULL-AUTO AIR CONDITIONER].)
14	Evaporator temperature sensor (See EVAPORATOR TEMPERATURE SENSOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].) (See EVAPORATOR TEMPERATURE SENSOR INSPECTION [FULL-AUTO AIR CONDITIONER].)
15	Cabin temperature sensor (See CABIN TEMPERATURE SENSOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].) (See CABIN TEMPERATURE SENSOR INSPECTION [FULL-AUTO AIR CONDITIONER].)
16	Passenger-side air mix actuator (See AIR MIX ACTUATOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].) (See AIR MIX ACTUATOR INSPECTION [FULL-AUTO AIR CONDITIONER].)
17	Heater core temperature sensor (vehicles with i-stop) (See HEATER CORE TEMPERATURE SENSOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].) (See HEATER CORE TEMPERATURE SENSOR INSPECTION [FULL-AUTO AIR CONDITIONER].)
18	PTC heater (vehicles with PTC heater) (MZ-CD 1.6) (See PTC (POSITIVE TEMPERATURE COEFFICIENT) HEATER REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].) (See PTC (POSITIVE TEMPERATURE COEFFICIENT) HEATER INSPECTION [FULL-AUTO AIR CONDITIONER].)
19	Climate control unit (See CLIMATE CONTROL UNIT REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].) (See CLIMATE CONTROL UNIT INSPECTION [FULL-AUTO AIR CONDITIONER].)
20	Airflow mode actuator (See AIRFLOW MODE ACTUATOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].) (See AIRFLOW MODE ACTUATOR INSPECTION [FULL-AUTO AIR CONDITIONER].)
21	Air intake actuator (See AIR INTAKE ACTUATOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].) (See AIR INTAKE ACTUATOR INSPECTION [FULL-AUTO AIR CONDITIONER].)
22	Heated windshield relay No.1 (vehicles with heated windshield) (MZR 1.6, MZR 2.0, MZR 2.3 DISI Turbo, MZR 2.0 DISI i-stop) (See RELAY LOCATION.) (See RELAY INSPECTION.)
23	Heated windshield relay No.2 (vehicles with heated windshield) (MZR 2.0, MZR 1.6, MZR 2.3 DISI Turbo) (See RELAY LOCATION.) (See RELAY INSPECTION.)
