AIR INTAKE ACTUATOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER]

id0740a1801400

L.H.D.

1.  Set the air intake mode to FRESH.

2.  Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZR 1.5, MZR 1.6].) (See BATTERY REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5].) (See BATTERY REMOVAL/INSTALLATION [MZR 2.0 DISI i-stop].) (See BATTERY REMOVAL/INSTALLATION [MZR 2.3 DISI Turbo].) (See BATTERY REMOVAL/INSTALLATION [MZ-CD 1.6].) (See BATTERY REMOVAL/INSTALLATION [MZR-CD 2.2].)

3.  Remove the following parts:

(1)  Front scuff plate (Passenger-side) (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(2)  Front side trim (Passenger-side) (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(3)  Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION.)

(4)  Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

(5)  Lower panel (Passenger-side) (See LOWER PANEL REMOVAL/INSTALLATION.)

(6)  Shower duct (Passenger-side) (See A/C UNIT REMOVAL/INSTALLATION.)

4.  Disconnect the harness clip from the blower case.

5.  Disconnect the air intake actuator connector.

6.  Remove the blower case. (See BLOWER MOTOR REMOVAL [FULL-AUTO AIR CONDITIONER].) (See BLOWER MOTOR INSTALLATION [FULL-AUTO AIR CONDITIONER].)

7.  Remove the screw A.

am3uuw00004033

8.  Remove the air intake actuator link.

9.  Remove the screw B.

10.  Remove the air intake actuator.

11.  Install in the reverse order of removal.

R.H.D.

1.  Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZR 1.5, MZR 1.6].) (See BATTERY REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5].) (See BATTERY REMOVAL/INSTALLATION [MZR 2.0 DISI i-stop].) (See BATTERY REMOVAL/INSTALLATION [MZR 2.3 DISI Turbo].) (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.0].) (See BATTERY REMOVAL/INSTALLATION [MZ-CD 1.6].) (See BATTERY REMOVAL/INSTALLATION [MZR-CD 2.2].)

2.  Remove the following parts:

(1)  Upper panel (See UPPER PANEL REMOVAL/INSTALLATION.)

(2)  Shift lever knob (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION.)

(3)  Selector lever knob (ATX/CVT) (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION.) (See CVT (CONTINUOUSLY VARIABLE TRANSAXLE) SHIFT MECHANISM REMOVAL/INSTALLATION.)

(4)  Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)

(5)  Side wall (See SIDE WALL REMOVAL/INSTALLATION.)

(6)  Console (See CONSOLE REMOVAL/INSTALLATION.)

(7)  Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(8)  Front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(9)  Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION.)

(10)  Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

(11)  Lower panel (passenger-side) (See LOWER PANEL REMOVAL/INSTALLATION.)

(12)  Bonnet release lever (See BONNET LATCH AND RELEASE LEVER REMOVAL/INSTALLATION.)

(13)  Lower panel (driver-side) (See LOWER PANEL REMOVAL/INSTALLATION.)

(14)  Shower duct (RH) (See A/C UNIT REMOVAL/INSTALLATION.)

(15)  Center panel (See CENTER PANEL REMOVAL/INSTALLATION.)

(16)  Center lower panel (Vehicles without audio unit) (See CENTER LOWER PANEL REMOVAL/INSTALLATION.)

(17)  Audio unit (Vehicles with audio unit) (See AUDIO UNIT REMOVAL/INSTALLATION.)

(18)  Climate control unit (See CLIMATE CONTROL UNIT REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)

(19)  Driver-side air bag module (See DRIVER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION.)

(20)  Steering wheel (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [WITHOUT ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM].) (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [WITH ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM].)

(21)  Column cover (See COLUMN COVER REMOVAL/INSTALLATION.)

(22)  Combination switch (See COMBINATION SWITCH REMOVAL/INSTALLATION.)

(23)  Instrument cluster (See INSTRUMENT CLUSTER REMOVAL/INSTALLATION.)

(24)  Center cover (See CENTER COVER REMOVAL/INSTALLATION.)

(25)  Dashboard upper panel (See DASHBOARD UPPER PANEL REMOVAL/INSTALLATION.)

(26)  Hole cover (See HOLE COVER REMOVAL/INSTALLATION.)

(27)  Information display (See INFORMATION DISPLAY REMOVAL/INSTALLATION.) (See MULTI INFORMATION DISPLAY REMOVAL/INSTALLATION.)

(28)  A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)

(29)  Ventilator grille (See VENTILATOR GRILLE REMOVAL/INSTALLATION.)

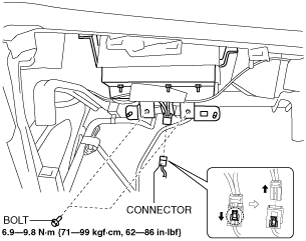

3.  Remove the passenger-side air bag module installation bolt.

am3zzw00011933

4.  Disconnect the passenger-side air bag module connector.

5.  Remove the screws and the panel of the dashboard.

am3zzw00006969

6.  Remove the dashboard wiring harness and clips.

am3zzw00006748

7.  Disconnect the solar radiation sensor connector.

8.  Remove the panel of the dashboard.

9.  Disconnect the harness clip from the blower case.

10.  Disconnect the air intake actuator connector.

am3zzw00006726

11.  Remove the screw A.

12.  Remove the air intake actuator link.

13.  Remove the screw B.

14.  Remove the air intake actuator.

15.  Install in the reverse order of removal.
