LIGHTING SYSTEMS LOCATION INDEX

id091800800100

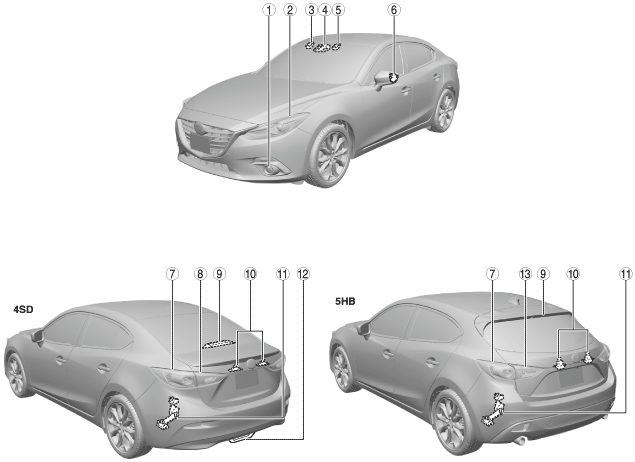

Exterior

am3zzw00013850

1	Front fog light (with front fog lights) (See FRONT FOG LIGHT REMOVAL/INSTALLATION.) (See FRONT FOG LIGHT INSPECTION [LED TYPE].) (See FRONT FOG LIGHT BULB REMOVAL/INSTALLATION.) (See FRONT FOG LIGHT AIMING.)
2	Front combination light (See DISCHARGE HEADLIGHT SERVICE WARNINGS.) (See FRONT COMBINATION LIGHT REMOVAL/INSTALLATION.) (See FRONT COMBINATION LIGHT DISASSEMBLY/ASSEMBLY.) (See HEADLIGHT BULB REMOVAL/INSTALLATION.) (See HEADLIGHT AIMING.) (See IGNITER REMOVAL/INSTALLATION.) (See DISCHARGE HEADLIGHT CONTROL MODULE REMOVAL/INSTALLATION.) (See DISCHARGE HEADLIGHT SYSTEM INSPECTION.) (See HEADLIGHT LEVELING ACTUATOR INSPECTION.) (See PARKING LIGHT BULB REMOVAL/INSTALLATION.)
3	Auto light sensor (with auto light system) (without high beam control (HBC) system and smart city brake support (SCBS)) (L.H.D.) (with high beam control (HBC) system or smart city brake support (SCBS)) (R.H.D.) (See AUTO LIGHT SENSOR REMOVAL/INSTALLATION.) (See LIGHTING SYSTEM PERSONALIZATION FEATURES SETTING PROCEDURE.)
4	Forward sensing camera (FSC) (with forward sensing camera (FSC)) (See FORWARD SENSING CAMERA (FSC) REMOVAL/INSTALLATION.) (See FORWARD SENSING CAMERA (FSC) CLIP REMOVAL/INSTALLATION.) (See FORWARD SENSING CAMERA (FSC) COVER REMOVAL/INSTALLATION.) (See FORWARD SENSING CAMERA (FSC) SHORT-CORD REMOVAL/INSTALLATION.) (See FORWARD SENSING CAMERA (FSC) SHORT-CORD INSPECTION.) (See FORWARD SENSING CAMERA (FSC) AIMING.) (See FORWARD SENSING CAMERA (FSC) CONFIGURATION (USING READ/WRITE FUNCTION).) (See FORWARD SENSING CAMERA (FSC) CONFIGURATION (USING AS-BUILT DATA).) (See FORWARD SENSING CAMERA (FSC) PERSONALIZATION FEATURES SETTING PROCEDURE.) (See LIGHTING SYSTEM PERSONALIZATION FEATURES SETTING PROCEDURE.)
5	Auto light sensor (with auto light system) (with high beam control (HBC) system or smart city brake support (SCBS)) (L.H.D.) (without high beam control (HBC) system and smart city brake support (SCBS)) (R.H.D.) (See AUTO LIGHT SENSOR REMOVAL/INSTALLATION.) (See LIGHTING SYSTEM PERSONALIZATION FEATURES SETTING PROCEDURE.)
6	Side turn light (See SIDE TURN LIGHT REMOVAL/INSTALLATION.) (See SIDE TURN LIGHT INSPECTION.)
7	Rear combination light (See REAR COMBINATION LIGHT REMOVAL/INSTALLATION.) (See REAR TURN LIGHT BULB REMOVAL/INSTALLATION.) (See BRAKE LIGHT/TAILLIGHT BULB REMOVAL/INSTALLATION.)
8	Trunk lid light (4SD) (See TRUNK LID LIGHT REMOVAL/INSTALLATION.) (See BACK-UP LIGHT BULB REMOVAL/INSTALLATION.)
9	High-mount brake light (See HIGH-MOUNT BRAKE LIGHT REMOVAL/INSTALLATION.)
10	License plate lights (See LICENSE PLATE LIGHT REMOVAL/INSTALLATION.) (See LICENSE PLATE LIGHT BULB REMOVAL/INSTALLATION.)
11	Auto leveling sensor (with headlight auto leveling system) (See AUTO LEVELING SENSOR REMOVAL/INSTALLATION.) (See AUTO LEVELING SENSOR INSPECTION.) (See HEADLIGHT AUTO LEVELING SYSTEM INITIALIZATION.)
12	Rear fog light (4SD) (with rear fog light) (See REAR FOG LIGHT REMOVAL/INSTALLATION.) (See REAR FOG LIGHT SHORT CORD REMOVAL/INSTALLATION.)
13	Liftgate light (5HB) (See LIFTGATE LIGHT REMOVAL/INSTALLATION.) (See BACK-UP LIGHT BULB REMOVAL/INSTALLATION.) (See REAR FOG LIGHT BULB REMOVAL/INSTALLATION.)

Interior

am3zzw00016869

1	Brake light unit (4SD) (with smart brake support (SBS)) (See BRAKE LIGHT UNIT REMOVAL/INSTALLATION.) (See BRAKE LIGHT UNIT INSPECTION.)
2	Rear map light (with rear map light) (See LIGHTING SYSTEM PERSONALIZATION FEATURES SETTING PROCEDURE.) (See REAR MAP LIGHT REMOVAL/INSTALLATION.) (See REAR MAP LIGHT BULB REMOVAL/INSTALLATION.)
3	Front map light (See LIGHTING SYSTEM PERSONALIZATION FEATURES SETTING PROCEDURE.) (See FRONT MAP LIGHT REMOVAL/INSTALLATION.) (See FRONT MAP LIGHT BULB REMOVAL/INSTALLATION.) (See FRONT MAP LIGHT INSPECTION.)
4	Vanity mirror illumination (with vanity mirror illumination) (See VANITY MIRROR ILLUMINATION BULB REMOVAL/INSTALLATION.) (See VANITY MIRROR ILLUMINATION INSPECTION.)
5	Back-up light switch (MTX) (See BACK-UP LIGHT SWITCH INSPECTION.)
6	Light switch (See LIGHT SWITCH REMOVAL/INSTALLATION.) (See LIGHT SWITCH INSPECTION.) (See FRONT FOG LIGHT SWITCH INSPECTION.) (See REAR FOG LIGHT SWITCH INSPECTION.)
7	Headlight leveling switch (with headlight manual leveling system) (See HEADLIGHT LEVELING SWITCH REMOVAL/INSTALLATION.) (See HEADLIGHT LEVELING SWITCH INSPECTION.)
8	AFS OFF switch (with AFS) (See ADAPTIVE FRONT LIGHTING SYSTEM (AFS) OFF SWITCH REMOVAL/INSTALLATION.) (See ADAPTIVE FRONT LIGHTING SYSTEM (AFS) OFF SWITCH INSPECTION.)
9	Steering angle sensor (with AFS or smart city brake support (SCBS)) (See STEERING ANGLE SENSOR REMOVAL/INSTALLATION.) (See STEERING ANGLE SENSOR INSPECTION.)
10	Hazard warning switch (See HAZARD WARNING SWITCH REMOVAL/INSTALLATION.) (See HAZARD WARNING SWITCH INSPECTION.)
11	Auto leveling control module (with headlight auto leveling system)/AFS control module (with AFS) (See AUTO LEVELING CONTROL MODULE REMOVAL/INSTALLATION.) (See ADAPTIVE FRONT LIGHTING SYSTEM (AFS) CONTROL MODULE REMOVAL/INSTALLATION.) (See HEADLIGHT AUTO LEVELING SYSTEM INITIALIZATION.)
12	Glove compartment light (with glove compartment light) (See GLOVE COMPARTMENT LIGHT BULB REMOVAL/INSTALLATION.)
13	Trunk compartment light (4SD) (See TRUNK COMPARTMENT LIGHT BULB REMOVAL/INSTALLATION.)
14	Brake light unit (5HB) (with smart brake support (SBS)) (See BRAKE LIGHT UNIT REMOVAL/INSTALLATION.) (See BRAKE LIGHT UNIT INSPECTION.)
15	Cargo compartment light (5HB) (See CARGO COMPARTMENT LIGHT REMOVAL/INSTALLATION.) (See CARGO COMPARTMENT LIGHT BULB REMOVAL/INSTALLATION.) (See CARGO COMPARTMENT LIGHT INSPECTION.)
