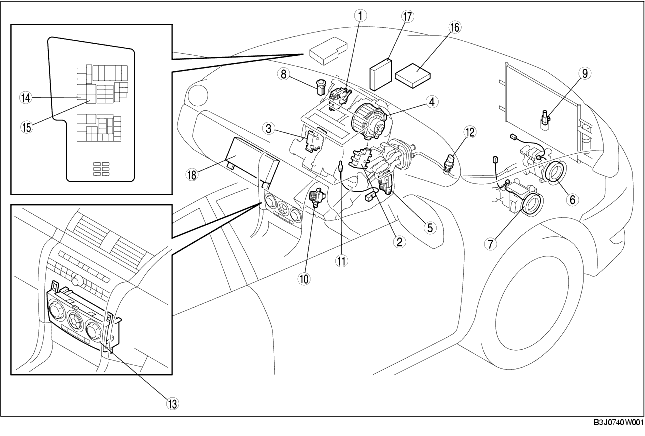

L.H.D.

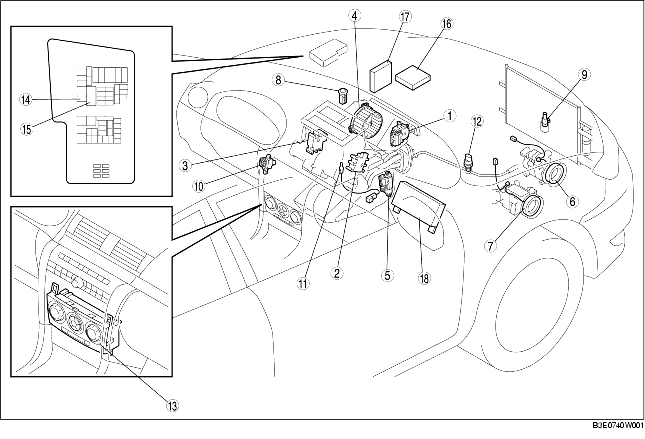

R.H.D.
.
|
1
|
Air intake actuator
|
|
2
|
Air mix actuator
(See AIR MIX ACTUATOR INSPECTION.)
|
|
3
|
Airflow mode actuator
|
|
4
|
Blower motor
(See BLOWER MOTOR REMOVAL.)
(See BLOWER MOTOR INSTALLATION.)
(See BLOWER MOTOR INSPECTION.)
|
|
5
|
Power MOS FET
(See POWER MOS FET INSPECTION.)
|
|
6
|
Magnetic clutch (Z6, ZY)
(See MAGNETIC CLUTCH ADJUSTMENT.)
|
|
7
|
Magnetic clutch (LF, L3)
(See MAGNETIC CLUTCH ADJUSTMENT.)
|
|
8
|
Solar radiation sensor
|
|
9
|
Ambient temperature sensor
|
|
10
|
Cabin temperature sensor
|
|
11
|
Evaporator temperature sensor
|
|
12
|
Refrigerant pressure switch
|
|
13
|
Climate control unit
|
|
14
|
A/C relay
(See RELAY INSPECTION.)
|
|
15
|
Blower relay
(See RELAY INSPECTION.)
|
|
16
|
PCM (ZY, Z6)
(See PCM INSPECTION [ZY, Z6].)
|
|
17
|
PCM (LF, L3)
(See PCM INSPECTION [LF, L3].)
|
|
18
|
PJB
|
