LIGHTING SYSTEMS LOCATION INDEX

id091800800100

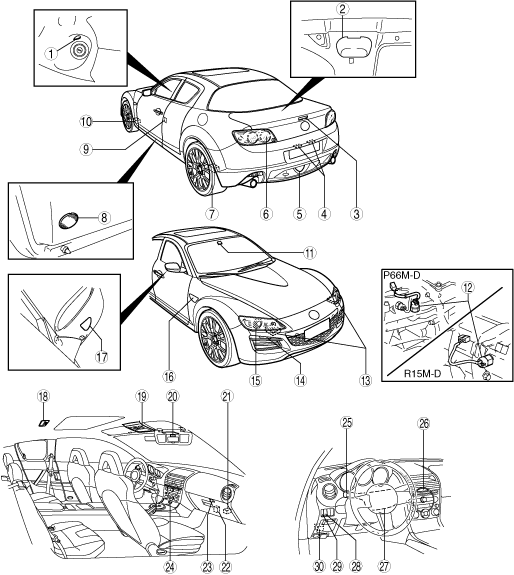

L.H.D.

ar8wzw00001094

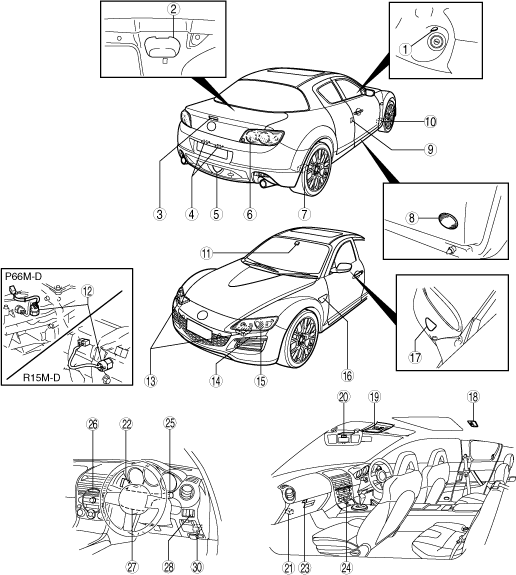

R.H.D.

ar8wzw00001095

1	Ignition key illumination (See IGNITION KEY ILLUMINATION BULB REMOVAL/INSTALLATION.)
2	Trunk compartment light (See TRUNK COMPARTMENT LIGHT BULB REMOVAL/INSTALLATION.)
3	High-mount brake light (See HIGH-MOUNT BRAKE LIGHT REMOVAL/INSTALLATION.)
4	License plate light (See LICENSE PLATE LIGHT BULB REMOVAL/INSTALLATION.) (See LICENSE PLATE LIGHT REMOVAL/INSTALLATION.)
5	Rear fog light (See REAR FOG LIGHT REMOVAL/INSTALLATION.) (See REAR FOG LIGHT SWITCH INSPECTION.)
6	Rear combination light (See REAR COMBINATION LIGHT REMOVAL/INSTALLATION.)
7	Rear auto leveling sensor (See REAR AUTO LEVELING SENSOR REMOVAL/INSTALLATION.)
8	Courtesy light (See COURTESY LIGHT BULB REMOVAL/INSTALLATION.)
9	Door switch (See DOOR SWITCH REMOVAL/INSTALLATION.) (See DOOR SWITCH INSPECTION.)
10	Front auto leveling sensor (See FRONT AUTO LEVELING SENSOR REMOVAL/INSTALLATION.)
11	Auto light sensor (See RAIN SENSOR REMOVAL/INSTALLATION.) (See RAIN SENSOR INITIALIZATION SETTING.)
12	Back-up light switch (See BACK-UP LIGHT SWITCH REMOVAL/INSTALLATION.) (See BACK-UP LIGHT SWITCH INSPECTION.)
13	Discharge headlight control module (See DISCHARGE HEADLIGHT SYSTEM INSPECTION.)
14	Front fog light (See FRONT FOG LIGHT REMOVAL/INSTALLATION.) (See FRONT FOG LIGHT AIMING.) (See FRONT FOG LIGHT BULB REMOVAL/INSTALLATION.)
15	Front combination light (See FRONT COMBINATION LIGHT REMOVAL/INSTALLATION.) (See HEADLIGHT AIMING.) (See HEADLIGHT BULB REMOVAL/INSTALLATION.) (See FRONT TURN LIGHT BULB REMOVAL/INSTALLATION.) (See DISCHARGE HEADLIGHT SERVICE WARNINGS.)
16	Front side turn light (See FRONT SIDE TURN LIGHT REMOVAL/INSTALLATION.)
17	Ground illumination light (See GROUND ILLUMINATION LIGHT REMOVAL/INSTALLATION.)
18	Interior light (See INTERIOR LIGHT REMOVAL/INSTALLATION.) (See INTERIOR LIGHT INSPECTION.)
19	Map light (See MAP LIGHT REMOVAL/INSTALLATION.) (See MAP LIGHT INSPECTION.)
20	Vanity mirror illumination (See VANITY MIRROR ILLUMINATION BULB REMOVAL/INSTALLATION.)
21	Auto leveling control module (See AUTO LEVELING CONTROL MODULE REMOVAL/INSTALLATION.)
22	Auto light/wiper control module (See AUTO LIGHT ILLUMINATION LEVEL SETTING.) (See AUTO LIGHT/WIPER CONTROL MODULE REMOVAL/INSTALLATION.) (See AUTO LIGHT/WIPER CONTROL MODULE INSPECTION.)
23	Glove compartment light (See GLOVE COMPARTMENT LIGHT BULB REMOVAL/INSTALLATION.)
24	Ashtray illumination (See ASHTRAY ILLUMINATION BULB REMOVAL/INSTALLATION.)
25	Light switch (See LIGHT SWITCH REMOVAL/INSTALLATION.) (See LIGHT SWITCH INSPECTION.) (See FRONT FOG LIGHT SWITCH INSPECTION.)
26	Hazard warning switch (See HAZARD WARNING SWITCH REMOVAL/INSTALLATION.) (See HAZARD WARNING SWITCH INSPECTION.)
27	Combination switch (See COMBINATION SWITCH REMOVAL/INSTALLATION.) (See COMBINATION SWITCH DISASSEMBLY/ASSEMBLY.)
28	Flasher control module (See FLASHER CONTROL MODULE REMOVAL/INSTALLATION.) (See FLASHER CONTROL MODULE INSPECTION.)
29	Headlight leveling control switch (Vehicles with headlight leveling control switch) (See HEADLIGHT LEVELING SWITCH REMOVAL/INSTALLATION.) (See HEADLIGHT LEVELING SWITCH INSPECTION.)
30	Panel light control switch (See PANEL LIGHT CONTROL SWITCH REMOVAL/INSTALLATION.) (See PANEL LIGHT CONTROL SWITCH INSPECTION.)
