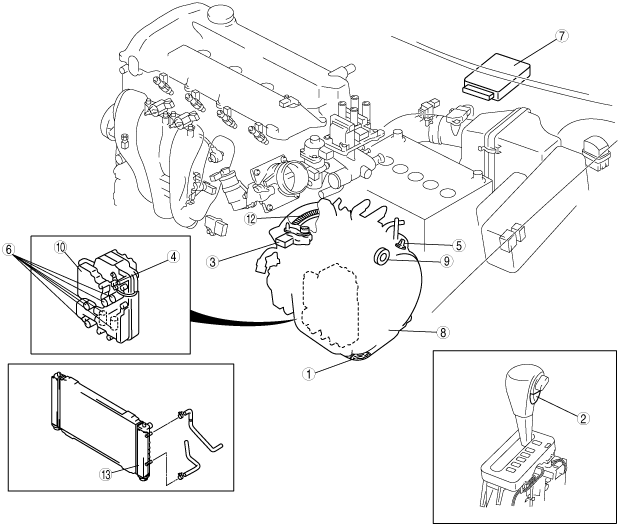

AUTOMATIC TRANSAXLE LOCATION INDEX[GF4AX-EL]

id051703802000

atraaw00001900

1	Automatic transaxle fluid (ATF) (See AUTOMATIC TRANSAXLE FLUID (ATF) INSPECTION[GF4AX-EL].) (See AUTOMATIC TRANSAXLE FLUID (ATF) REPLACEMENT[GF4AX-EL].)
2	O/D OFF switch (See O/D OFF SWITCH INSPECTION[GF4AX-EL].)
3	Transaxle range (TR) switch (See TRANSAXLE RANGE (TR) SWITCH INSPECTION[GF4AX-EL].) (See TRANSAXLE RANGE (TR) SWITCH REMOVAL/INSTALLATION[GF4AX-EL].) (See TRANSAXLE RANGE (TR) SWITCH ADJUSTMENT[GF4AX-EL].)
4	Transaxle fluid temperature (TFT) sensor (See TRANSAXLE FLUID TEMPERATURE (TFT) SENSOR INSPECTION[GF4AX-EL].) (See TRANSAXLE FLUID TEMPERATURE (TFT) SENSOR REMOVAL/INSTALLATION[GF4AX-EL].)
5	Input/turbine speed sensor (See INPUT/TURBINE SPEED SENSOR INSPECTION[GF4AX-EL].) (See INPUT/TURBINE SPEED SENSOR REMOVAL/INSTALLATION[GF4AX-EL].)
6	Solenoid valve (See SOLENOID VALVE INSPECTION[GF4AX-EL].) (See SOLENOID VALVE REMOVAL/INSTALLATION[GF4AX-EL].)
7	PCM (See PCM INSPECTION[GF4AX-EL].) (See PCM REMOVAL/INSTALLATION[GF4AX-EL].)
8	Automatic transaxle and transfer (See MECHANICAL SYSTEM TEST[GF4AX-EL].) (See ROAD TEST[GF4AX-EL].) (See AUTOMATIC TRANSAXLE AND TRANSFER REMOVAL/INSTALLATION[GF4AX-EL].)
9	Oil seal (See OIL SEAL REPLACEMENT[GF4AX-EL].)
10	Control valve body (See CONTROL VALVE BODY REMOVAL/INSTALLATION[GF4AX-EL].)
11	Oil cooler (See OIL COOLER FLUSHING[GF4AX-EL].) (See OIL COOLER REMOVAL/INSTALLATION[GF4AX-EL].)
12	Drive plate (See DRIVE PLATE REMOVAL/INSTALLATION[GF4AX-EL].)
