BLOWER UNIT REMOVAL/INSTALLATION

id071100800500

Warning

•  Handling the air bag module improperly can accidentally deploy the air bag module, which may seriously injure you. Read the air bag system service warnings and cautions before handling the air bag module.

(See AIR BAG SYSTEM SERVICE WARNINGS [STANDARD DEPLOYMENT CONTROL SYSTEM].)

(See AIR BAG SYSTEM SERVICE CAUTIONS [STANDARD DEPLOYMENT CONTROL SYSTEM].)

(See AIR BAG SYSTEM SERVICE WARNINGS [TWO-STEP DEPLOYMENT CONTROL SYSTEM].)

(See AIR BAG SYSTEM SERVICE CAUTIONS [TWO-STEP DEPLOYMENT CONTROL SYSTEM].)

Note

•  When removing the driver-side air bag module, it is necessary to rotate the steering wheel. If the ignition has been switched off with the driver's door closed, the steering wheel will be locked. Perform the procedure from Steps 1-3 so that the steering wheel will not be locked.

1.  Switch the ignition ON (engine off or on).

2.  Open the driver's door.

3.  Switch the ignition off.

4.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

5.  Remove the following parts:

(1)  Plug hole plate (SKYACTIV-G 2.0, SKYACTIV-G 2.5, SKYACTIV-G 2.5T) (See PLUG HOLE PLATE REMOVAL/INSTALLATION [WITH CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].) (See PLUG HOLE PLATE REMOVAL/INSTALLATION [WITHOUT CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].) (See PLUG HOLE PLATE REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)

(2)  Engine cover (SKYACTIV-D 2.2) (See ENGINE COVER REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)

(3)  Windshield wiper arm and blade (See WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION.)

(4)  Cowl grille (See COWL GRILLE REMOVAL/INSTALLATION.)

(5)  Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(6)  Front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(7)  A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)

(8)  Driver-side air bag module (See DRIVER-SIDE AIR BAG MODULE REMOVAL [TWO-STEP DEPLOYMENT CONTROL SYSTEM].) (See DRIVER-SIDE AIR BAG MODULE INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM].) (See DRIVER-SIDE AIR BAG MODULE REMOVAL [STANDARD DEPLOYMENT CONTROL SYSTEM].) (See DRIVER-SIDE AIR BAG MODULE INSTALLATION [STANDARD DEPLOYMENT CONTROL SYSTEM].)

(9)  Steering wheel (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION.)

(10)  Upper column cover (See COLUMN COVER REMOVAL/INSTALLATION.)

(11)  Lower column cover (See COLUMN COVER REMOVAL/INSTALLATION.)

(12)  Lower decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(13)  Upper decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(14)  Meter hood No.1 (See METER HOOD REMOVAL/INSTALLATION.)

(15)  Center display component (with center display) (See CENTER DISPLAY REMOVAL/INSTALLATION.)

(16)  Instrument cluster (See INSTRUMENT CLUSTER REMOVAL/INSTALLATION.)

(17)  Meter hood No.2 (with Active driving display) (See METER HOOD REMOVAL/INSTALLATION.)

(18)  Active driving display (with Active driving display) (See ACTIVE DRIVING DISPLAY REMOVAL/INSTALLATION.)

(19)  Console side panel (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION.)

(20)  Switch panel (See SWITCH PANEL REMOVAL/INSTALLATION.)

(21)  Cup holder (See CUP HOLDER REMOVAL/INSTALLATION.)

(22)  Selector lever knob (ATX) (See SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION.)

(23)  Shift lever knob (MTX) (See SHIFT LEVER REMOVAL/INSTALLATION [C66M-R, C66MX-R].) (See SHIFT LEVER REMOVAL/INSTALLATION [D66M-R, D66MX-R].)

(24)  Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)

(25)  Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION.)

(26)  Side wall (See SIDE WALL REMOVAL/INSTALLATION.)

(27)  Rear console (See REAR CONSOLE REMOVAL/INSTALLATION.)

(28)  Bonnet release lever (See BONNET RELEASE LEVER AND RELEASE CABLE REMOVAL/INSTALLATION.)

(29)  Fuel-filler lid opener lever (See FUEL-FILLER LID OPENER AND LEVER REMOVAL/INSTALLATION.)

(30)  Driver-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION.)

(31)  Center lower panel (See CENTER LOWER PANEL REMOVAL/INSTALLATION.)

(32)  Indicator unit (See INDICATOR UNIT REMOVAL/INSTALLATION.)

(33)  Climate control unit (See CLIMATE CONTROL UNIT REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].) (See CLIMATE CONTROL UNIT REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER].)

(34)  Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

(35)  Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION.)

(36)  Passenger-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION.)

(37)  Clock spring (See CLOCK SPRING REMOVAL/INSTALLATION [STANDARD DEPLOYMENT CONTROL SYSTEM].) (See CLOCK SPRING REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM].)

(38)  Wiper and washer switch (See WIPER AND WASHER SWITCH REMOVAL/INSTALLATION.)

(39)  Light switch (See LIGHT SWITCH REMOVAL/INSTALLATION.)

(40)  Steering wheel and column component (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION.)

(41)  Rear vent duct (with rear vent duct) (See REAR VENT DUCT REMOVAL/INSTALLATION.)

(42)  Selector lever component (ATX) (See SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION.)

(43)  Shift lever component (MTX) (See SHIFT LEVER REMOVAL/INSTALLATION [C66M-R, C66MX-R].) (See SHIFT LEVER REMOVAL/INSTALLATION [D66M-R, D66MX-R].)

(44)  Dashboard (See DASHBOARD REMOVAL/INSTALLATION.)

(45)  Passenger-side front heat duct (See FRONT HEAT DUCT REMOVAL/INSTALLATION.)

6.  Remove the nuts.

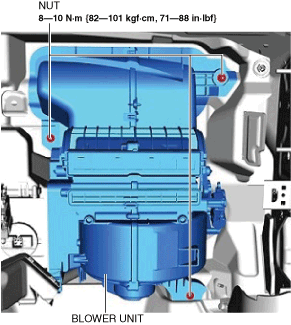

ac5wzw00008778

7.  Remove the blower unit.

8.  Install in the reverse order of removal.
