ANTENNA FEEDER NO.2 INSPECTION
id092000812500
1. Refer to the headliner removal/installation and perform the preparation before servicing. (See HEADLINER REMOVAL/INSTALLATION.)
2. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)
3. Remove the following parts:
- (1) A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)
-
- (2) Front map light (See FRONT MAP LIGHT REMOVAL/INSTALLATION.)
-
- (3) Sunvisor (See SUNVISOR REMOVAL/INSTALLATION.)
-
- (4) Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)
-
- (5) Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION.)
-
- (6) Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)
-
- (7) B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)
-
- (8) Adjust anchor cover on the front seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)
-
- (9) Upper anchor installation bolt on the front seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)
-
- (10) B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION.)
-
- (11) Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION.)
-
- (12) Trunk side pocket (See TRUNK SIDE POCKET REMOVAL/INSTALLATION.)
-
- (13) Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)
-
- (14) Bass-box (with Bose®) (See BASS-BOX REMOVAL/INSTALLATION.)
-
- (15) Third-row seat cushion (See THIRD-ROW SEAT CUSHION REMOVAL/INSTALLATION.)
-
- (16) Third-row seat back component (See THIRD-ROW SEAT BACK COMPONENT REMOVAL/INSTALLATION.)
-
- (17) Trunk side trim (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)
-
- (18) D-pillar trim (See D-PILLAR TRIM REMOVAL/INSTALLATION.)
-
- (19) C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION.)
-
4. Move the headliner and set it on front seats and second-row seats. (See ANTENNA FEEDER NO.2 REMOVAL/INSTALLATION.)

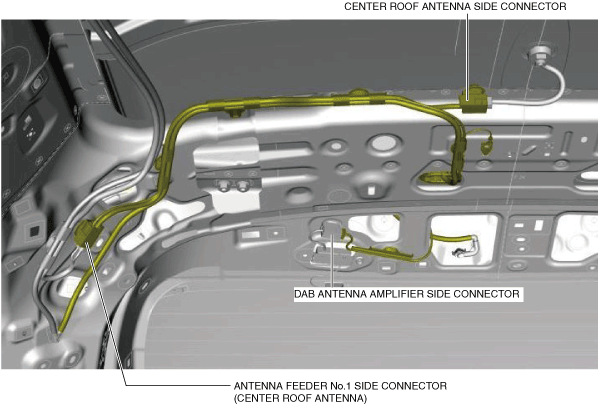

5. Disconnect antenna feeder No.1 side connector (center roof antenna).
6. Disconnect antenna feeder No.1 side connector (DAB antenna).
7. Disconnect center roof antenna side connector.

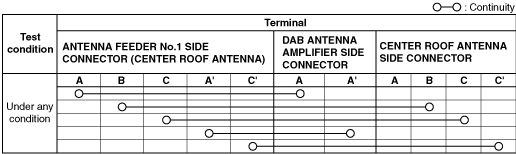

8. Verify that the continuity between antenna feeder No.2 terminals is as indicated in the table.
-
