AUTOMATIC TRANSAXLE LOCATION INDEX [AY6A-EL, AY6AX-EL]

id0517k3296600

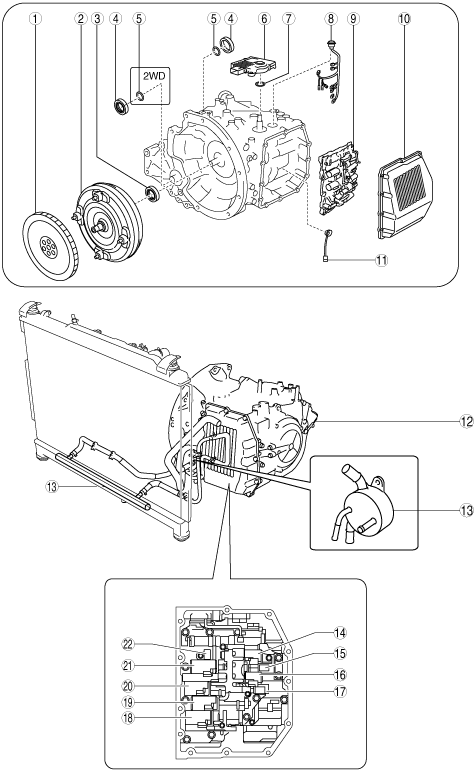

ac9wzw00001934

1	Drive plate (See DRIVE PLATE REMOVAL/INSTALLATION [AY6A-EL, AY6AX-EL].)
2	Torque converter (See TORQUE CONVERTER REMOVAL/INSTALLATION [AY6A-EL, AY6AX-EL].)
3	Oil seal (oil pump) (See OIL SEAL (OIL PUMP) REPLACEMENT [AY6A-EL, AY6AX-EL].)
4	Oil seal (differential) (See OIL SEAL (DIFFERENTIAL) REPLACEMENT [AY6A-EL, AY6AX-EL].)
5	Differential gear O-ring (See DIFFERENTIAL GEAR O-RING REPLACEMENT [AY6A-EL, AY6AX-EL].)
6	TCM (See TRANSAXLE RANGE (TR) SWITCH INSPECTION [AY6A-EL, AY6AX-EL].) (See TRANSAXLE RANGE (TR) SWITCH REMOVAL/INSTALLATION [AY6A-EL, AY6AX-EL].) (See TCM INSPECTION [AY6A-EL, AY6AX-EL].) (See TCM REMOVAL/INSTALLATION [AY6A-EL, AY6AX-EL].) (See TCM NEUTRAL POSITION LEARNING [AY6A-EL, AY6AX-EL].)
7	Oil seal (manual shaft) (See OIL SEAL (MANUAL SHAFT) REPLACEMENT [AY6A-EL, AY6AX-EL].)
8	Coupler component (See COUPLER COMPONENT INSPECTION [AY6A-EL, AY6AX-EL].) (See COUPLER COMPONENT REMOVAL/INSTALLATION [AY6A-EL, AY6AX-EL].)
9	Control valve body (See CONTROL VALVE BODY REMOVAL/INSTALLATION [AY6A-EL, AY6AX-EL].)
10	Control valve body cover (See CONTROL VALVE BODY COVER REPLACEMENT [AY6A-EL, AY6AX-EL].)
11	Input/turbine speed sensor (See INPUT/TURBINE SPEED SENSOR INSPECTION [AY6A-EL, AY6AX-EL].) (See INPUT/TURBINE SPEED SENSOR REMOVAL/INSTALLATION [AY6A-EL, AY6AX-EL].)
12	Automatic transaxle (See MECHANICAL SYSTEM TEST [AY6A-EL, AY6AX-EL].) (See ROAD TEST [AY6A-EL, AY6AX-EL].) (See AUTOMATIC TRANSAXLE FLUID (ATF) INSPECTION [AY6A-EL, AY6AX-EL].) (See AUTOMATIC TRANSAXLE FLUID (ATF) REPLACEMENT [AY6A-EL, AY6AX-EL].) (See AUTOMATIC TRANSAXLE FLUID (ATF) LEVEL ADJUSTMENT [AY6A-EL, AY6AX-EL].) (See AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION [AY6A-EL, AY6AX-EL].) (See AUTOMATIC TRANSAXLE CLEANING [AY6A-EL, AY6AX-EL].) (See AUTOMATIC TRANSAXLE DISASSEMBLY/ASSEMBLY PRECAUTION [AY6A-EL, AY6AX-EL].)
13	Oil cooler (See OIL COOLER FLUSHING [AY6A-EL, AY6AX-EL].) (See OIL COOLER REMOVAL/INSTALLATION [AY6A-EL, AY6AX-EL].)
14	TCC control solenoid (See TORQUE CONVERTER CLUTCH (TCC) CONTROL SOLENOID INSPECTION [AY6A-EL, AY6AX-EL].) (See TORQUE CONVERTER CLUTCH (TCC) CONTROL SOLENOID REMOVAL/INSTALLATION [AY6A-EL, AY6AX-EL].)
15	Shift solenoid B (See SHIFT SOLENOID B INSPECTION [AY6A-EL, AY6AX-EL].) (See SHIFT SOLENOID B REMOVAL/INSTALLATION [AY6A-EL, AY6AX-EL].)
16	Line pressure control solenoid (See LINE PRESSURE CONTROL SOLENOID INSPECTION [AY6A-EL, AY6AX-EL].) (See LINE PRESSURE CONTROL SOLENOID REMOVAL/INSTALLATION [AY6A-EL, AY6AX-EL].)
17	Shift solenoid A (See SHIFT SOLENOID A INSPECTION [AY6A-EL, AY6AX-EL].) (See SHIFT SOLENOID A REMOVAL/INSTALLATION [AY6A-EL, AY6AX-EL].)
18	Shift solenoid F (See SHIFT SOLENOID F INSPECTION [AY6A-EL, AY6AX-EL].) (See SHIFT SOLENOID F REMOVAL/INSTALLATION [AY6A-EL, AY6AX-EL].)
19	Shift solenoid E (See SHIFT SOLENOID E INSPECTION [AY6A-EL, AY6AX-EL].) (See SHIFT SOLENOID E REMOVAL/INSTALLATION [AY6A-EL, AY6AX-EL].)
20	Shift solenoid D (See SHIFT SOLENOID D INSPECTION [AY6A-EL, AY6AX-EL].) (See SHIFT SOLENOID D REMOVAL/INSTALLATION [AY6A-EL, AY6AX-EL].)
21	Shift solenoid C (See SHIFT SOLENOID C INSPECTION [AY6A-EL, AY6AX-EL].) (See SHIFT SOLENOID C REMOVAL/INSTALLATION [AY6A-EL, AY6AX-EL].)
22	TFT sensor (See TRANSAXLE FLUID TEMPERATURE (TFT) SENSOR INSPECTION [AY6A-EL, AY6AX-EL].) (See TRANSAXLE FLUID TEMPERATURE (TFT) SENSOR REMOVAL/INSTALLATION [AY6A-EL, AY6AX-EL].)

ac9uuw00003903

1	Converter housing (See CONVERTER HOUSING REMOVAL/INSTALLATION [AY6A-EL, AY6AX-EL].)
2	Breather hose (See BREATHER COMPONENT REMOVAL/INSTALLATION [AY6A-EL, AY6AX-EL].)
3	B1 break piston cover (See B1 BRAKE PISTON COVER REMOVAL/INSTALLATION [AY6A-EL, AY6AX-EL].)
4	Oil strainer (See OIL STRAINER REMOVAL/INSTALLATION [AY6A-EL, AY6AX-EL].)
5	VSS (See VEHICLE SPEED SENSOR (VSS) INSPECTION [AY6A-EL, AY6AX-EL].) (See VEHICLE SPEED SENSOR (VSS) REMOVAL/INSTALLATION [AY6A-EL, AY6AX-EL].)
6	Front planetary gear component and input shaft (See FRONT PLANETARY GEAR COMPONENT AND INPUT SHAFT REMOVAL/INSTALLATION [AY6A-EL, AY6AX-EL].) (See FRONT PLANETARY GEAR COMPONENT AND INPUT SHAFT DISASSEMBLY/ASSEMBLY [AY6A-EL, AY6AX-EL].)
7	Oil pump (See OIL PUMP REMOVAL/INSTALLATION [AY6A-EL, AY6AX-EL].) (See OIL PUMP DISASSEMBLY/ASSEMBLY [AY6A-EL, AY6AX-EL].)
