AIR BAG MID-WIRING HARNESS INSTALLATION

id081000804500

Warning

•  Handling the air bag module improperly can accidentally deploy the air bag module, which may seriously injure you. Read the air bag system service warnings and cautions before handling the air bag module. (See AIR BAG SYSTEM SERVICE WARNINGS.) (See AIR BAG SYSTEM SERVICE CAUTIONS.)

Note

•  When replacing only the air bag wiring harness inside the dashboard without replacing the passenger-side air bag module, do not replace the existing wiring harness, and install a new air bag mid-wiring harness according to the procedure, “Dashboard Not Removed”. (See Dashboard Not Removed.)

•  Do not reuse the existing wiring harness of a passenger-side air bag module which has deployed. Install a new air bag mid-wiring harness according to the procedure, “Dashboard Removed”. (See Dashboard Removed.)

Dashboard Not Removed

Note

•  When installing the mid-wiring harness, install it along the vehicle wiring harness.

1.  Switch the ignition to off.

2.  Disconnect the negative battery cable and wait for 1 min or more.

3.  Remove the following parts:

(1)  Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

(2)  Glove compartment cover (R.H.D.) (See GLOVE COMPARTMENT COVER REMOVAL/INSTALLATION.)

(3)  Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION.)

(4)  Rear console (L.H.D.) (See REAR CONSOLE REMOVAL/INSTALLATION.)

(5)  Side wall (See SIDE WALL REMOVAL/INSTALLATION.)

(6)  Shift lever knob (MTX)

(7)  Front console component (See FRONT CONSOLE COMPONENT REMOVAL/INSTALLATION.)

(8)  Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(9)  Front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(10)  Bonnet release lever (See BONNET LATCH AND RELEASE LEVER REMOVAL/INSTALLATION.)

(11)  Driver-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION.)

(12)  Driver-side air bag module (See DRIVER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION.)

(13)  Steering wheel (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [L.H.D.].) (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [R.H.D.].)

(14)  Column cover (See COLUMN COVER REMOVAL/INSTALLATION.)

(15)  Shift lever (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [F35M-R].) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [B65M-R].)

(16)  Selector lever (ATX) (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION.)

4.  Using tie-wraps or tape, install the mid-wiring harness as shown in the figure.

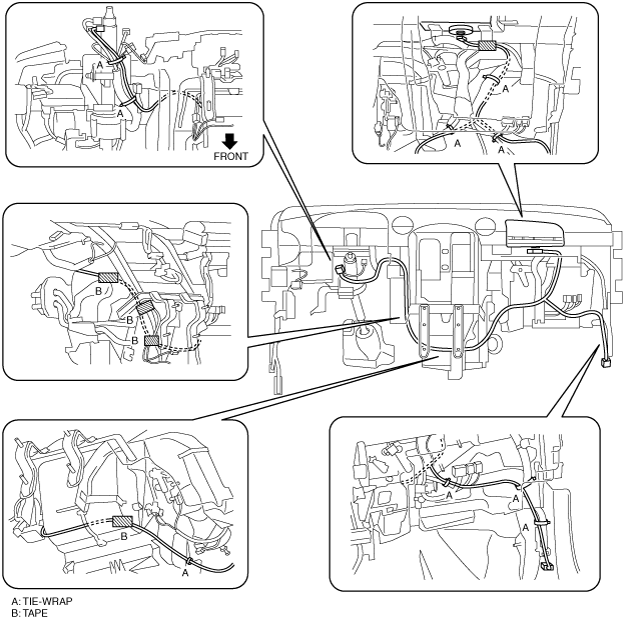

L.H.D.

am2zzw00003450

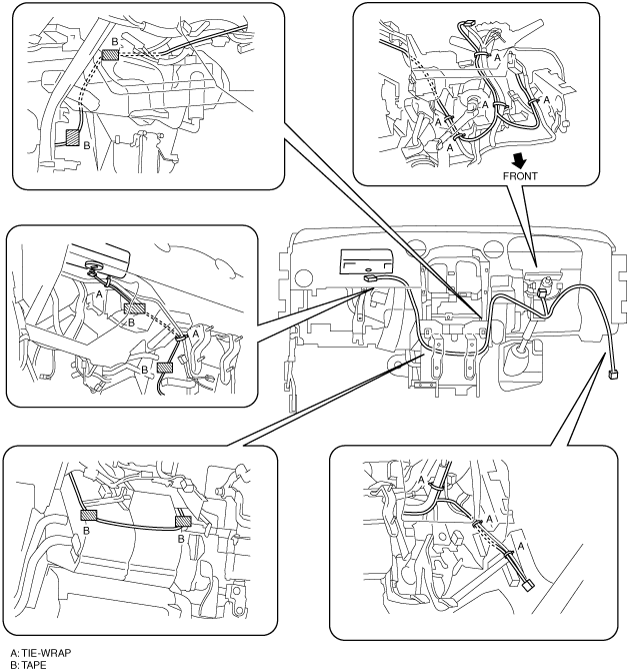

R.H.D.

am2zzw00003451

Dashboard Removed

Note

•  When installing the mid-wiring harness, install it along the vehicle wiring harness.

1.  Switch the ignition to off.

2.  Disconnect the negative battery cable and wait for 1 min or more.

3.  Remove the following parts:

(1)  Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

(2)  Glove compartment cover (R.H.D.) (See GLOVE COMPARTMENT COVER REMOVAL/INSTALLATION.)

(3)  Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION.)

(4)  Heat duct (passenger-side) (See HEAT DUCT COMPONENT REMOVAL/INSTALLATION.)

(5)  Rear console (L.H.D.) (See REAR CONSOLE REMOVAL/INSTALLATION.)

(6)  Shift lever knob (MTX)

(7)  Side wall (See SIDE WALL REMOVAL/INSTALLATION.)

(8)  Front console component (See FRONT CONSOLE COMPONENT REMOVAL/INSTALLATION.)

(9)  Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(10)  Front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(11)  Bonnet release lever (See BONNET LATCH AND RELEASE LEVER REMOVAL/INSTALLATION.)

(12)  Driver-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION.)

(13)  Driver-side air bag module (See DRIVER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION.)

(14)  Steering wheel (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [L.H.D.].) (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [R.H.D.].)

(15)  Column cover (See COLUMN COVER REMOVAL/INSTALLATION.)

(16)  Meter hood (See METER HOOD REMOVAL/INSTALLATION.)

(17)  Instrument cluster (See INSTRUMENT CLUSTER REMOVAL/INSTALLATION.)

(18)  Combination switch (See COMBINATION SWITCH REMOVAL/INSTALLATION.))

(19)  Passenger-side lower panel (L.H.D.) (See LOWER PANEL REMOVAL/INSTALLATION.)

(20)  Center panel unit (vehicles with audio unit) (See CENTER PANEL UNIT REMOVAL/INSTALLATION.)

(21)  Center panel (vehicles without audio unit) (See CENTER PANEL REMOVAL/INSTALLATION.)

(22)  Climate control unit (See CLIMATE CONTROL UNIT REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].) (See CLIMATE CONTROL UNIT REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER].)

(23)  Shift lever (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [F35M-R].) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [B65M-R].)

(24)  Selector lever (ATX) (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION.)

(25)  Interlock cable (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION.)

(26)  Passenger-side lower panel (R.H.D.) (See LOWER PANEL REMOVAL/INSTALLATION.)

(27)  Side panel (See SIDE PANEL REMOVAL/INSTALLATION.)

(28)  A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)

(29)  Windshield wiper arm and blade (SeeWINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION.)

(30)  Cowl grille (See COWL GRILLE REMOVAL/INSTALLATION.)

(31)  Sail garnish (See SAIL GARNISH REMOVAL/INSTALLATION.)

(32)  Windshield wiper motor (L.H.D.) (See WINDSHIELD WIPER MOTOR REMOVAL/INSTALLATION.)

(33)  Steering shaft cover (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [L.H.D.].) (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [R.H.D.].)

(34)  Steering shaft (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [L.H.D.].) (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [R.H.D.].)

(35)  Dashboard (See DASHBOARD REMOVAL/INSTALLATION.)

4.  Using tie-wraps or tape, install the mid-wiring harness as shown in the figure.

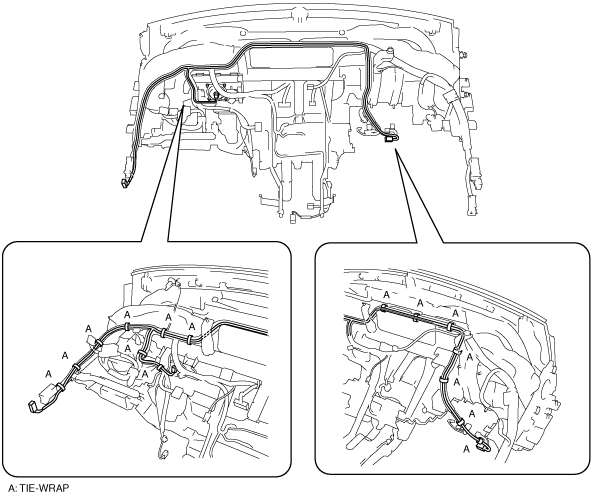

L.H.D.

am2zzw00003452

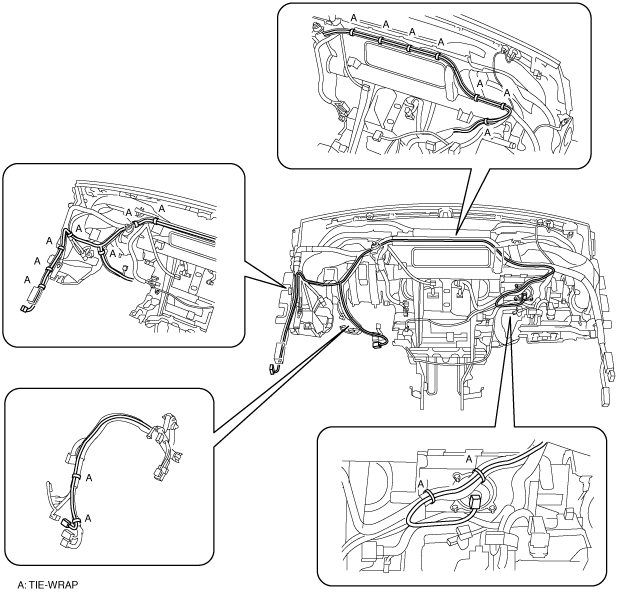

R.H.D.

am2zzw00003453
