ANTENNA FEEDER NO.1 REMOVAL/INSTALLATION
id092000812200
1. Disconnect the negative battery cable.
2. Remove the following parts:
- (1) Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)
- (2) Glove compartment cover (R.H.D.) (See GLOVE COMPARTMENT COVER REMOVAL/INSTALLATION.)
- (3) Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION.)
- (4) Heat duct (passenger side) (See HEAT DUCT COMPONENT REMOVAL/INSTALLATION.)
- (5) Rear console (L.H.D.) (See REAR CONSOLE REMOVAL/INSTALLATION.)
- (6) Shift lever knob (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [F35M-R].) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [B65M-R].)
- (7) Side wall (See SIDE WALL REMOVAL/INSTALLATION.)
- (8) Front console component (See FRONT CONSOLE COMPONENT REMOVAL/INSTALLATION.)
- (9) Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)
- (10) Front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)
- (11) Bonnet release lever (See BONNET LATCH AND RELEASE LEVER REMOVAL/INSTALLATION.)
- (12) Driver-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION.)
- (13) Driver-side air bag module (See DRIVER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION.)
- (14) Steering wheel (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [L.H.D.].) (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [R.H.D.].)
- (15) Column cover (See COLUMN COVER REMOVAL/INSTALLATION.)
- (16) Meter hood (See METER HOOD REMOVAL/INSTALLATION.)
- (17) Instrument cluster (See INSTRUMENT CLUSTER REMOVAL/INSTALLATION.)
- (18) Combination switch (See COMBINATION SWITCH REMOVAL/INSTALLATION.)
- (19) Center panel unit (vehicles with audio unit) (See CENTER PANEL UNIT REMOVAL/INSTALLATION.)
- (20) Center panel (vehicles without audio unit) (See CENTER PANEL REMOVAL/INSTALLATION.)
- (21) Climate control unit (See CLIMATE CONTROL UNIT REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].) (See CLIMATE CONTROL UNIT REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER].)
- (22) Shift lever (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [F35M-R].) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [B65M-R].)
- (23) Selector lever (ATX/CVT) (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION.) (See CVT (CONTINUOUSLY VARIABLE TRANSAXLE) SHIFT MECHANISM REMOVAL/INSTALLATION.)
- (24) Interlock cable (ATX/CVT) (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION.) (See CVT (CONTINUOUSLY VARIABLE TRANSAXLE) SHIFT MECHANISM REMOVAL/INSTALLATION.)
- (25) Passenger-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION.)
- (26) Side panel (See SIDE PANEL REMOVAL/INSTALLATION.)
- (27) A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)
- (28) Windshield wiper arm and blade (See WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION.)
- (29) Cowl grille (See COWL GRILLE REMOVAL/INSTALLATION.)
- (30) Sail garnish (See SAIL GARNISH REMOVAL/INSTALLATION.)
- (31) Windshield wiper motor (L.H.D.) (See WINDSHIELD WIPER MOTOR REMOVAL/INSTALLATION.)
- (32) Steering shaft cover (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [L.H.D.].) (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [R.H.D.].)
- (33) Steering shaft (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [L.H.D.].) (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [R.H.D.].)
- (34) Dashboard (See DASHBOARD REMOVAL/INSTALLATION.) (See DASHBOARD REMOVAL/INSTALLATION [3HB].)

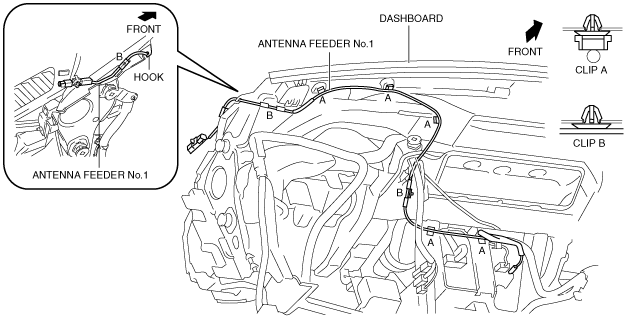

3. Remove clips A and B.
4. Remove the antenna feeder No.1 from the dashboard hook.
5. Remove antenna feeder No.1.
6. Install in the reverse order of removal.
L.H.D.
R.H.D.
