FRONT DRAIN HOSE REMOVAL/INSTALLATION [(E)]

id0915004438x2

L.H.D.

1. Position the front seat back to the fully reclined position and slide the front seat to its furthest rearward position.

2. Disconnect the negative battery terminal and wait for 1 min or more. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

3. Remove the following parts:

(1) A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)

(2) Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(3) Front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(4) Passenger-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(5) Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

(6) Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION.)

(7) Passenger-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION [(E)].)

(8) Driver-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(9) Hood release lever (See HOOD RELEASE LEVER AND RELEASE CABLE REMOVAL/INSTALLATION [(E)].)

(10) Shift lever knob (MTX) (See SHIFT LEVER REMOVAL/INSTALLATION [C66M-R].) (See SHIFT LEVER REMOVAL/INSTALLATION [F66M-R].)

(11) Selector lever knob (ATX) (See SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION.)

(12) Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)

(13) Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION.)

(14) Cup holder (See CUP HOLDER REMOVAL/INSTALLATION.)

(15) Side wall (See SIDE WALL REMOVAL/INSTALLATION.)

(16) Rear console (See REAR CONSOLE REMOVAL/INSTALLATION [(E)].)

(17) Driver-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION [(E)].)

(18) Driver-side knee air bag module (See KNEE AIR BAG MODULE REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM].) (See KNEE AIR BAG MODULE REMOVAL/INSTALLATION [STANDARD DEPLOYMENT CONTROL SYSTEM].)

(19) Center lower panel (See LOWER PANEL REMOVAL/INSTALLATION [(E)].)

(20) Driver-side air bag module (See DRIVER-SIDE AIR BAG MODULE REMOVAL [TWO-STEP DEPLOYMENT CONTROL SYSTEM].) (See DRIVER-SIDE AIR BAG MODULE INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM].) (See DRIVER-SIDE AIR BAG MODULE REMOVAL [STANDARD DEPLOYMENT CONTROL SYSTEM].) (See DRIVER-SIDE AIR BAG MODULE INSTALLATION [STANDARD DEPLOYMENT CONTROL SYSTEM].)

(21) Steering wheel (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [(E)].)

(22) Upper column cover (See COLUMN COVER REMOVAL/INSTALLATION.)

(23) Lower column cover (See COLUMN COVER REMOVAL/INSTALLATION.)

(24) Clock spring (See CLOCK SPRING REMOVAL/INSTALLATION [STANDARD DEPLOYMENT CONTROL SYSTEM].) (See CLOCK SPRING REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM].)

(25) Light switch (See LIGHT SWITCH REMOVAL/INSTALLATION [(E)].)

(26) Wiper and washer switch (See WIPER AND WASHER SWITCH REMOVAL/INSTALLATION [(E)].)

(27) Joint cover (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [(E)].)

(28) Steering shaft (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [(E)].)

(29) Instrument cluster (See INSTRUMENT CLUSTER REMOVAL/INSTALLATION.)

(30) Center speaker grille (See SPEAKER GRILLE REMOVAL/INSTALLATION.)

(31) Center display component (See CENTER DISPLAY REMOVAL/INSTALLATION.)

(32) Connectivity master unit (CMU) (See CONNECTIVITY MASTER UNIT (CMU) REMOVAL/INSTALLATION.)

(33) Audio panel (with audio panel) (See AUDIO PANEL REMOVAL/INSTALLATION [(E)].)

(34) CD player (with CD player) (See CD PLAYER REMOVAL/INSTALLATION.)

(35) DVD/CD player (with DVD/CD player) (See DVD/CD PLAYER REMOVAL/INSTALLATION.)

(36) Climate control unit (See CLIMATE CONTROL UNIT REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER (E)].) (See CLIMATE CONTROL UNIT REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER (E)].)

(37) Dashboard side cover (See DASHBOARD SIDE COVER REMOVAL/INSTALLATION.)

(38) Rear heat duct No.1 (See REAR HEAT DUCT REMOVAL/INSTALLATION [(E)].)

(39) Windshield wiper arm and blade (See WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION.)

(40) Cowl grille (See COWL GRILLE REMOVAL/INSTALLATION.)

(41) Dashboard (See DASHBOARD REMOVAL [(E)].) (See DASHBOARD INSTALLATION [(E)].)

(42) Blower unit (passenger side) (See BLOWER UNIT REMOVAL/INSTALLATION [(E)].)

(43) Passenger-side cowl side woofer (passenger side) (See COWL SIDE WOOFER REMOVAL/INSTALLATION [(E)].)

(44) Driver-side cowl side woofer (driver side) (See COWL SIDE WOOFER REMOVAL/INSTALLATION [(E)].)

(45) Front map light (See FRONT MAP LIGHT REMOVAL/INSTALLATION [(E)].)

(46) Sunvisor (See SUNVISOR REMOVAL/INSTALLATION.)

(47) Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION.)

(48) Front seat belt lower anchor (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

(49) B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION.)

(50) Rear package tray (5HB) (See REAR PACKAGE TRAY REMOVAL/INSTALLATION.)

(51) Trunk side upper trim (5HB) (See TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION.)

(52) C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION.)

(53) Rear console bracket No.1 (See REAR CONSOLE REMOVAL/INSTALLATION [(E)].)

(54) Headliner (See HEADLINER REMOVAL/INSTALLATION [(E)].)

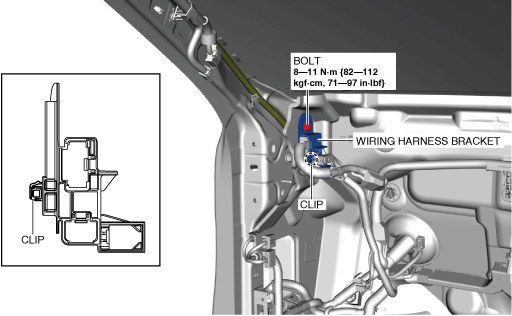

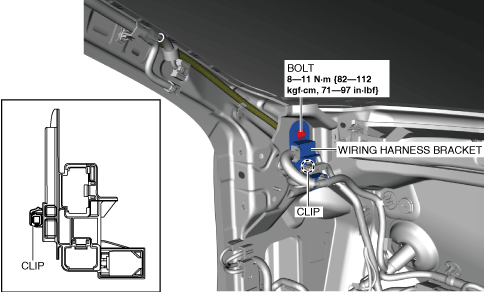

4. Remove the bolt.

am3zzw00029710

5. Remove the wiring harness bracket while detaching the clip.

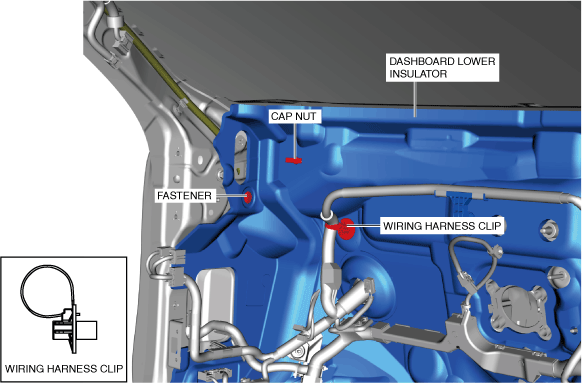

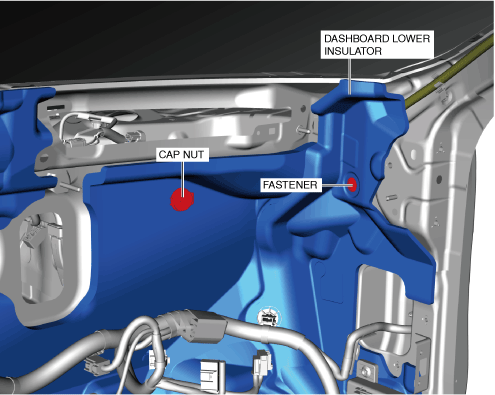

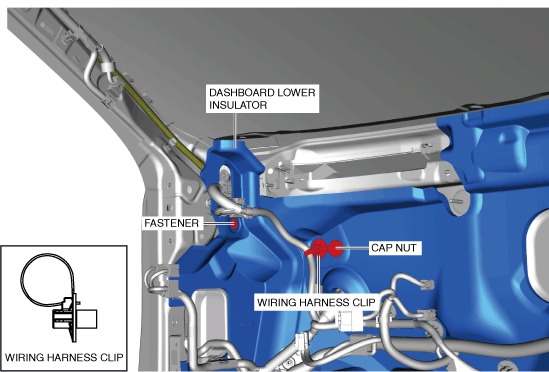

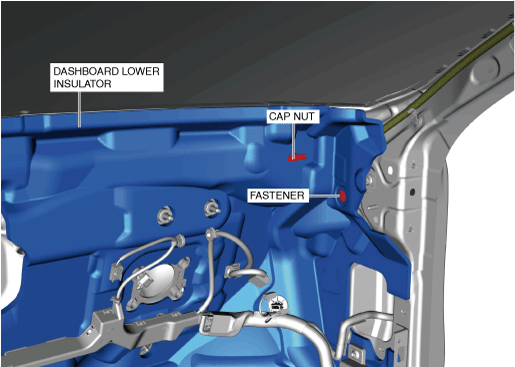

6. Remove the fastener and cap nut.

am3uuw00015081

am3uuw00015082

7. Remove the wiring harness clip. (LH)

8. Set the dashboard lower insulator aside.

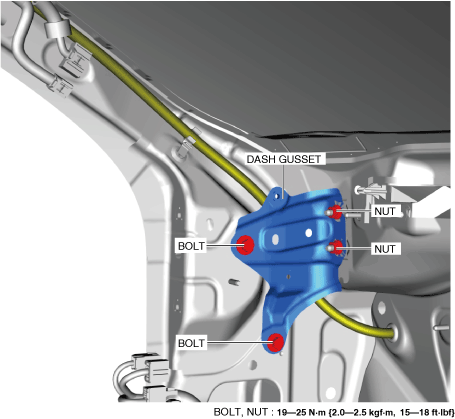

9. Remove the bolts and nuts.

am3zzw00022609

10. Remove the dash gusset.

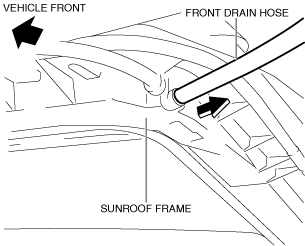

11. Disconnect the front drain hose from the sunroof frame.

am3zzw00022610

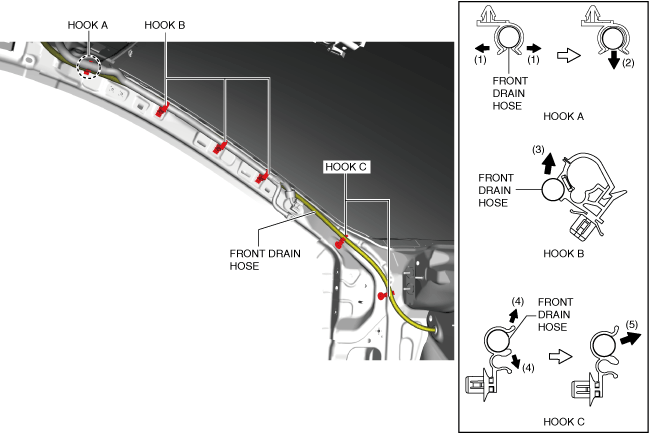

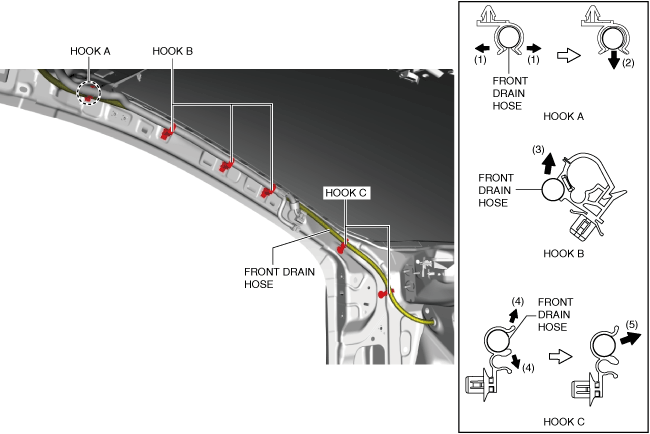

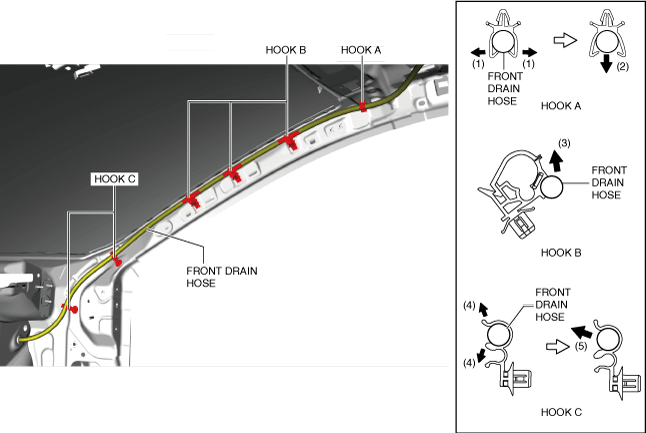

12. Spread hook A in the directions of arrows (1), pull the front drain hose in the direction of arrow (2), and remove it from hook A.

am3zzw00022611

am3zzw00022612

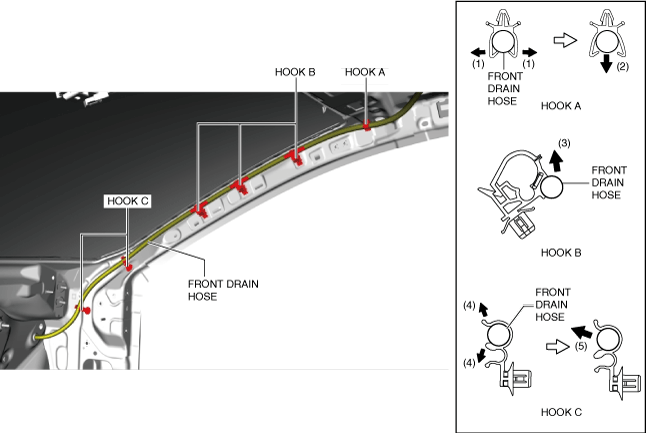

13. Remove the front drain hose in the direction of arrow (3) from hooks B.

14. Spread hooks C in the directions of arrows (4), pull the front drain hose in the direction of arrow (5), and remove it from hook C.

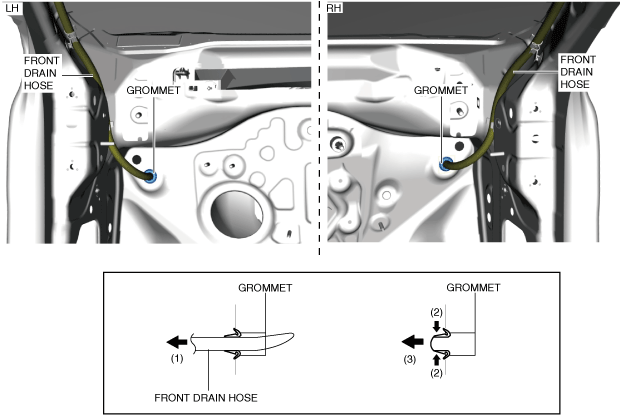

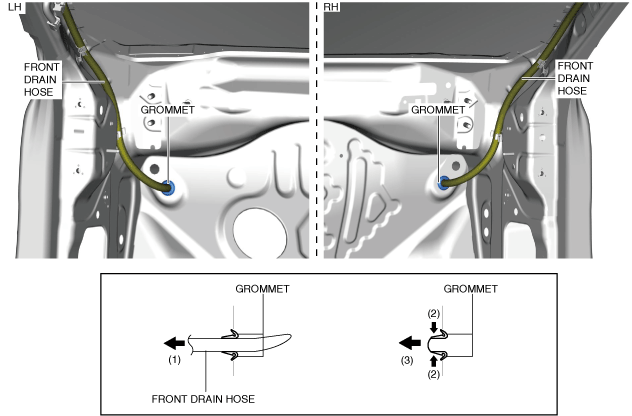

15. Remove the front drain hose in the direction of arrow (1) from the grommet.

am3zzw00022613

16. Remove the grommet in the direction of arrows (2), (3) shown in the figure.

17. Remove the front drain hose.

18. Install in the reverse order of removal.

R.H.D.
