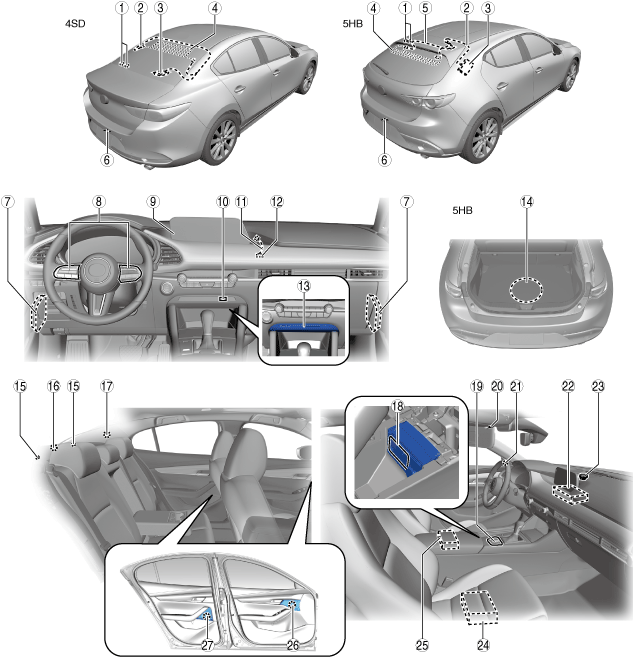

ENTERTAINMENT LOCATION INDEX [(E)]

id0920008001x2

am3zzw00029809

1	Condenser (See CONDENSER REMOVAL/INSTALLATION.)
2	Antenna feeder No.1 Antenna amplifier (4SD) DAB antenna amplifier (4SD) (with DAB antenna amplifier) (See ANTENNA FEEDER NO.1 REMOVAL/INSTALLATION [(E)].) (See ANTENNA AMPLIFIER REMOVAL/INSTALLATION.) (See DAB ANTENNA AMPLIFIER REMOVAL/INSTALLATION.) (See DAB ANTENNA AMPLIFIER INSPECTION.)
3	Remote tuner (RT) (See REMOTE TUNER (RT) REMOVAL/INSTALLATION.) (See REMOTE TUNER (RT) INSPECTION.)
4	Glass antenna (See GLASS ANTENNA INSPECTION.)
5	Antenna feeder No.2 (5HB) Antenna amplifier (5HB) DAB antenna amplifier (5HB) (with DAB antenna amplifier) (See ANTENNA FEEDER NO.2 REMOVAL/INSTALLATION.) (See DAB ANTENNA AMPLIFIER REMOVAL/INSTALLATION.)
6	Rear mount camera (See REAR MOUNT CAMERA REMOVAL/INSTALLATION.) (See REAR MOUNT CAMERA INSPECTION.)
7	Cowl side woofer (See COWL SIDE WOOFER REMOVAL/INSTALLATION [(E)].) (See SPEAKER INSPECTION.)
8	Steering switch (See STEERING SWITCH REMOVAL/INSTALLATION.) (See STEERING SWITCH INSPECTION.)
9	Center display (See CENTER DISPLAY REMOVAL/INSTALLATION.)
10	USB port (See USB PORT REMOVAL/INSTALLATION [(E)].) (See USB PORT INSPECTION.)
11	Global positioning system (GPS) antenna feeder (See GLOBAL POSITIONING SYSTEM (GPS) ANTENNA FEEDER REMOVAL/INSTALLATION.)
12	Global positioning system (GPS) antenna (See GLOBAL POSITIONING SYSTEM (GPS) ANTENNA REMOVAL/INSTALLATION.)
13	CD player (with CD player) (See CD PLAYER REMOVAL/INSTALLATION.)
14	Bass-box (with Bose®) (5HB) (See BASS-BOX REMOVAL/INSTALLATION [(E)].) (See SPEAKER INSPECTION.)
15	Rear side speaker (4SD) (with Bose®) (See REAR SPEAKER REMOVAL/INSTALLATION.) (See SPEAKER INSPECTION.)
16	Rear center speaker (with Bose®) (See REAR SPEAKER REMOVAL/INSTALLATION.) (See SPEAKER INSPECTION.)
17	Rear side speaker (5HB) (with Bose®) (See REAR SPEAKER REMOVAL/INSTALLATION.) (See SPEAKER INSPECTION.)
18	USB PORT/SD card slot hub (See USB PORT/SD CARD SLOT HUB REMOVAL/INSTALLATION.) (See USB PORT/SD CARD SLOT HUB INSPECTION.)
19	Commander switch (See COMMANDER SWITCH REMOVAL/INSTALLATION.) (See COMMANDER SWITCH INSPECTION.)
20	Microphone (See MICROPHONE REMOVAL/INSTALLATION.) (See MICROPHONE INSPECTION.)
21	Tweeter (See TWEETER REMOVAL/INSTALLATION.) (See SPEAKER INSPECTION.)
22	Connectivity master unit (CMU) /Audio control unit (ACU) /Display audio (DA) (See CONNECTIVITY MASTER UNIT (CMU) REMOVAL/INSTALLATION.) (See CONNECTIVITY MASTER UNIT (CMU) DISASSEMBLY/ASSEMBLY.) (See CONNECTIVITY MASTER UNIT (CMU) INSPECTION.) (See Bluetooth® PAIRING PROCEDURE [(E)].) (See VEHICLE STATUS MONITOR SETTING.)
23	Front center speaker (with Bose®) (See FRONT CENTER SPEAKER REMOVAL/INSTALLATION.) (See SPEAKER INSPECTION.)
24	Audio amplifier (See AUDIO AMPLIFIER REMOVAL/INSTALLATION [(E)].) (See AUDIO AMPLIFIER INSPECTION.)
25	Parking assist unit (optical) (See PARKING ASSIST UNIT (OPTICAL) REMOVAL/INSTALLATION [(E)].) (See PARKING ASSIST UNIT (OPTICAL) INSPECTION.)
26	Front door speaker (See FRONT DOOR SPEAKER REMOVAL/INSTALLATION.) (See SPEAKER INSPECTION.)
27	Rear door speaker (See REAR DOOR SPEAKER REMOVAL/INSTALLATION.) (See SPEAKER INSPECTION.)
